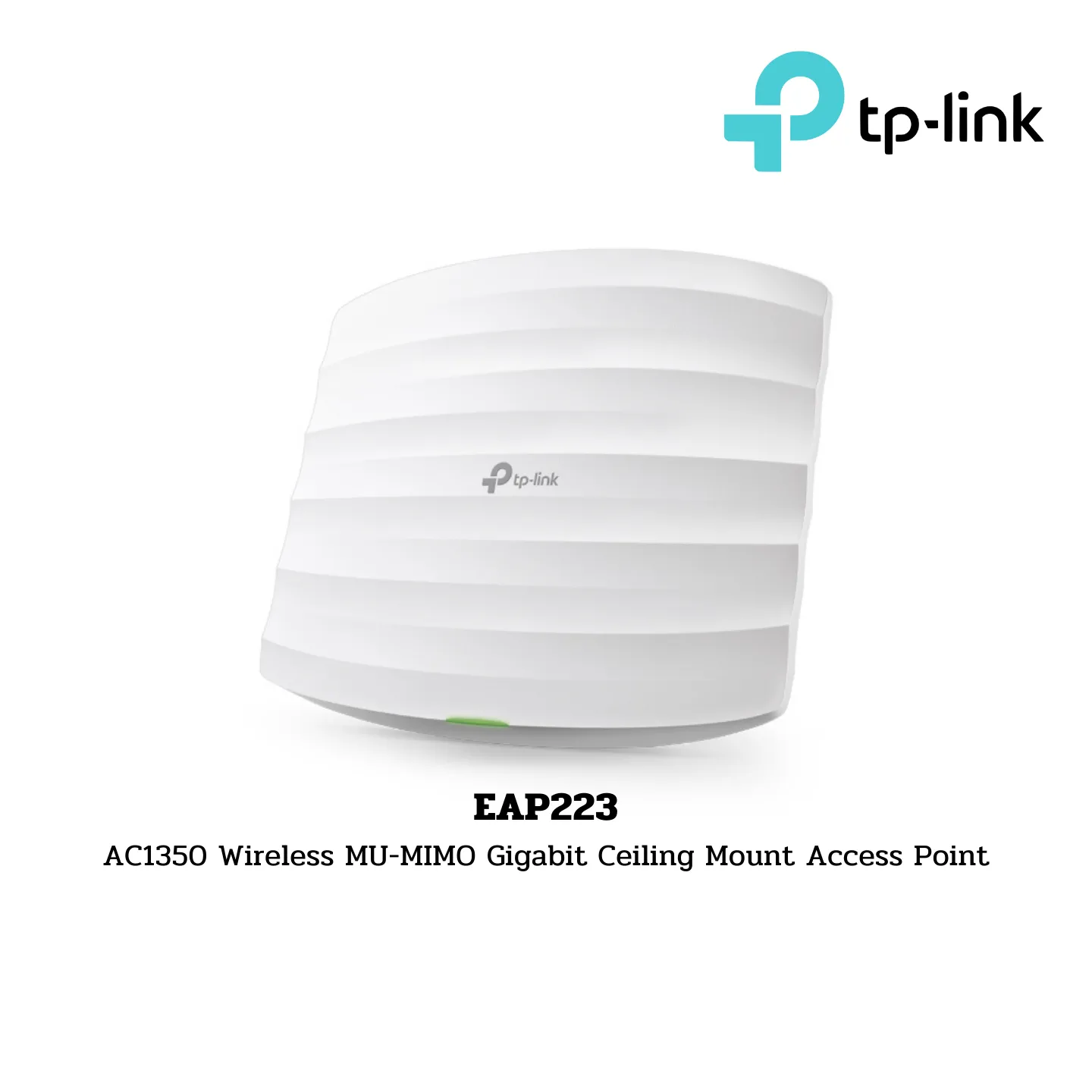

TP-Link Omada Access Points รุ่น EAP223

EAP223
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Brand:

• TP-Link

Port:

• 1× Gigabit RJ45 Port

Speed:

• 450 Mbps at 2.4 GHz + 867 Mbps at 5 GHz

Feature:

• 802.3af PoE
• 3× Internal Antennas
• Mesh
• Seamless Roaming
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

Note: No Power Adapter & PoE Injector included.

Hardware Features:

Interface:

• Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
• Physical Security Lock: Yes
• Button: Reset

Power Supply:

• 802.3af PoE
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)

Power Consumption: 12.6 W

Dimensions (W x D x H): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type: 3 Internal Omni

• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi

Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features:

Coverage: 115㎡ (1250 ft²)

Wireless Client Capacity: 220+**

Concurrent Clients: 220+**

Wireless Standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 450 Mbps

Wireless Functions:

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication*
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support

Transmission Power:

• CE: ≤20 dBm (2.4 GHz, EIRP), ≤23 dBm (5 GHz, EIRP)
• FCC: ≤24 dBm (2.4 GHz), ≤22 dBm (5 GHz)

Management:

Omada App: Yes

Centralized Management:

• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access: Yes, through OC300, OC200, Omada Software Controller, Omada Cloud-Based Controller

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others:

Certification: CE, FCC, RoHS

Package Contents:

• AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
• Mounting Kits
• Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
