TP-Link Omada Access Points รุ่น EAP225-OUTDOOR

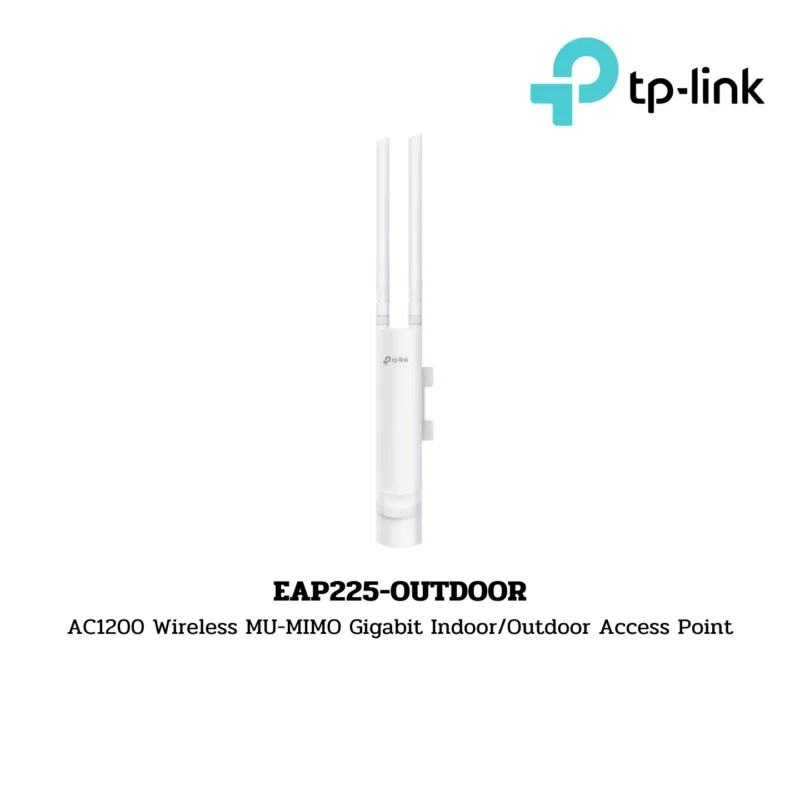

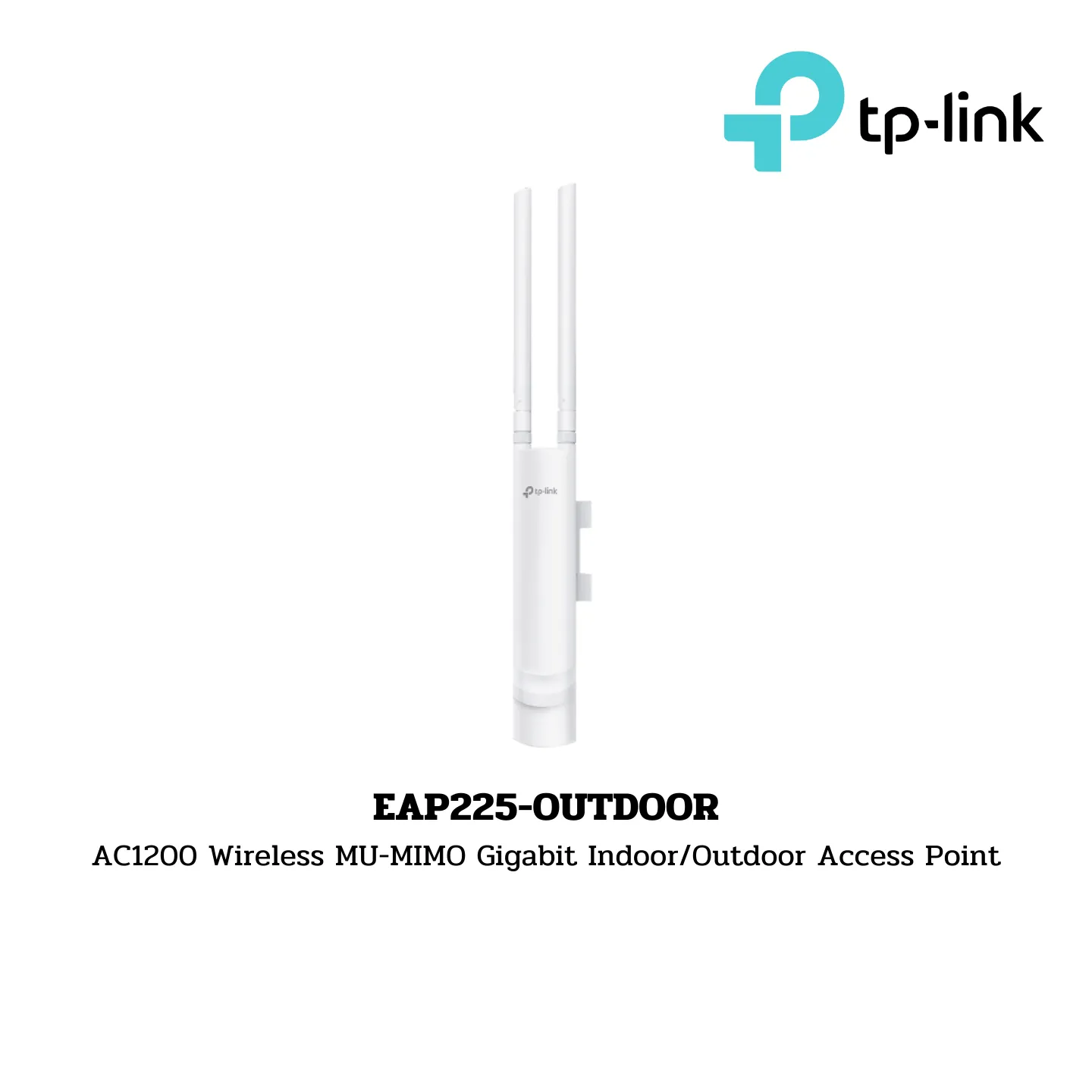

EAP225-OUTDOOR
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Brand:

• TP-Link

Port:

• 1× Gigabit RJ45 Port

Speed:

• 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz

Feature:

• 802.3af PoE and Passive PoE
• 2× External Antennas
• IP65 Weatherproof
• Mesh
• Seamless Roaming
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
• Button: Reset

Power Supply:

• 802.3af/at PoE (Alternative A)
• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 10.5 W

Dimensions (W x D x H):

• 215.7×45×37.7 mm (without antenna & mounting kit)
• 403.8×90.7×55.2 mm (with antenna & mounting kit)

Antenna:

• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 4 dBi

Weatherproof Enclosure: IP65

Mounting: Pole/Wall Mounting (Kits included)

Wireless Features:

Wireless Standards: IEEE 802.11a/b/g/n/ac

Frequency: 2.4 GHz, 5 GHz

Signal Rate:

• 802.11ac:
  • 5G: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
  • 2.4G: 78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions:

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication*
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support

Transmission Power:

• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz)

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Yes

SSH: Yes

Web-based Management: Yes

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others:

Certification: CE, FCC, RoHS

Package Contents:

• Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Rubber Insert
• Waterproof Antenna

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:

• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
