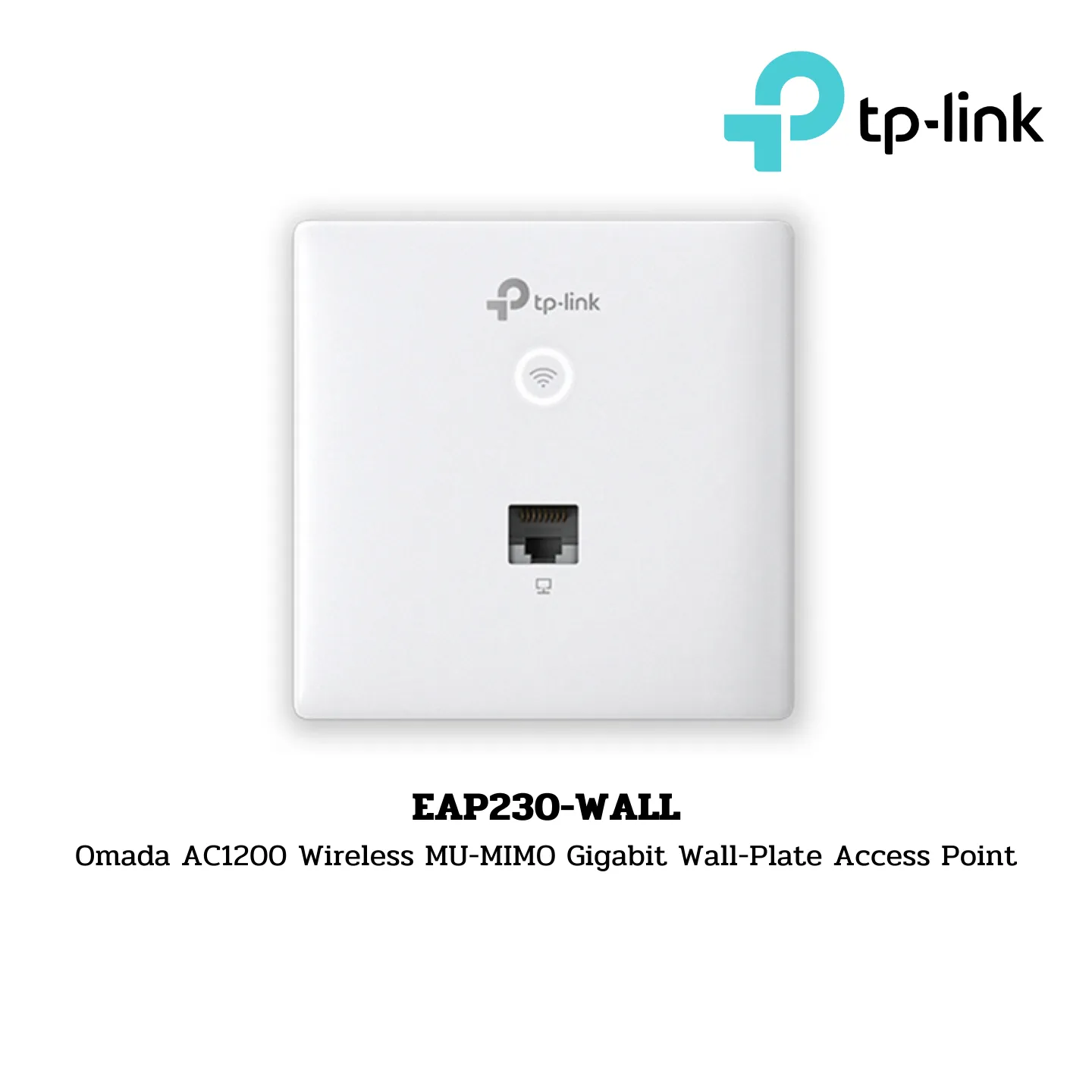

TP-Link Omada Access Points รุ่น EAP230-WALL

EAP230-WALL
Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Brand:

• TP-Link

Ports:

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port

Speed:

• 300 Mbps at 2.4 GHz + 867 Mbps at 5 GHz

Feature:

• Compatible with EU Standard Junction Box
• 802.3af PoE
• 2× Internal Antennas
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Rate limit
• Wireless Schedule
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port
• Physical Security Lock: No
• Button: LED/Wi-Fi Button, RESET

Power Supply: 802.3af/802.3at PoE

Power Consumption: 7 W

Dimensions (W x D x H): 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna:

• 2 Dual-Band Antennas
  • 2.4 GHz: 2× 4 dBi
  • 5 GHz: 2× 3.6 dBi

Mounting: Wall Plate Mounting

Hardware Watch Dog: Yes

Wireless Features:

Wireless Client Capacity: 200+*

Wireless Standards: IEEE 802.11n/g/b/ac

Frequency: 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 867 Mbps
• 2.4 GHz: Up to 300 Mbps

Wireless Functions:

• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• MU-MIMO
• Band Steering
• Beamforming

Wireless Security:

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power:

• CE: ≤20 dBm (2.4 GHz, EIRP)
• CE: ≤23 dBm (5 GHz, EIRP)

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others:

Certification: CE, RoHS

Package Contents:

• Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
• Installation Guide
• Mounting Screw

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

สอบถามค่าติดตั้ง Service Installation
