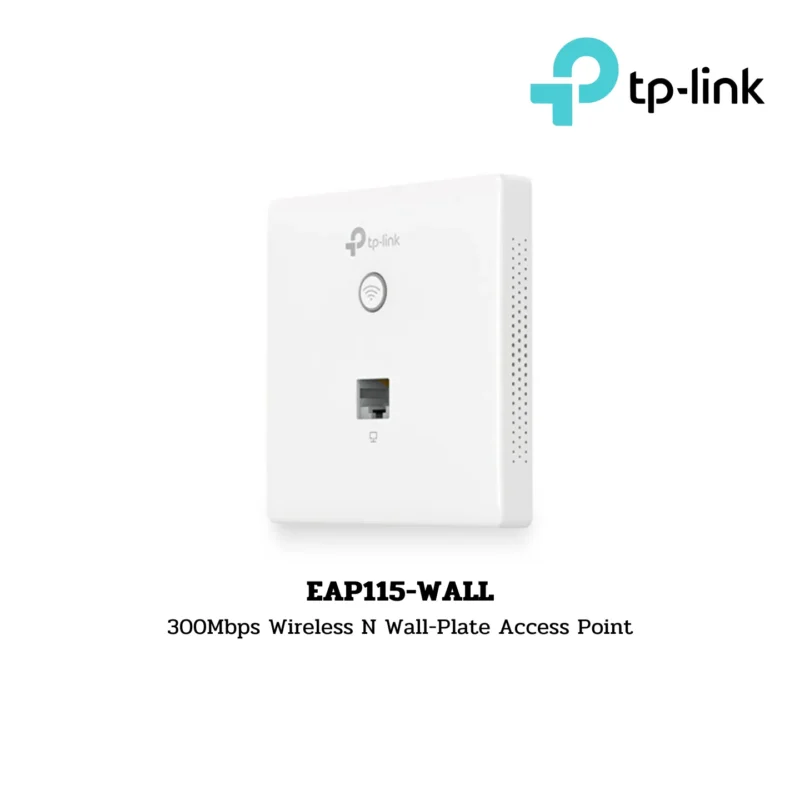

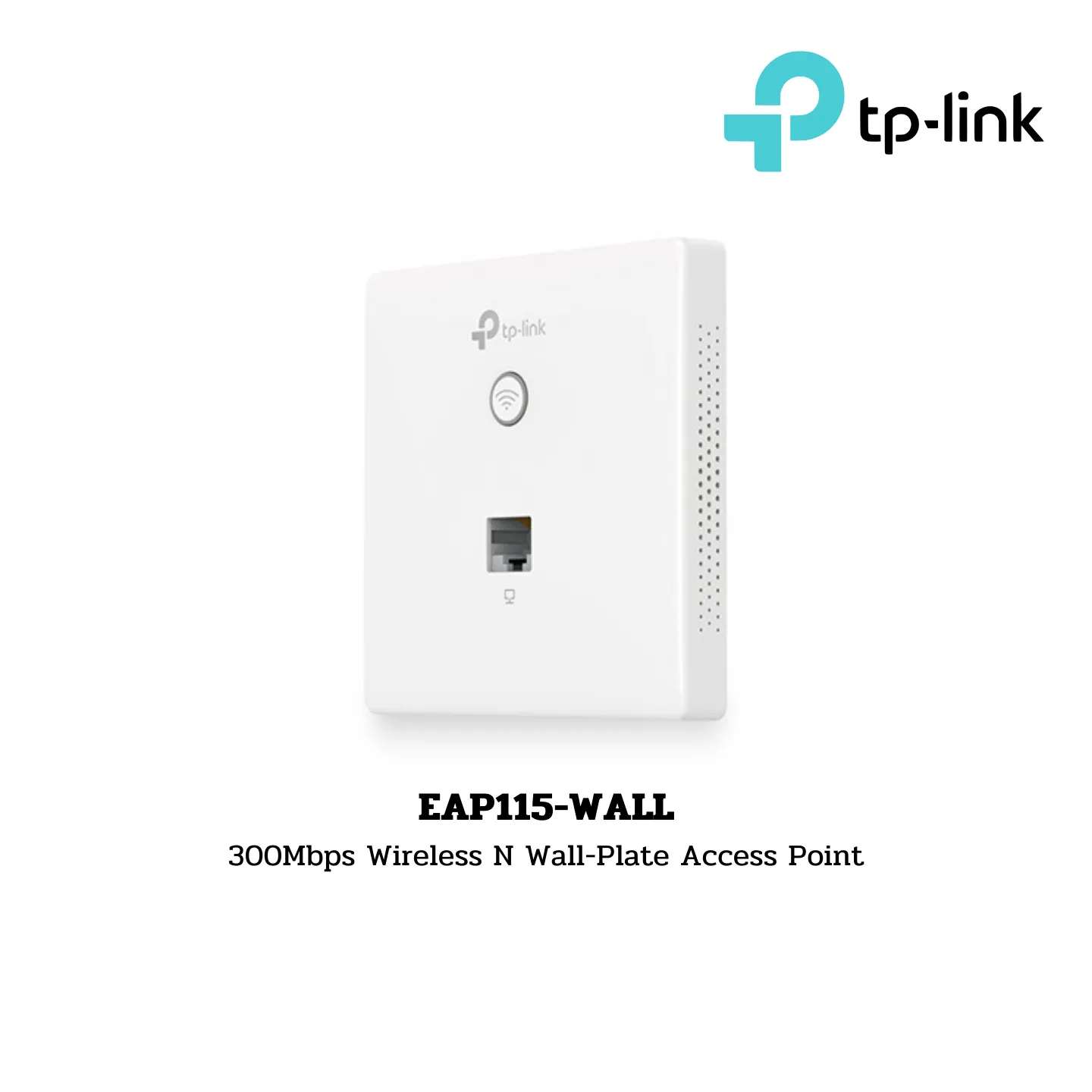

TP-Link Omada Access Points รุ่น EAP115-WALL

EAP115-WALL
300Mbps Wireless N Wall-Plate Access Point

Brand:

• TP-Link

Ports:

• Uplink: 1× 10/100 Mbps RJ45 Port
• Downlink: 1× 10/100 Mbps RJ45 Port

Speed:

• 300 Mbps at 2.4 GHz

Feature:

• Compatible with EU Standard Junction Box
• 802.3af PoE
• 2× Internal Antennas
• Load Balance
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• Uplink: 1× 10/100 Mbps Ethernet Port
• Downlink: 1× 10/100 Mbps Ethernet Port
• Physical Security Lock: No
• Button: LED/Wi-Fi Button, RESET

Power Supply: PoE (IEEE 802.3af)

Power Consumption: 2.8 W

Dimensions (W x D x H): 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna Type: Internal 2× 1.8 dBi Omni

Mounting: Wall Plate Mounting

Hardware Watch Dog: Yes

Wireless Features:

Wireless Client Capacity: 100+*

Wireless Standards: IEEE 802.11n/g/b

Frequency: 2.4 GHz

Signal Rate:

• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)

Transmit Power:

• CE: ≤20 dBm (2.4 GHz)

Wireless Functions:

• Multiple SSIDs (Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Local LAN port based VLAN
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Management:

Omada App: Yes

Centralized Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Requiring the use of OC300, OC200, or Omada Software Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Others:

Certification: CE, RoHS

Package Contents:

• 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall
• Installation Guide
• Mounting Screw

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
