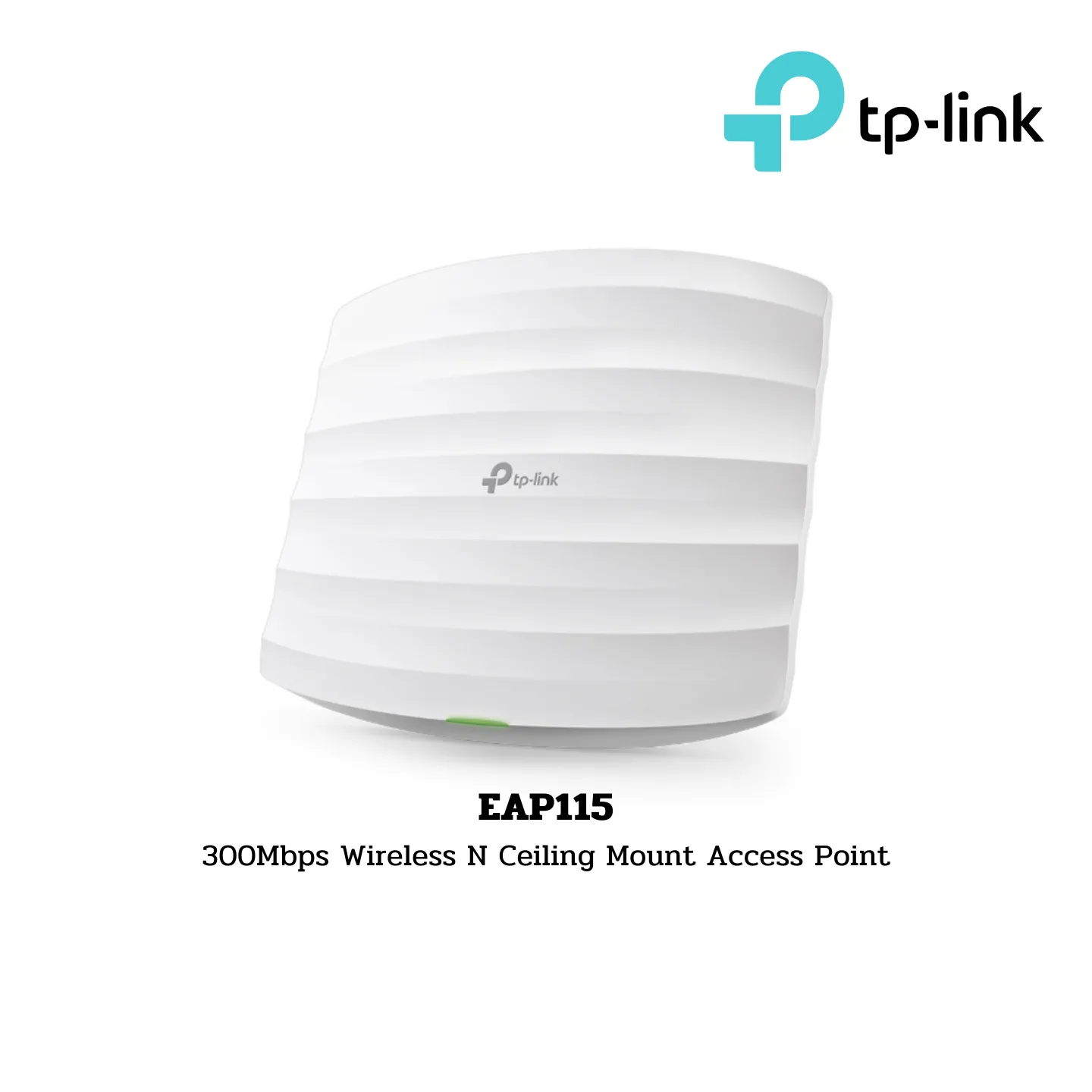

TP-Link Omada Access Points รุ่น EAP115

EAP115
300Mbps Wireless N Ceiling Mount Access Point

Brand:

• TP-Link

Port:

• 1× 10/100 Mbps RJ45 Port

Speed:

• 300 Mbps at 2.4 GHz

Feature:

• 802.3af PoE & 9V DC
• 2× Internal Antennas
• Load Balance
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 1× Fast Ethernet (RJ-45) Port (Support IEEE802.3af PoE)
• Button: Reset

Power Supply: 802.3af PoE or external 9VDC/0.6A power supply

Power Consumption: 2.8 W

Dimensions (W x D x H): 7.5×6.7×1.2 in (189.5×170.5×29.7mm)

Antenna Type: Internal 2× 4 dBi Omni

Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features:

Coverage: 60㎡(650ft²)§

Wireless Client Capacity: 100+**

Concurrent Clients: 100+**

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency: 2.4–2.4835 GHz

Signal Rate:

• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)

Reception Sensitivity:

• 300M: -71 dBm@10% PER
• 150M: -75 dBm@10% PER
• 54M: -78 dBm@10% PER
• 11M: -93 dBm@8% PER
• 6M: -92 dBm@10% PER
• 1M: -96 dBm@8% PER

Wireless Functions:

• Multiple SSIDs (Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power:

• CE: ≤19 dBm (EIRP)
• FCC: ≤21 dBm

Management:

Omada App: Yes

Centralized Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Others:

Certification: CE, FCC, RoHS

Package Contents:

• 300Mbps Wireless N Ceiling Mount Access Point EAP115
• Power Adapter
• Mounting Kits
• Installation Guide

System Requirements: Microsoft Windows 11/10/8/7/Vista/XP, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
