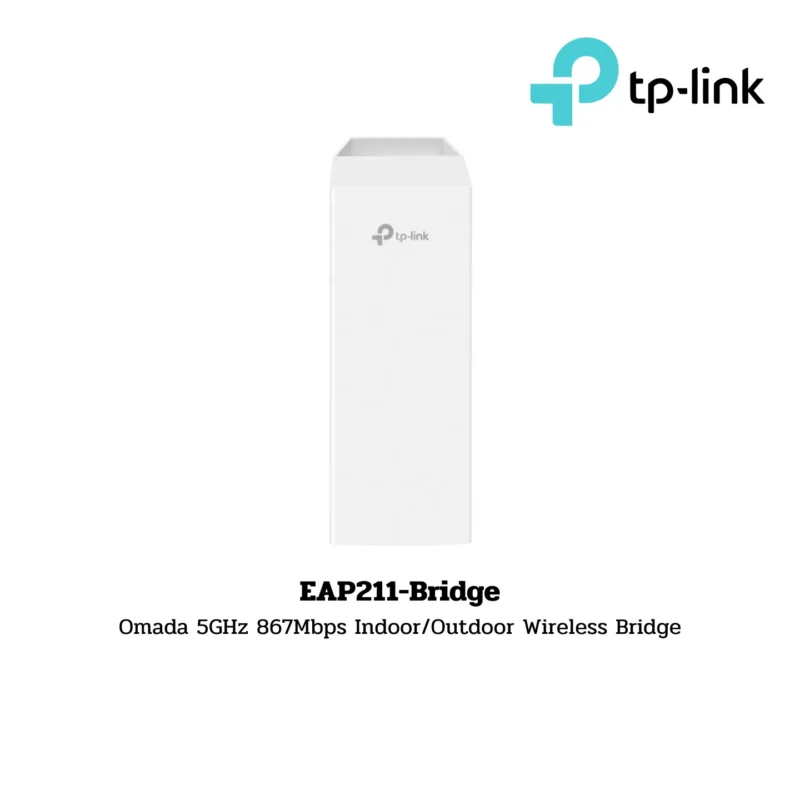

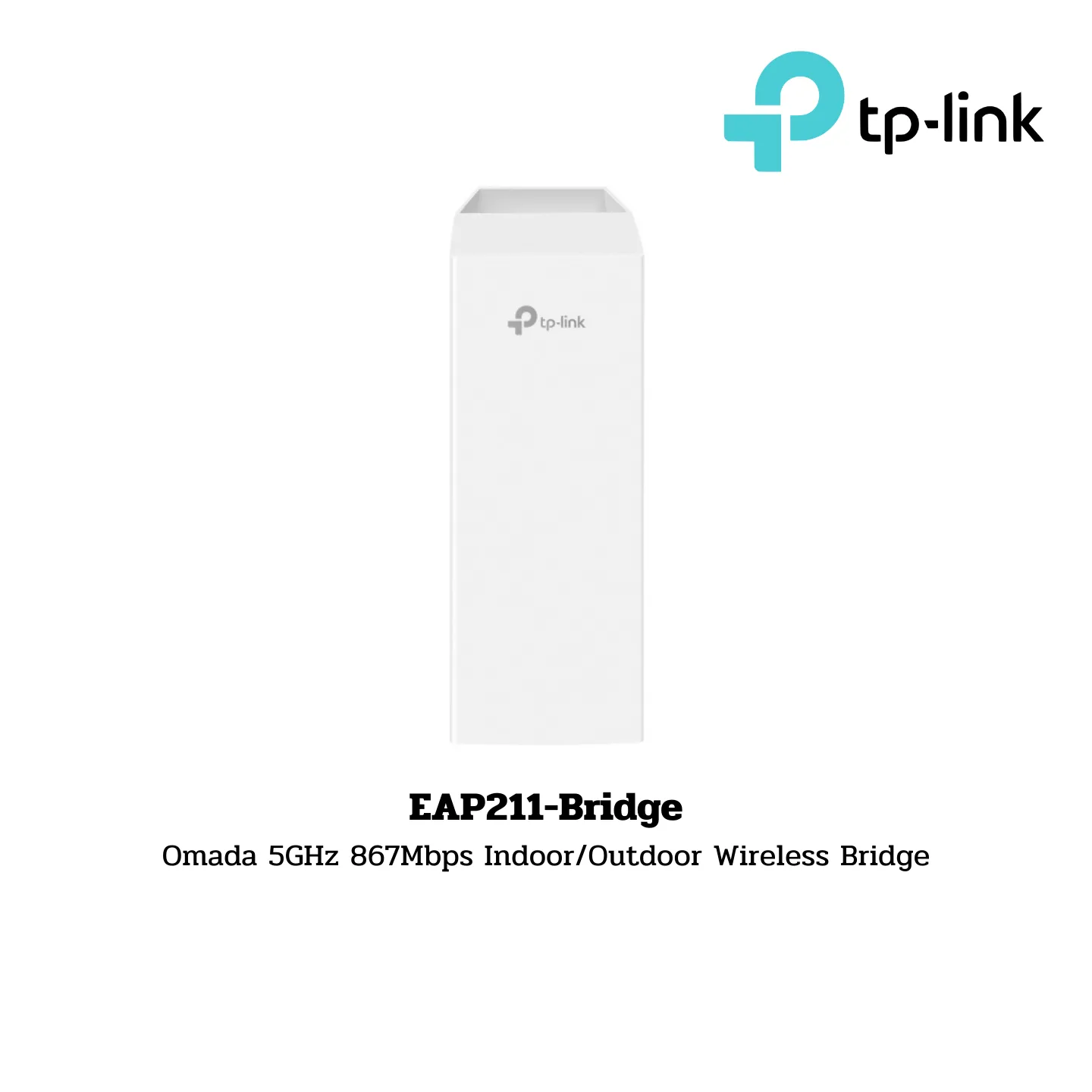

TP-Link Omada Access Points รุ่น EAP211-Bridge

EAP211-Bridge
Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge

Brand:

• TP-Link

Ports:

• 3× Gigabit RJ45 Ports

Speed:

• 867 Mbps at 5 GHz

Feature:

• 12V DC / 24V Passive PoE (Power Adapter is not included)
• 2× Internal Antennas
• Wireless Bridge
• Mesh
• MU-MIMO
• Beamforming
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

HARDWARE FEATURES

Interface:

• 3x Gigabit Ethernet Ports*6

Button: Reset

Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)

Power Consumption: 11.5W

Dimensions (W x D x H): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)

Antenna Type:

• Internal 2×2 Dual-polarized directional MIMO antennas
• 5 GHz: 7.0 dBi
• Horizontal: 70°, Vertical: 70°

Weatherproof Enclosure: IP65

Mounting: Pole Mounting (Accessories included)

WIRELESS FEATURES

Coverage: 1000m (3280ft)

Wireless Standards: IEEE 802.11 a/b/g/n/ac

Frequency: 5 GHz

Signal Rate: 5 GHz: Up to 867 Mbps

Wireless Functions:

• Mesh*4
• MU-MIMO: 5G 2×2 MU-MIMO DL
• Load Balance
• Seamless Roaming (802.11r)
• Beamforming
• Airtime Fairness
• Multiple SSIDs: 8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP

Wireless Security:

• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

Transmission Power:

• CE:
  • <23dBm (5 GHz, band 1/2, EIRP)
  • <28.5dBm (5 GHz, band 3, EIRP)
• FCC:
  • <22dBm (5 GHz, band 1/4)

MANAGEMENT

Omada App: Yes

Restore & Backup: Yes

Firmware update via Web: Yes

NTP: Yes

Centralized Management:

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access: Yes (Requires the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller)

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

SSH: Yes

Web-based Management: Yes

OTHERS

Certification: CE, FCC, RoHS

Package Contents:

• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

Environment:

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing
