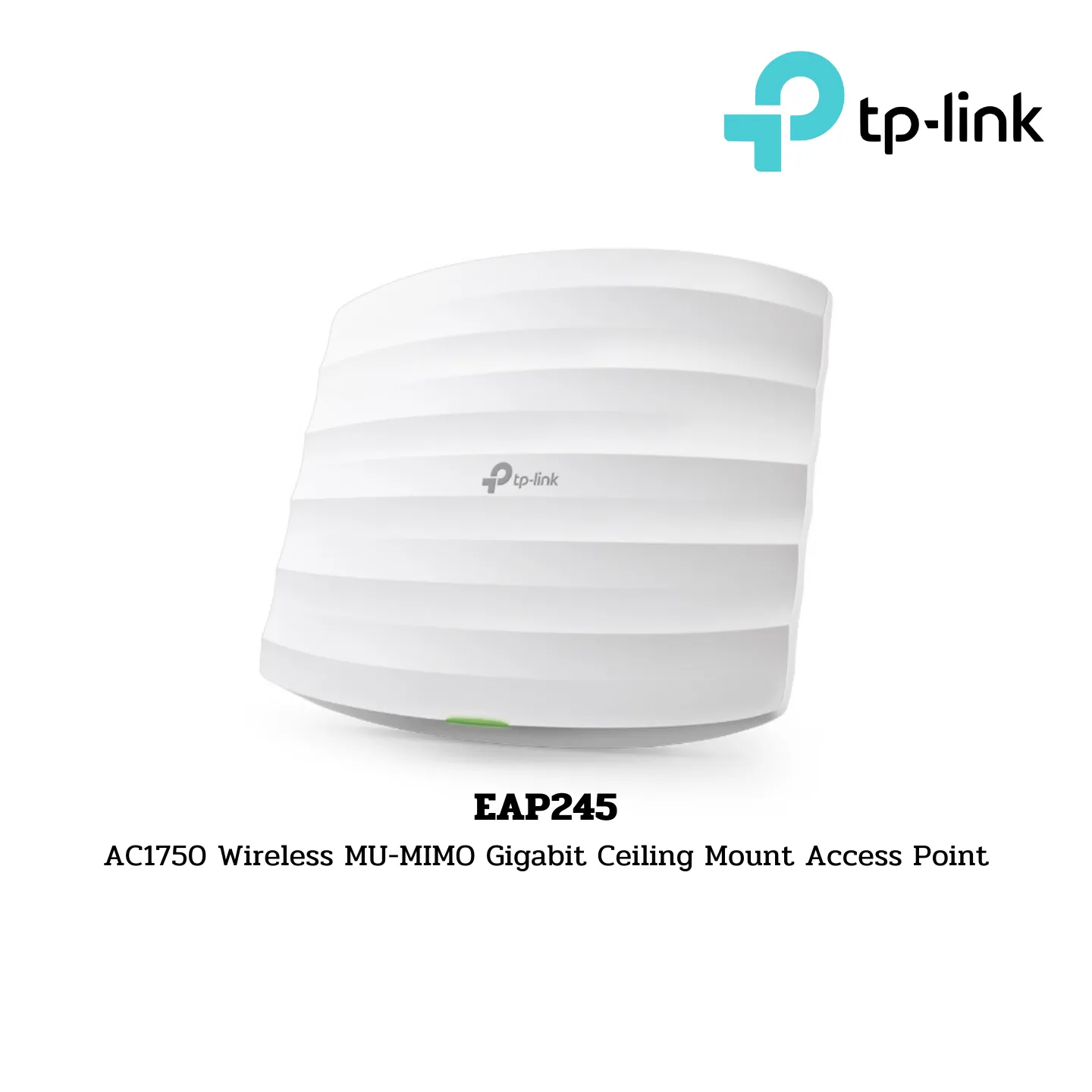

TP-Link Omada Access Points รุ่น EAP245

EAP245
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

Brand:

• TP-Link

Port:

• 2× Gigabit RJ45 Port

Speed:

• 450 Mbps at 2.4 GHz + 1300 Mbps at 5 GHz

Feature:

• 802.3af PoE and Passive PoE
• 3× Internal Antennas
• Seamless Roaming
• MU-MIMO
• Band Steering
• Beamforming
• Load Balance
• Airtime Fairness
• Centralized Management by Omada SDN Controller
• Omada App

Hardware Features:

Interface:

• 2 × Gigabit Ethernet (RJ-45) Ports (One port supports IEEE802.3at PoE and Passive PoE In. Another port supports Passive PoE Out, and the power consumption of its downlink terminal devices should not exceed 5W)
• Physical Security Lock: Yes
• Button: Reset

Power Supply:

• 802.3at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption:

• EU: 14.3 W
• US: 16.1 W

Dimensions (W x D x H): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna Type:

• Internal Omni
  • 2.4 GHz: 3× 3.5 dBi
  • 5 GHz: 3× 4 dBi

Mounting: Ceiling / Wall Mounting (Kits included)

Wireless Features:

Coverage: 140㎡ (1500 ft²)

Wireless Client Capacity: 220+**

Concurrent Clients: 220+***

Wireless Standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4 GHz and 5 GHz

Signal Rate:

• 5 GHz: Up to 1300 Mbps
• 2.4 GHz: Up to 450 Mbps

Wireless Functions:

• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz, 7 for 5GHz)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security:

• Captive Portal Authentication*
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise
• WPA-PSK / WPA2-PSK

Transmission Power:

• CE:
  • ≤20 dBm (2.4 GHz)
  • ≤23 dBm (5 GHz)
• FCC:
  • ≤24 dBm (2.4 GHz)
  • ≤24 dBm (5 GHz)

Management:

Omada App: Yes

Centralized Management:

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others:

Certification: CE, FCC, RoHS

Package Contents:

• AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
• Gigabit 48V Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment:

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
