Switch TP-Link Easy Smart Switch รุ่น TL-SG108E

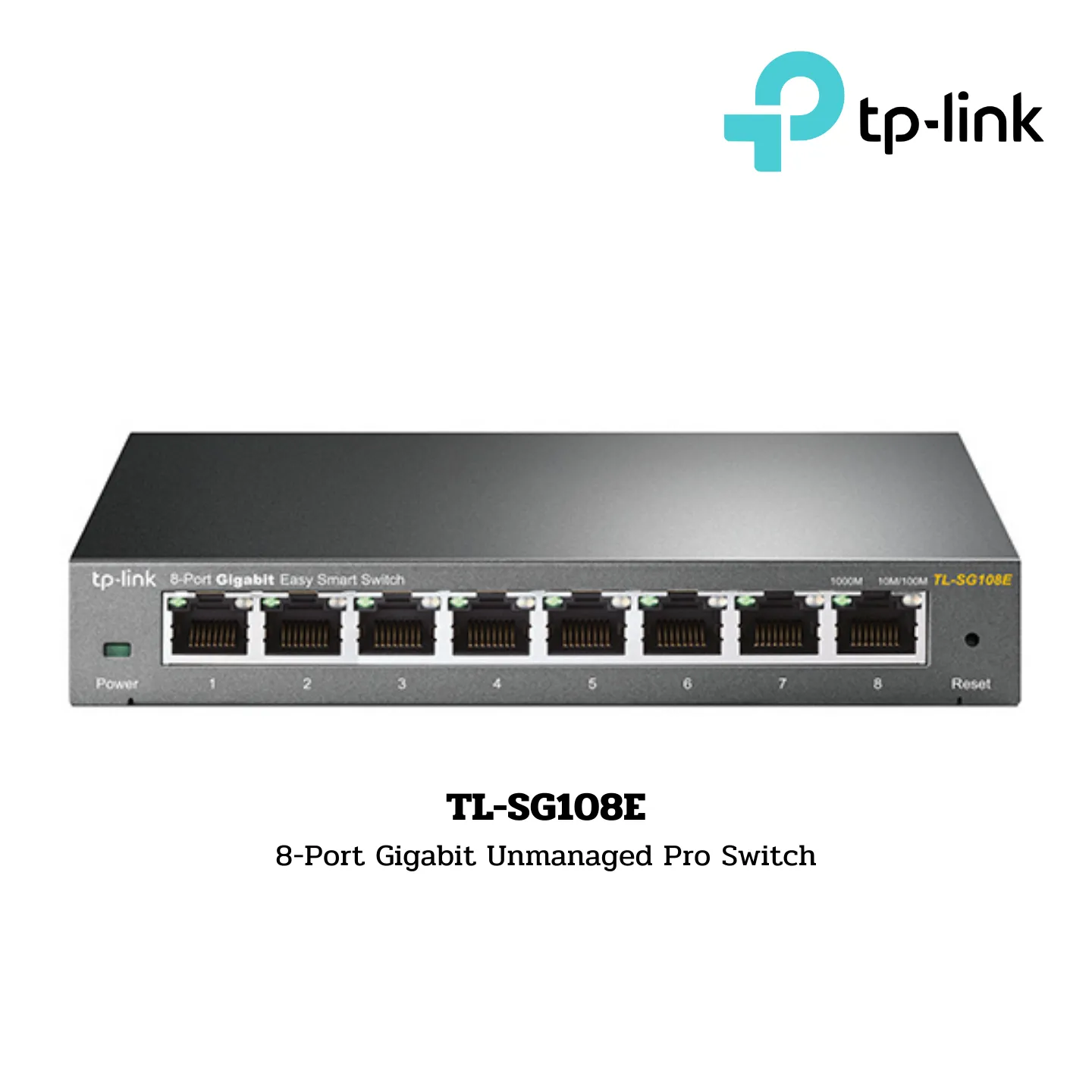

TL-SG108E
8-Port Gigabit Unmanaged Pro Switch

Specifications:

• Ports:
  • 8× Gigabit RJ45 Ports
• Specification:
  • Desktop Steel Case
• Feature:
  • MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface:
  • 8× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity:
  • Fanless
• Power Supply:
  • External Power Adapter (Output: 5 VDC/0.6 A)
• Dimensions (W x D x H):
  • 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
• Max Power Consumption:
  • 3.68 W (220 V/50 Hz)
• Max Heat Dissipation:
  • 12.55 BTU/h

Performance:

• Switching Capacity:
  • 16 Gbps
• Packet Forwarding Rate:
  • 11.9 Mpps
• MAC Address Table:
  • 4 K
• Packet Buffer Memory:
  • 1.5 Mb
• Jumbo Frame:
  • 16 KB

Software Features:

• Quality of Service:
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
• L2 Features:
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Transmission Method:
  • Store-And-Forward

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SG108E
  • Power Adapter
  • Installation Guide
  • Rubber Feet
• System Requirements:
  • Microsoft® Windows® for running Utility
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
