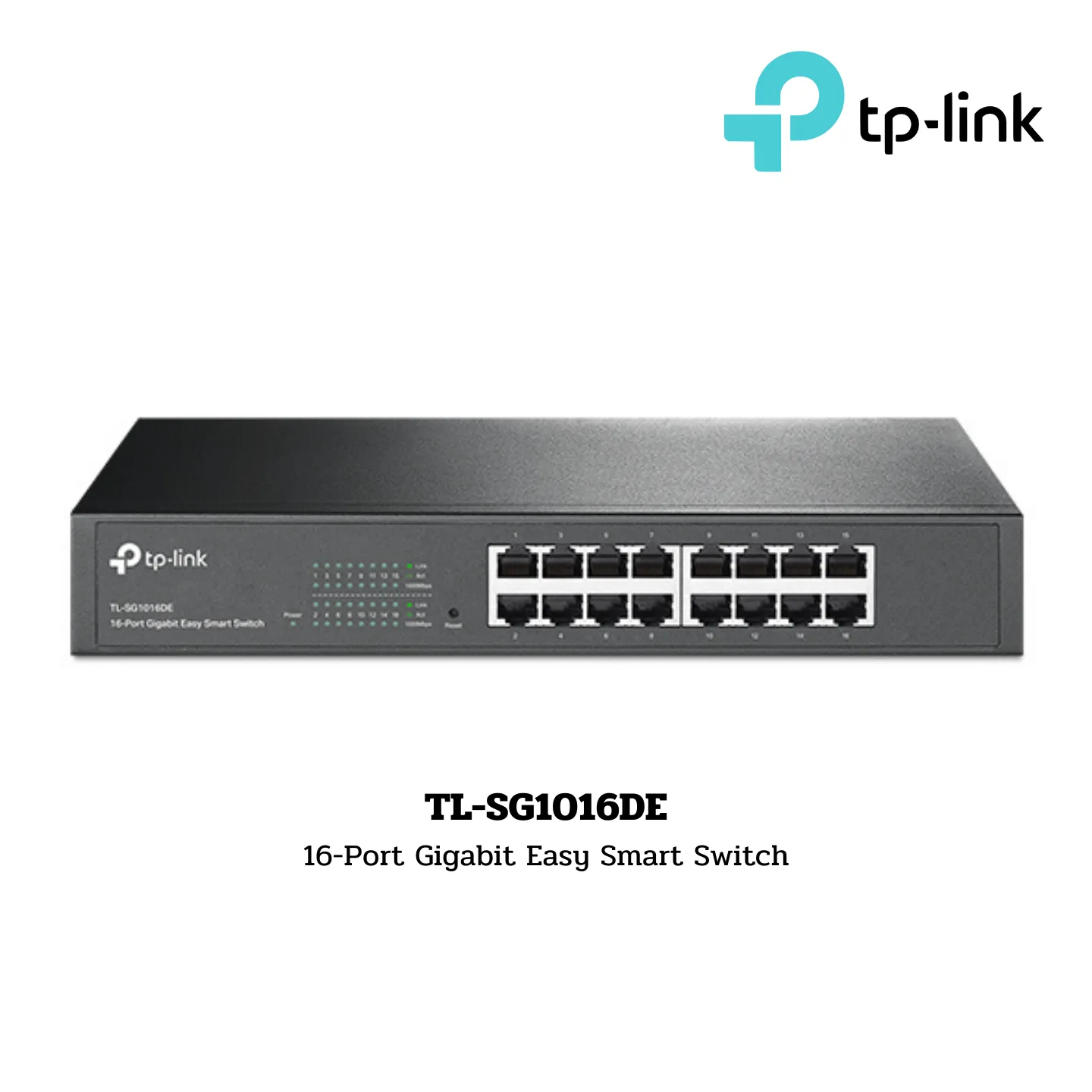

Switch TP-Link Easy Smart Switch รุ่น TL-SG1016DE

TL-SG1016DE
16-Port Gigabit Easy Smart Switch

Specifications:

• Ports:
  • 16× Gigabit RJ45 Ports
• Specification:
  • 1U 13-inch Rack-mountable Steel Case
• Feature:
  • MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface:
  • 16× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity:
  • Fanless
• Physical Security Lock:
  • No
• Power Supply:
  • 100-240VAC, 50/60Hz
• Dimensions (W x D x H):
  • 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
• Mounting:
  • Rack Mountable
• Max Power Consumption:
  • 10.22W (220V/50Hz)
• Max Heat Dissipation:
  • 34.52 BTU/h

Performance:

• Switching Capacity:
  • 32Gbps
• Packet Forwarding Rate:
  • 23.8Mpps
• MAC Address Table:
  • 8K
• Packet Buffer Memory:
  • 4.1Mbit
• Jumbo Frame:
  • 10KB

Software Features:

• Quality of Service:
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
• L2 Features:
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Transmission Method:
  • Store-And-Forward

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SG1016DE
  • Power Cord
  • Installation Guide
  • Resource CD
  • Rackmount Kit
  • Rubber Feet
• System Requirements:
  • Microsoft® Windows® for running Utility
• Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
