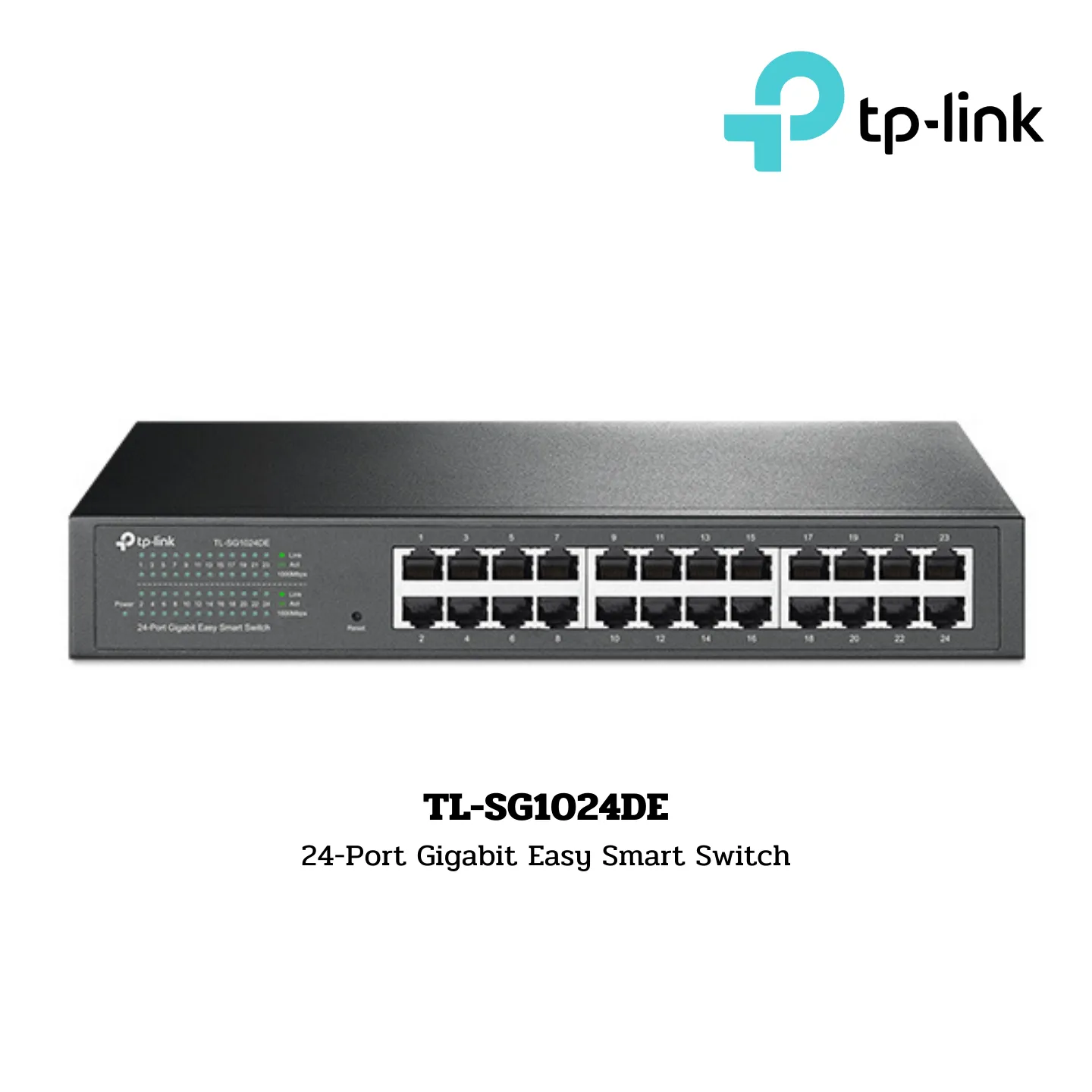

TL-SG1024DE
24-Port Gigabit Easy Smart Switch
Specifications:
- Ports:
- 24× Gigabit RJ45 Ports
- Specification:
- 1U 13-inch Rack-mountable Steel Case
- Feature:
- MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play
Hardware Features:
- Standards and Protocols:
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
- 24× 10/100/1000 Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity:
- Fanless
- Physical Security Lock:
- No
- Power Supply:
- 100-240VAC, 50/60Hz
- Power Consumption:
- Maximum: 14.86W (220V/50Hz)
- Dimensions (W x D x H):
- 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
- Mounting:
- Rack Mountable
- Max Power Consumption:
- 15.56W (220V/50Hz)
- Max Heat Dissipation:
- 50.06 BTU/h
Performance:
- Switching Capacity:
- 48Gbps
- Packet Forwarding Rate:
- 35.7Mpps
- MAC Address Table:
- 8K
- Packet Buffer Memory:
- 512KB
- Jumbo Frame:
- 9KB
Software Features:
- Quality of Service:
- Support Port-based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
- L2 Features:
- IGMP Snooping V1/V2/V3
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
- Transmission Method:
- Store-And-Forward
Others:
- Certification:
- FCC, CE, RoHS
- Package Contents:
- TL-SG1024DE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
- System Requirements:
- Microsoft® Windows® for running Utility
- Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
