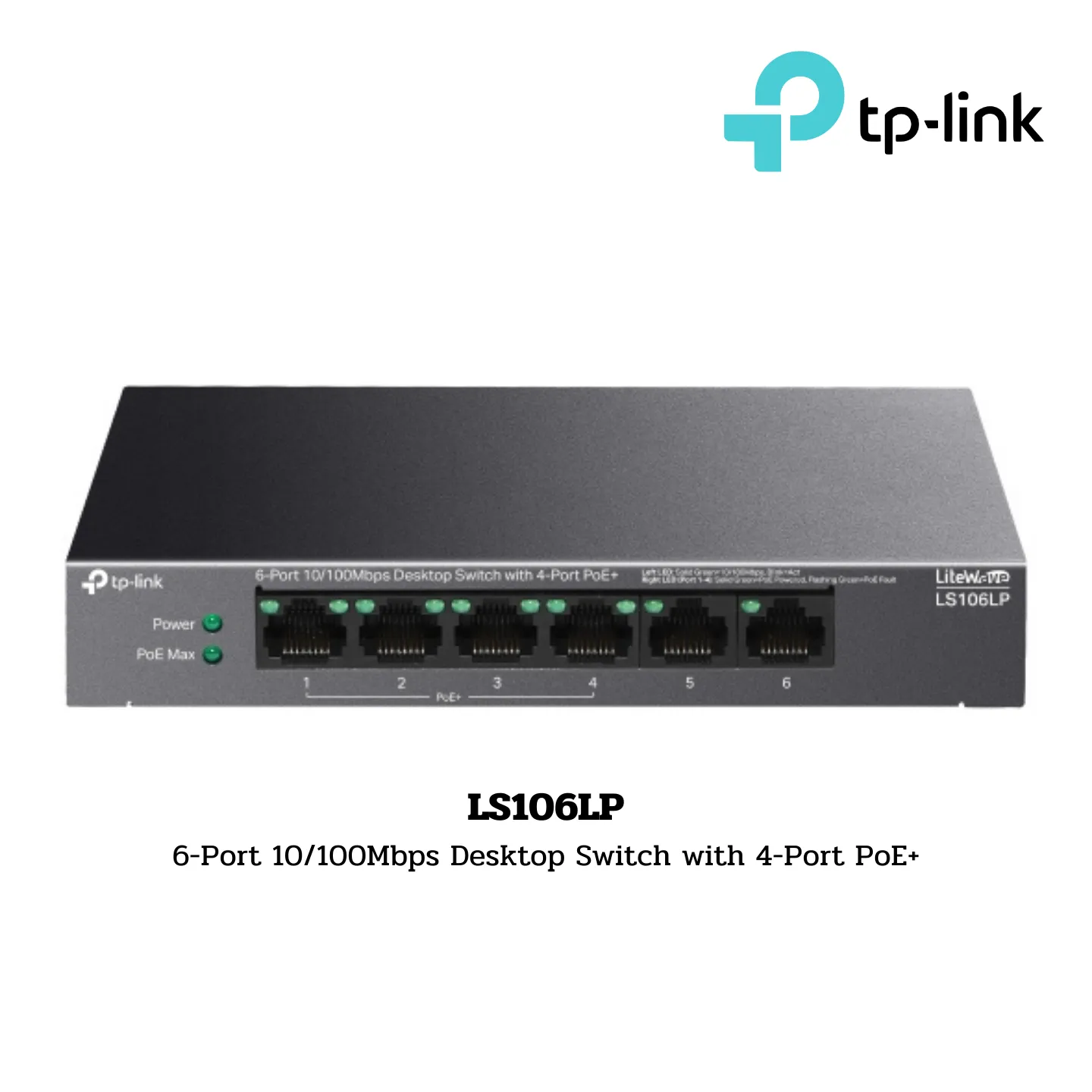

LS106LP
6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- Ports:
- 4× 10/100 Mbps PoE Ports
- 2× 10/100 Mbps Non-PoE Ports
- Specification:
- 802.3af, 41 W PoE Power, Desktop Steel Case
- Feature:
- Extend Mode for 250m PoE Transmitting, PoE Auto Recovery, Plug and Play
Hardware Features:
- Interface:
- 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports)
- AUTO Negotiation
- AUTO MDI/MDIX
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity:
- Fanless
- Installation:
- Desktop
- Wall Mounting
- Power Supply:
- External Power Adapter (Output: 53.5VDC / 0.81A)
- PoE Ports (RJ45):
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4, up to 30 W PoE output per port
- Power Supply: 41 W
- LED Indicator:
- Power
- Link/Act
- PoE Status
- PoE MAX
- Dimensions (W x D x H):
- 6.2×4.0×1.0 in (158×101×25 mm)
Max Power Consumption:
- 2.53 W (220 V/50 Hz no PD connected)
- 47.76 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation:
- 8.61 BTU/h (220 V/50 Hz no PD connected)
- 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)
Performance:
- Switching Capacity:
- 1.2 Gbps
- Packet Forwarding Rate:
- 0.8928 Mpps
- MAC Address Table:
- 2K
- Jumbo Frame:
- 2 KB
Software Features:
- Advanced Features:
- Extend Mode: Ports 1–4
- PoE Auto Recovery: Ports 1-4
- Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control
- Green Technology
- Transfer Method: Store and Forward
Others:
- Certification:
- CE, FCC, RoHS
- Package Contents:
- LS106LP
- Power Adapter
- Installation Guide
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
