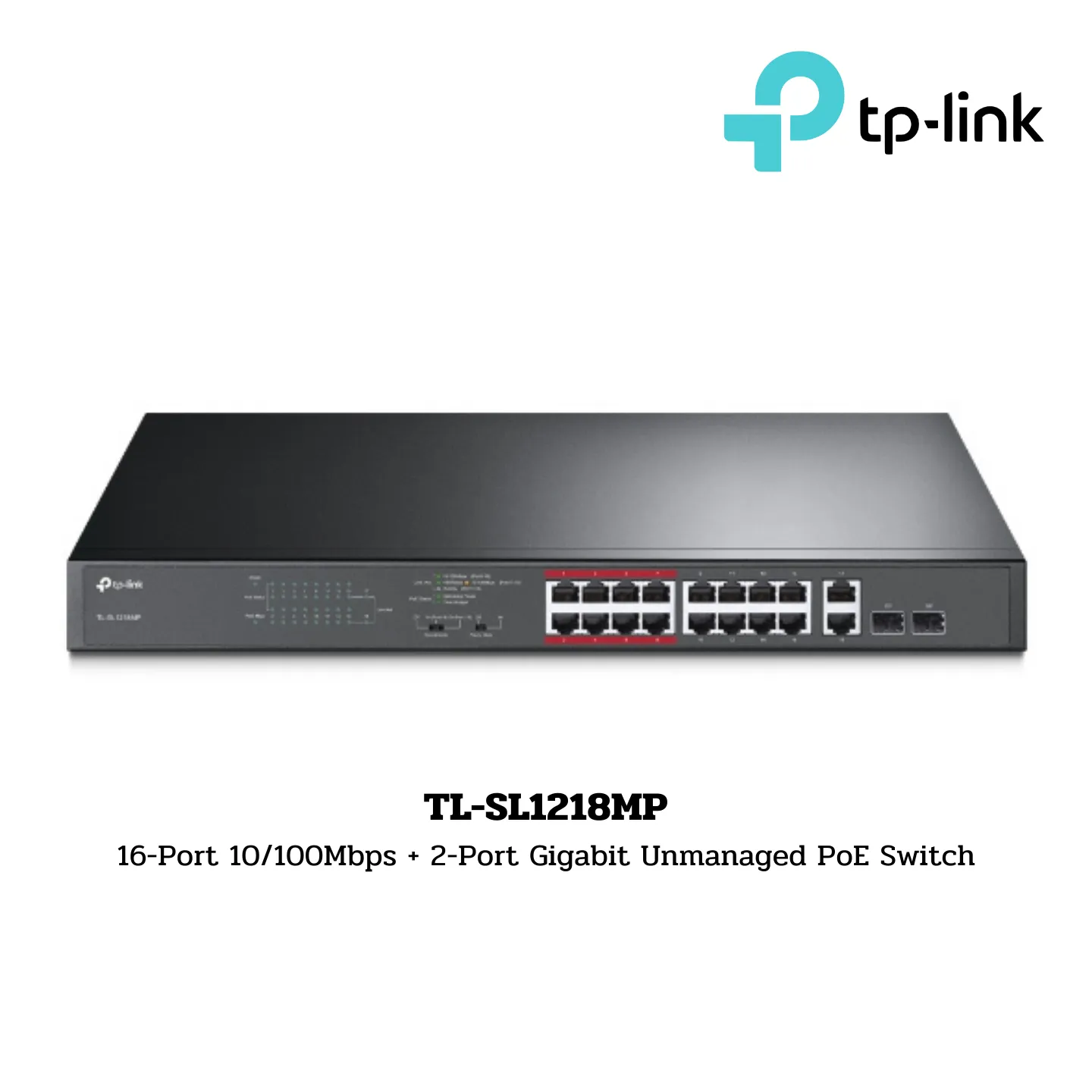

Switch TP-Link รุ่น TL-SL1218MP

TL-SL1218MP
16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

• Ports:
  • 16× 10/100 Mbps PoE+ Ports
  • 2× Gigabit Non-PoE Ports
  • 2× Combo Gigabit SFP Slots
• Hardware:
  • 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Extend Mode for 250 m PoE Transmitting, Priority Mode for Port 1-8, Isolation Mode, Plug and Play

Hardware Features:

• Interface:
  • 16 PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
• Fan Quantity:
  • 2 Fans
• Physical Security Lock:
  • Yes
• Power Supply:
  • 100–240V AC, 50/60 Hz
• PoE+ Ports (RJ45):
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Ports 1–16
  • PoE Power Budget: 250 W
• Dimensions (W x D x H):
  • 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Max Power Consumption:

• 12.55 W (220/50Hz, no PD connected)
• 301.71 W (220/50Hz, with 250 W PD connected)

Max Heat Dissipation:

• 42.67 BTU/h (no PD connected)
• 1025.81 BTU/h (with 250 W PD connected)

Performance:

• Switching Capacity:
  • 7.2 Gbps
• Packet Forwarding Rate:
  • 5.36 Mpps
• MAC Address Table:
  • 8 K
• Jumbo Frame:
  • 10 KB

Software Features:

• Advanced Features:
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode (Ports 1-8)
  • Isolation Mode (Ports 1-16)
  • PoE Auto Recovery (Ports 1-16)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control
  • Transmission Method: Store-And-Forward

Others:

• Certification:
  • CE, FCC, RoHS
• Package Contents:
  • TL-SL1218MP
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
• Environment:
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing

สอบถามค่าติดตั้ง Service Installation
