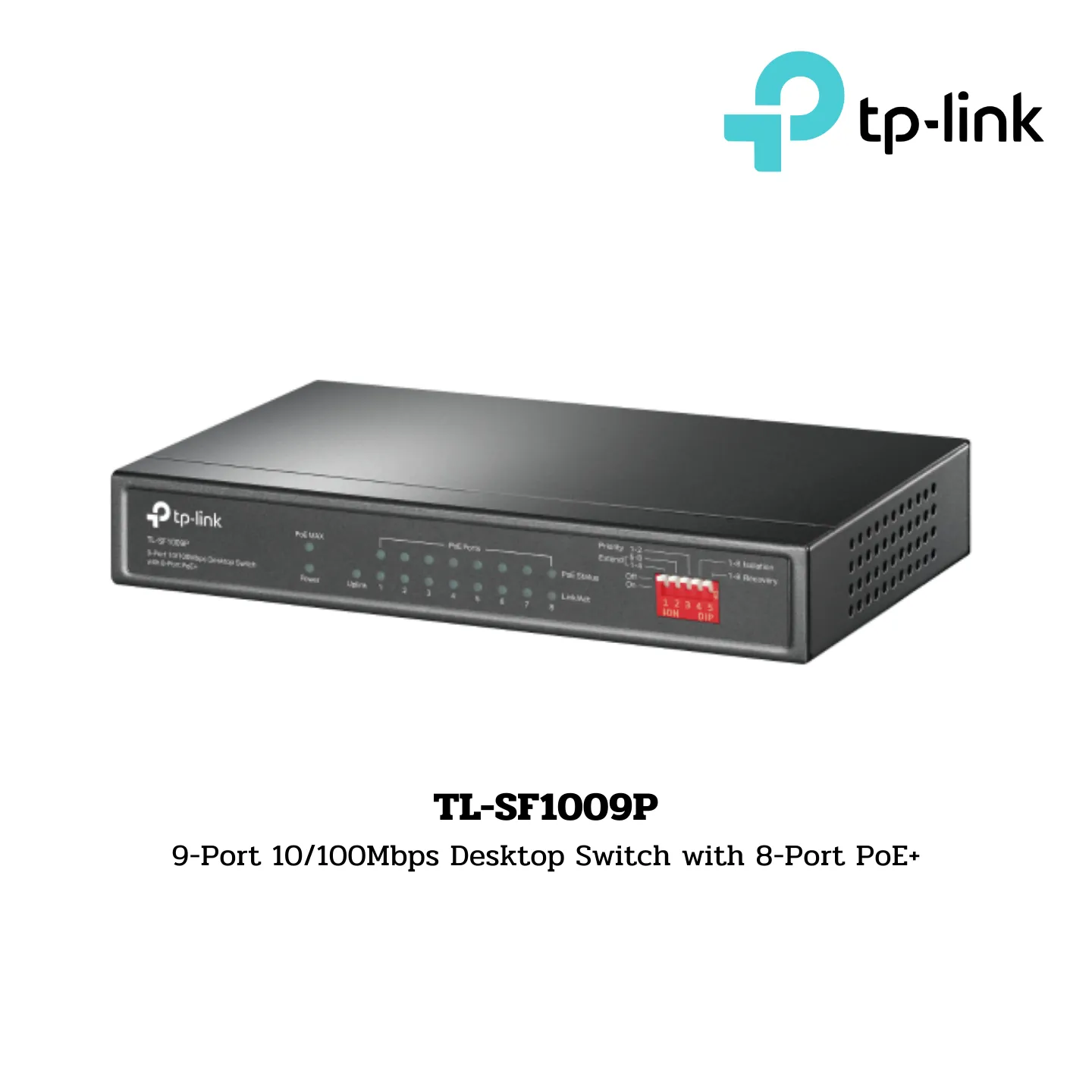

Switch TP-Link รุ่น TL-SF1009P 10/100M POE Switch

TL-SF1009P
9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

• Ports:
  • 8× 10/100 Mbps PoE+ Ports
  • 1× 10/100 Mbps Non-PoE Port
• Specification:
  • 802.3at/af, 65 W PoE Power, Desktop Steel Case
• Feature:
  • Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-2, Isolation Mode, Plug and Play

Hardware Features:

• Interface:
  • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity:
  • Fanless
• Physical Security Lock:
  • Yes
• External Power Supply:
  • External Power Adapter (Output: 53.5VDC / 1.31A)
• PoE Ports (RJ45):
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–8
  • Power Supply: 65 W
• Packet Forwarding Rate:
  • 1.3392 Mpps
• Mac Address Table:
  • 2K
• Jumbo Frame:
  • 2 KB
• Switching Capacity:
  • 1.8 Gbps
• Dimensions (W x D x H):
  • 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Max Power Consumption:

• 3.28 W (220 V / 50 Hz, no PD connected)
• 74.33 W (220 V / 50 Hz, with 65 W PD connected)

Max Heat Dissipation:

• 11.18 BTU/h (no PD connected)
• 253.47 BTU/h (with 65 W PD connected)

Software Features:

• Transmission Method:
  • Store-And-Forward
• Advanced Functions:
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1–2)
  • Isolation Mode Button (Ports 1–8)
  • PoE Auto Recovery Button (Ports 1–8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SF1009P
  • Power Adapter
  • Installation Guide
• Environment:
  • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
