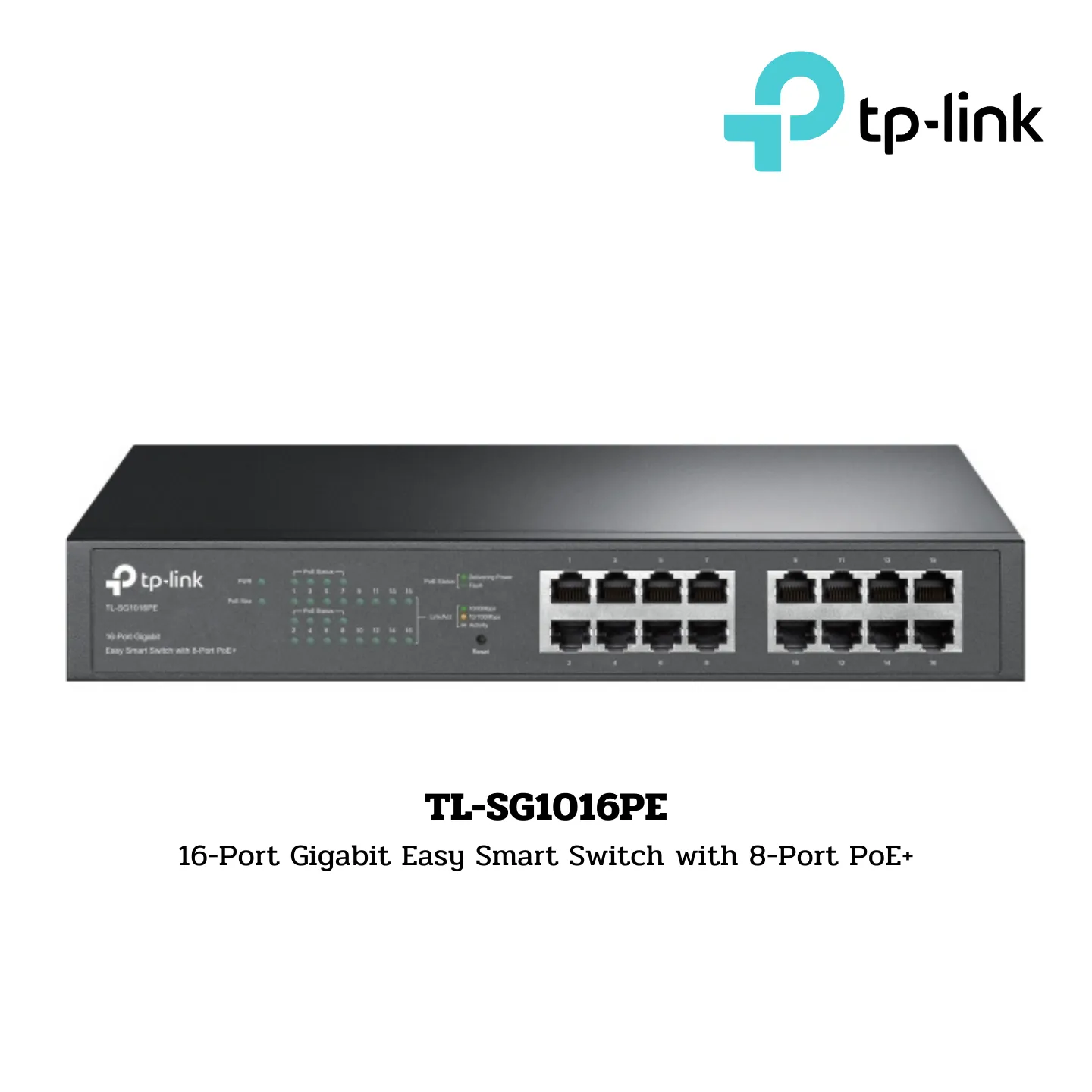

Switch TP-Link รุ่น TL-SG1016PE 16-Port Gigabit Easy Smart Switch

TL-SG1016PE
16-Port Gigabit Easy Smart Switch with 8-Port PoE+

• Ports:
  • 8× Gigabit PoE+ Ports
  • 8× Gigabit Non-PoE Ports
• Specification:
  • 802.3at/af, 150 W PoE Power, 1U 13-inch Rack-mountable Steel Case
• Feature:
  • PoE Auto Recovery, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
• Interface:
  • 16× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity:
  • Fanless
• Physical Security Lock:
  • Yes
• PoE Ports (RJ45):
  • Standard: 802.3 af/at compliant
  • PoE Ports: Port 1 to Port 8
  • PoE Power Budget: 150 W
• Dimensions (W x D x H):
  • 11.6×7.1×1.7 in (294×180×44 mm)
• Mounting:
  • Rack Mountable/Desktop

Max Power Consumption:

• 13.07 W (220 V/50 Hz with no PD connected)
• 173.88 W (220 V/50 Hz with 150 W PD connected)

Max Heat Dissipation:

• 44.438 BTU/h (220 V/50 Hz with no PD connected)
• 591.192 BTU/h (220 V/50 Hz with 150 W PD connected)

Performance:

• Switching Capacity:
  • 32 Gbps
• Packet Forwarding Rate:
  • 23.8 Mbps
• MAC Address Table:
  • 8K
• Packet Buffer Memory:
  • 4.1 Mbit
• Jumbo Frame:
  • 10 KB

Software Features:

• Quality of Service:
  • Support Port-Based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control

L2 Features:

• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN

PoE:

• PoE Management
• Extend Mode
• PoE Auto Recovery

Management:

• Web-based GUI
• Easy Smart Configuration Utility
• Transmission Method: Store-And-Forward

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SG1016PE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• System Requirements:
  • Microsoft® Windows® for running Utility

Environment:

• Operating Temperature: 0–45 ℃ (32–113 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% non-condensing
• Storage Humidity: 5–90% non-condensing
