Hardware Features
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
- Interface: Five 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
- PoE Ports (RJ45): Standard: 802.3 af/at compliant, Ports: 1-4, PoE Power Budget: 65 W
- Dimensions: 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
- Max Power Consumption: 4.52 W (220V/50Hz with no PD connected), 75.16 W (220V/50Hz with 65 W PD connected)
- Max Heat Dissipation: 15.41 BTU/h (with no PD connected), 256.30 BTU/h (with 65 W PD connected)
Performance
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2 K
- Packet Buffer Memory: 1 Mb
- Jumbo Frame: 16 KB
Software Features
- Quality of Service: Support Port-Based/802.1p/DSCP priority, Support 4 priority queues, Rate Limit, Storm Control
- L2 Features: IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention, PoE Auto Recovery, Extend Mode
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
- Management: Web-based GUI, Easy Smart Configuration Utility
- Transmission Method: Store-and-Forward
Other Details
- Certification: FCC, CE, RoHS

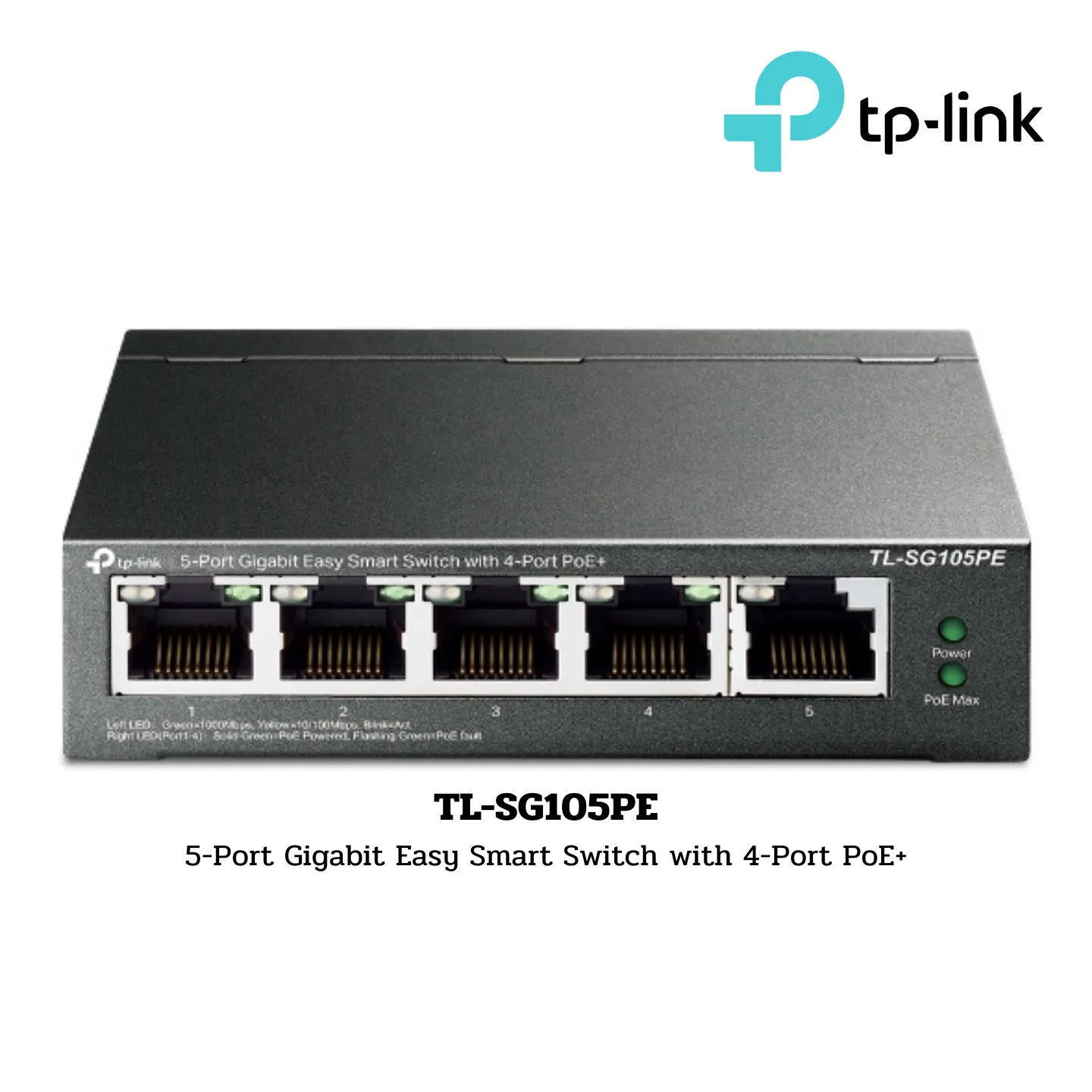

- Package Contents: TL-SG105PE, Power Adapter, Installation Guide, Rubber Feet
- System Requirements: Microsoft® Windows® for running Utility
- Environment:
- Operating Temperature: 0℃ to 40℃ (32℉ to 104℉)
- Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉)
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 95% RH non-condensing
