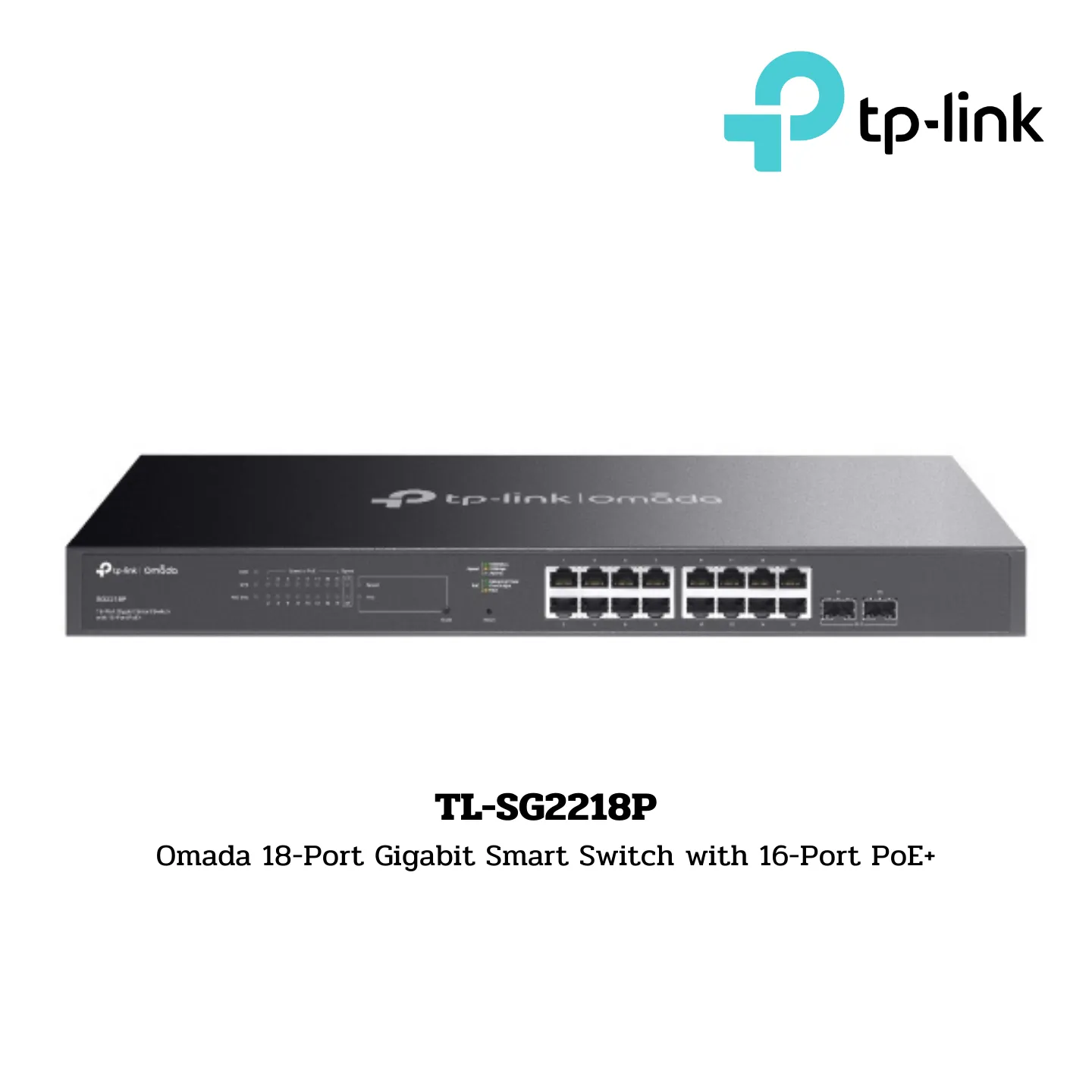

Switch TP-Link รุ่น TL-SG2218P

TL-SG2218P
Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

• Ports:
  • 16× Gigabit RJ45 Ports
  • 2× Gigabit SFP Slots
• Specification:
  • 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Hardware Features:

• Interface:
  • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2× Gigabit SFP Slots
• Fan Quantity:
  • Fanless Design
• Physical Security Lock:
  • Yes
• Power Supply:
  • 100-240V AC, 50/60Hz
• PoE Ports (RJ45):
  • Standard: 802.3at/af compliant
  • PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
  • PoE Power Budget: 150 W
• Dimensions (W x D x H):
  • 17.3×7.1×1.7 in (440×180×44 mm)
• Mounting:
  • Rack Mountable

Performance:

• Switching Capacity:
  • 36 Gbps
• Packet Forwarding Rate:
  • 26.78 Mpps
• MAC Address Table:
  • 8K
• Packet Buffer Memory:
  • 4.1 Mbit
• Jumbo Frame:
  • 9 KB

Software Features:

• Quality of Service:
  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode:
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control: Port/Flow based Rating Limit
  • Smoother Performance
  • Storm Control: Multiple Control Modes (kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features:

• 32 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/LLDP-MED

L2 Multicast:

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast: 256 profiles and 16 entries per profile

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

VLAN:

• VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List:

• Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action:
  • Mirroring
  • Redirect
  • Rate Limit
  • QoS Remark
• ACL Rules Binding:
  • Port Binding
  • VLAN Binding

Security:

• IP-MAC-Port Binding
• AAA
• 802.1X:
  • Port-based authentication
  • MAC (Host) based authentication
  • Authentication Method includes PAP/EAP-MD5
  • MAB
  • Guest VLAN
  • Support Radius authentication and accountability
• IP/IPv6-MAC Binding:
  • 512 Binding Entries
  • DHCP Snooping
  • DHCPv6 Snooping
  • ARP Inspection
  • ND Detection
• IP Source Guard:
  • 253 Entries
  • Source IP+Source MAC
• IPv6 Source Guard:
  • 183 Entries
  • Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security:
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control:
  • kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6:

• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications:
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet (v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP

MIBs:

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB (RFC1757, rmon 1,2,3,9)

Management:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller.
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

Management Features:

• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

Others:

• Certification: CE, FCC, RoHS
• Package Contents:
  • SG2218P
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• System Requirements:
  • Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux

Environment:

• Operating Temperature: 0–45 ℃ (32–113 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
