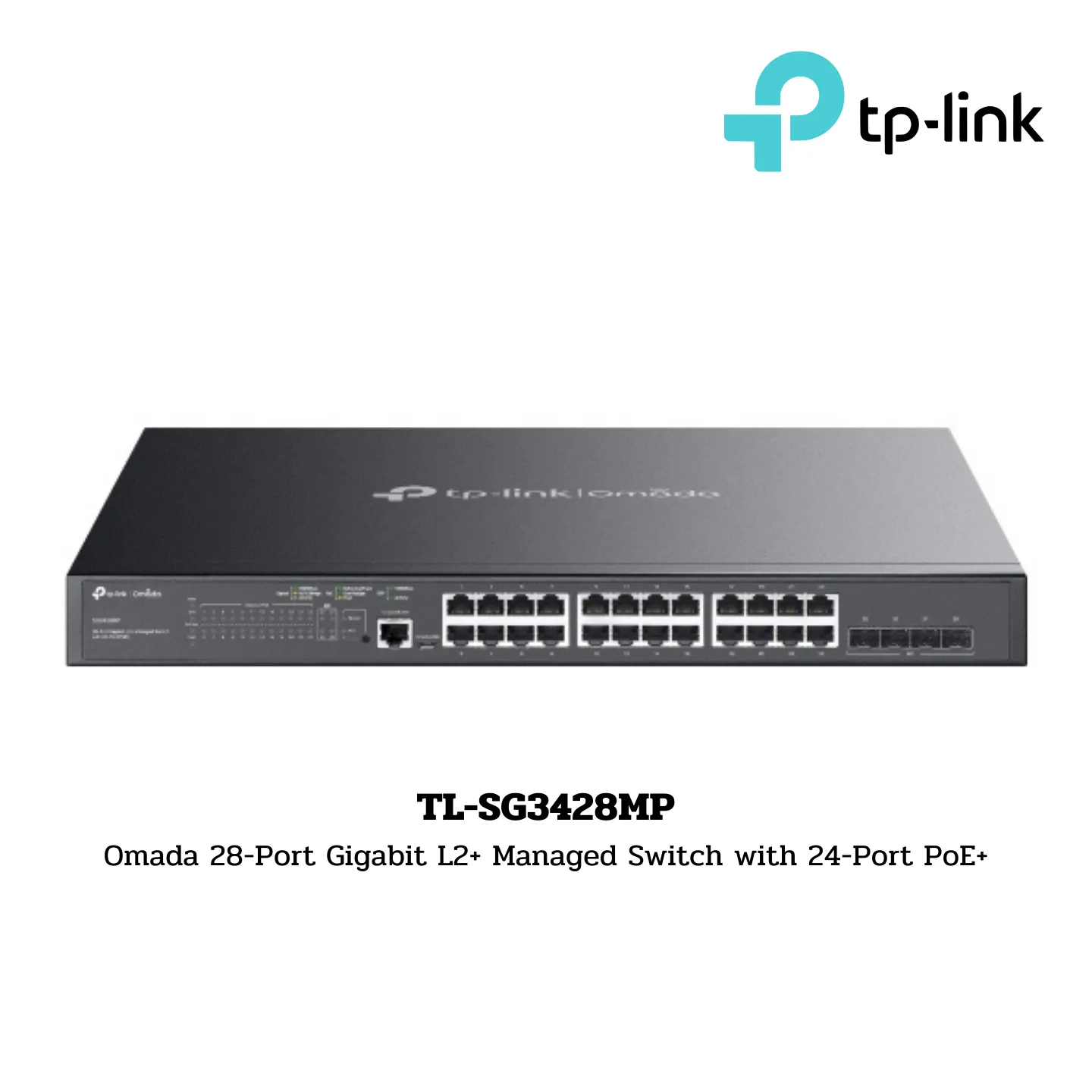

Switch TP-Link รุ่น TL-SG3428MP Omada 28-Port Gigabit L2+ Managed Switch

TL-SG3428MP
Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

• Ports:
  • 24× Gigabit PoE+ Ports
  • 4× Gigabit SFP Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Specification:
  • 802.3at/af, 384 W PoE Power, 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Integration with Omada SDN Controller, Static Routing, OAM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Hardware Features:

• Interface:
  • 24× 10/100/1000 Mbps RJ45 PoE+ Ports
  • 4× Gigabit SFP Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Fan Quantity:
  • 2
• Physical Security Lock:
  • Yes
• Power Supply:
  • 100-240 V AC~50/60 Hz
• PoE Ports (RJ45):
  • Standard: 802.3at/af compliant
  • PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port)
  • Power Budget: 384 W
• Dimensions (W x D x H):
  • 17.3×13.0×1.7 in (440×330×44 mm)
• Mounting:
  • Rack Mountable

Max Power Consumption:

• 480.1 W (110 V/60 Hz with 384 W PD connected)
• Max Heat Dissipation: 1637.14 BTU/hr (110 V/60 Hz with 384 W PD connected)

Performance:

• Switching Capacity:
  • 56 Gbps
• Packet Forwarding Rate:
  • 41.66 Mpps
• MAC Address Table:
  • 16K
• Packet Buffer Memory:
  • 12 Mbit
• Jumbo Frame:
  • 9 KB

Software Features:

• Quality of Service:
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling:
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP+WRR
  • Bandwidth Control: Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

L2 and L2+ Features:

• 128 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 512 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)

L2 Multicast:

• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

ISP Features:

• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
• sFlow

VLAN:

• VLAN Group:
  • Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN: 30 Entries
  • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
  • Voice VLAN

Access Control List:

• Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL applies to Port/VLAN

Security:

• IP-MAC-Port Binding:
  • 512 Entries
  • DHCP Snooping
  • ARP Inspection
  • IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding:
  • 512 Entries
  • DHCPv6 Snooping
  • ND Detection
  • ND Snooping
  • IPv6 Source Guard: 100 Entries
• DoS Defend
• DHCP Filter
• Static/Dynamic Port Security:
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control:
  • kbps/ratio/pps control mode
• 802.1X:
  • Port-based authentication
  • Mac-base authentication
  • VLAN Assignment
  • MAB
  • Guest VLAN
  • Radius authentication and accountability support
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6:

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs:

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB (RFC1757, rmon 1,2,3,9)

Management:

• Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller.
• Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller.

Management Features:

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3: Trap/Inform
• RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Others:

• Certification: CE, FCC, RoHS
• Package Contents:
  • SG3428MP Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
• System Requirements:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux

Environment:

• Operating Temperature: 0–45 ℃ (32–113 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
