APC Basic Rack PDU รุ่น AP9565

AP9565

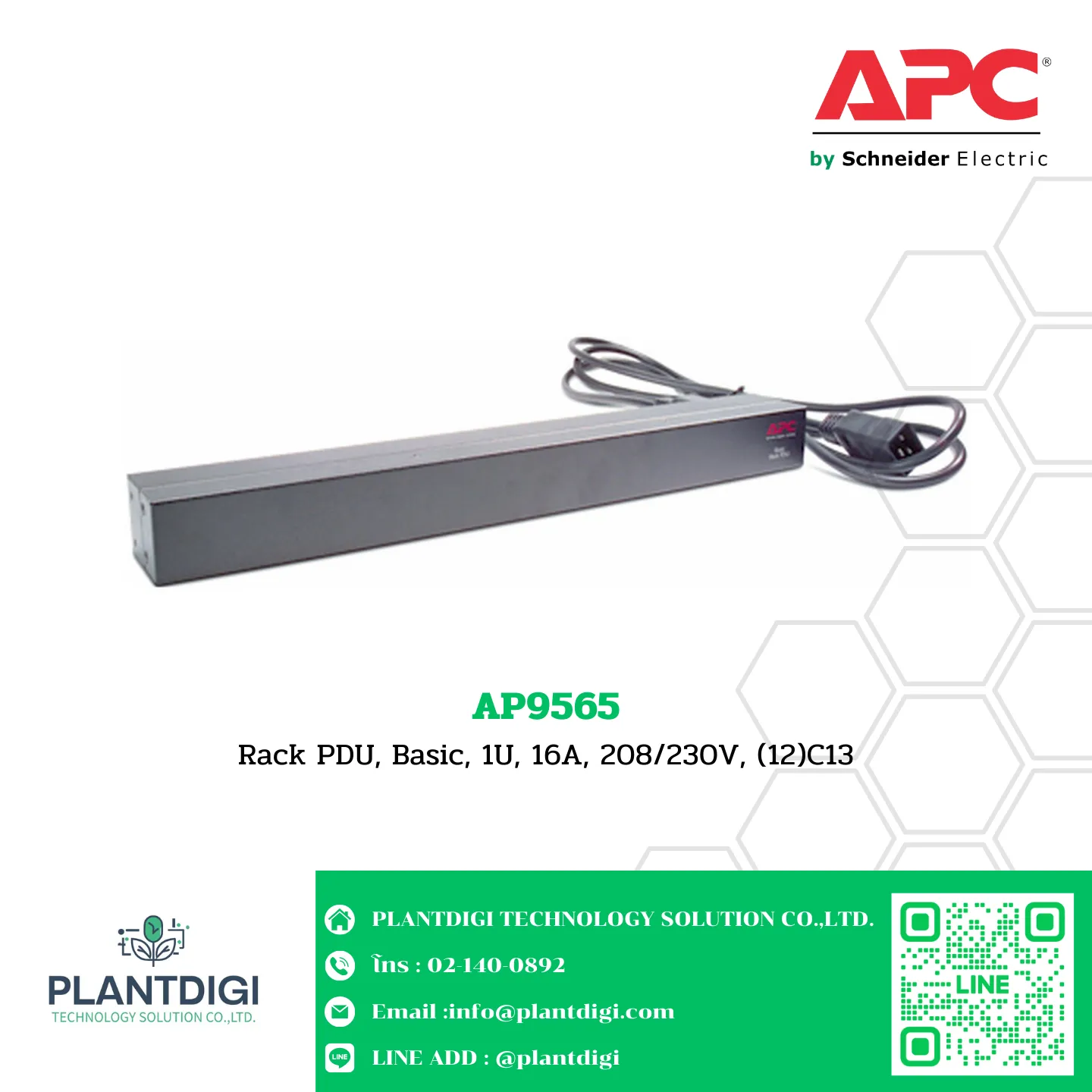

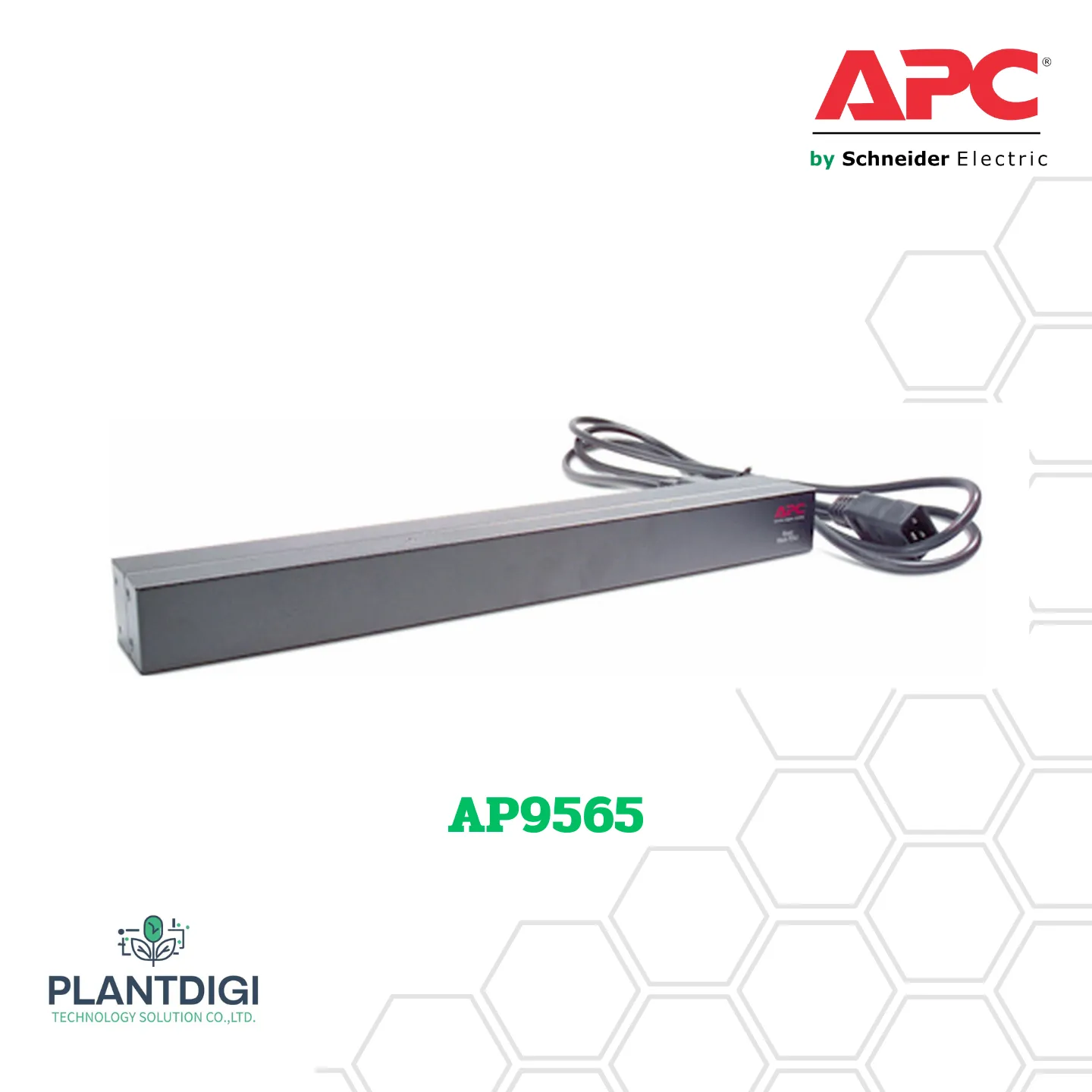

Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13

———
Overview
———
Presentation: Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Specifications

—–
Main
—–
Name: AP9565
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 2.5 m
Number of cables: 1
Provided equipment: Installation guide, Rack mounting brackets
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 4.4 cm
Width: 44.7 cm
Output Voltage: 208 V, 230 V
Depth: 5.7 cm
Net weight: 2.05 kg
mounting location: Front, Rear
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 1U
mounting position: Horizontal
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz

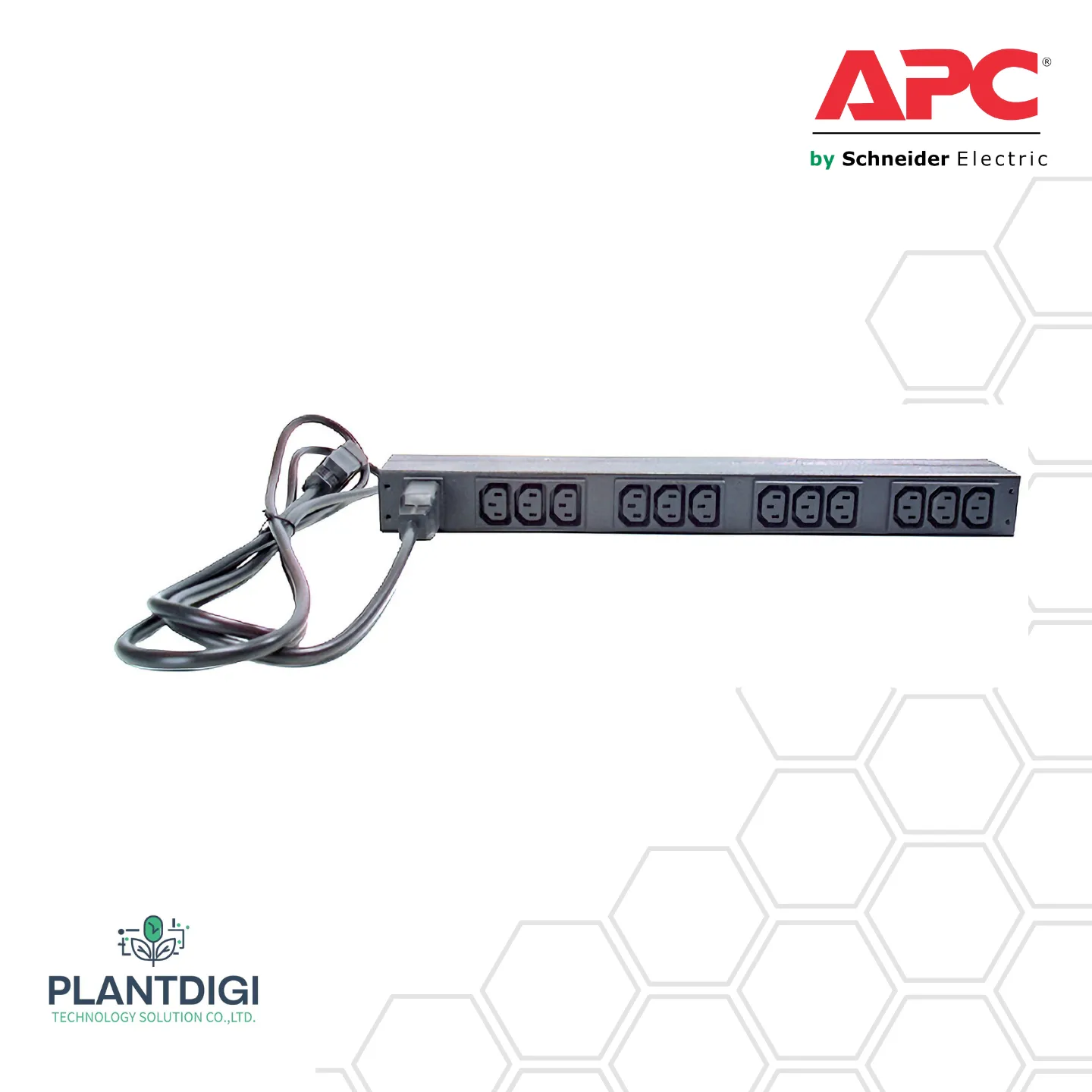

Outlet type and quantity: 12 IEC 60320 C13
————
Environment
————
product certifications: cUL listed, CE, Queensland Australia, UL listed, VDE
Standards: UL 60950
Ambient air temperature for operation: 0…45 °C
Relative humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 0…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7 cm
Package 1 Width: 46.4 cm
Package 1 Length: 22.9 cm
Package 1 Weight: 3.632 kg
———————
Contractual warranty
———————
Warranty: 2 years repair or replace
