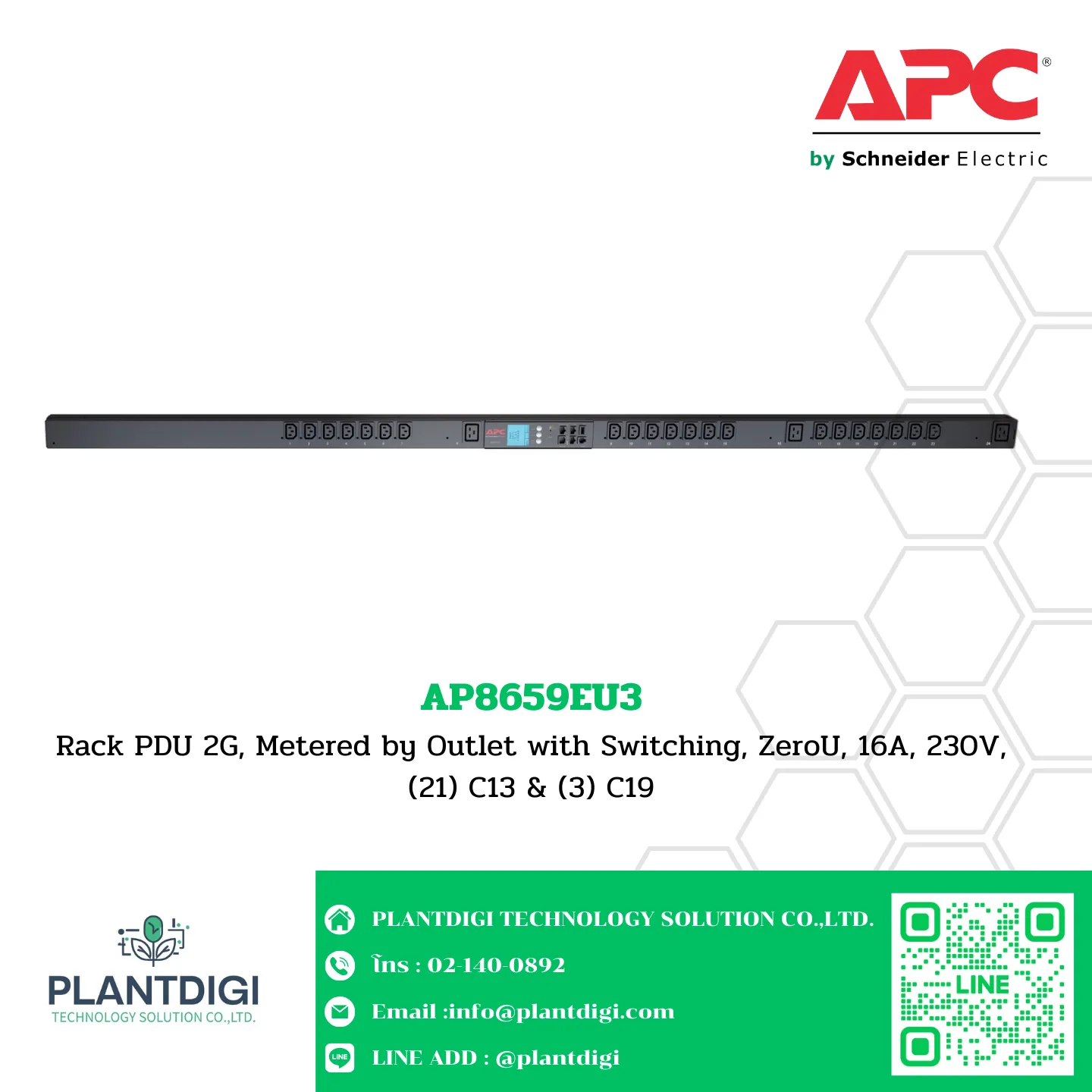

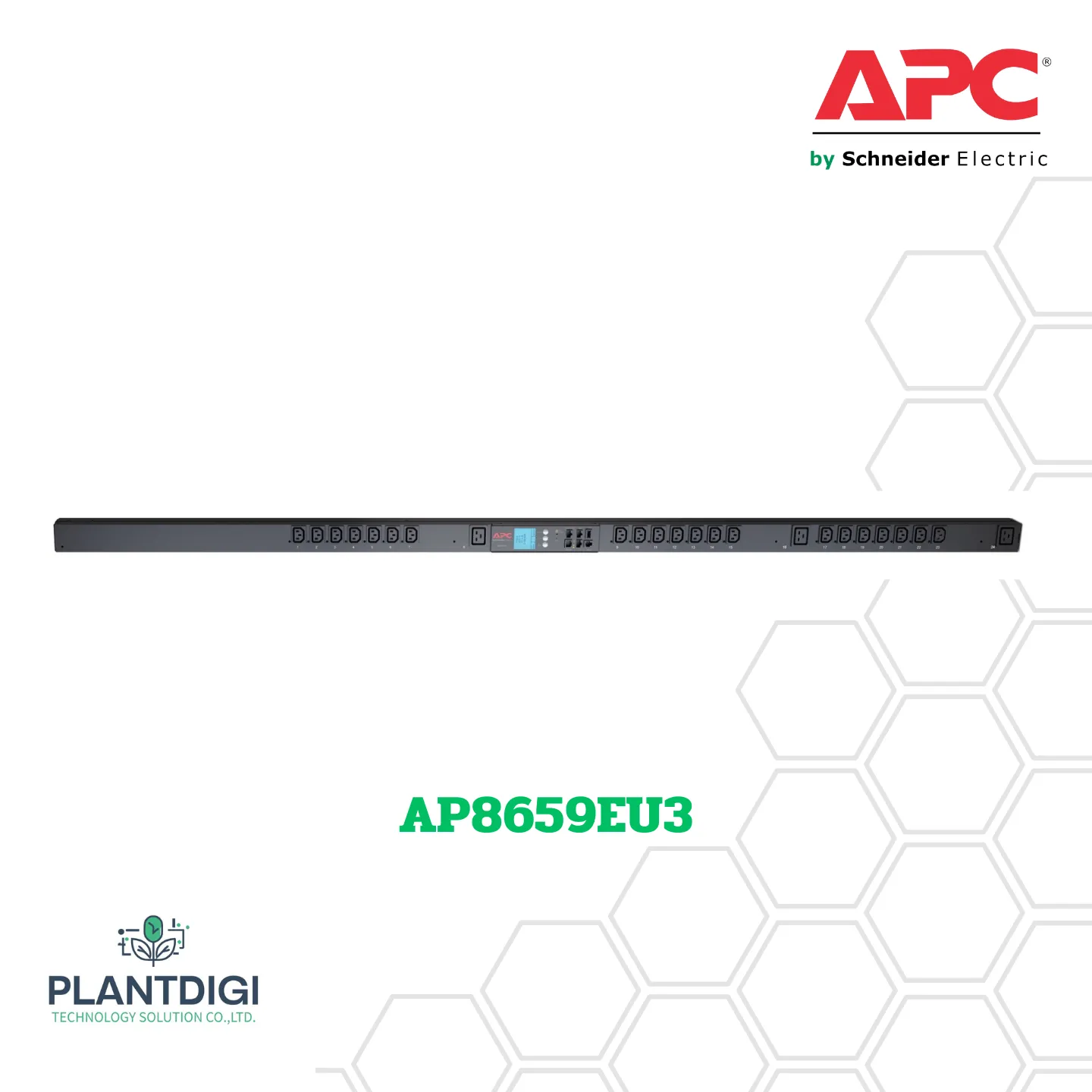

APC Metered-by-Outlet with Switching Rack PDU รุ่น AP8659EU3

AP8659EU3
Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 230V, (21) C13 & (3) C19

Specifications

—-
Main
—–
Colour: Black
Product or component type: PDU
PDU type: Switched metered outlet
Cord length: 3.00 m

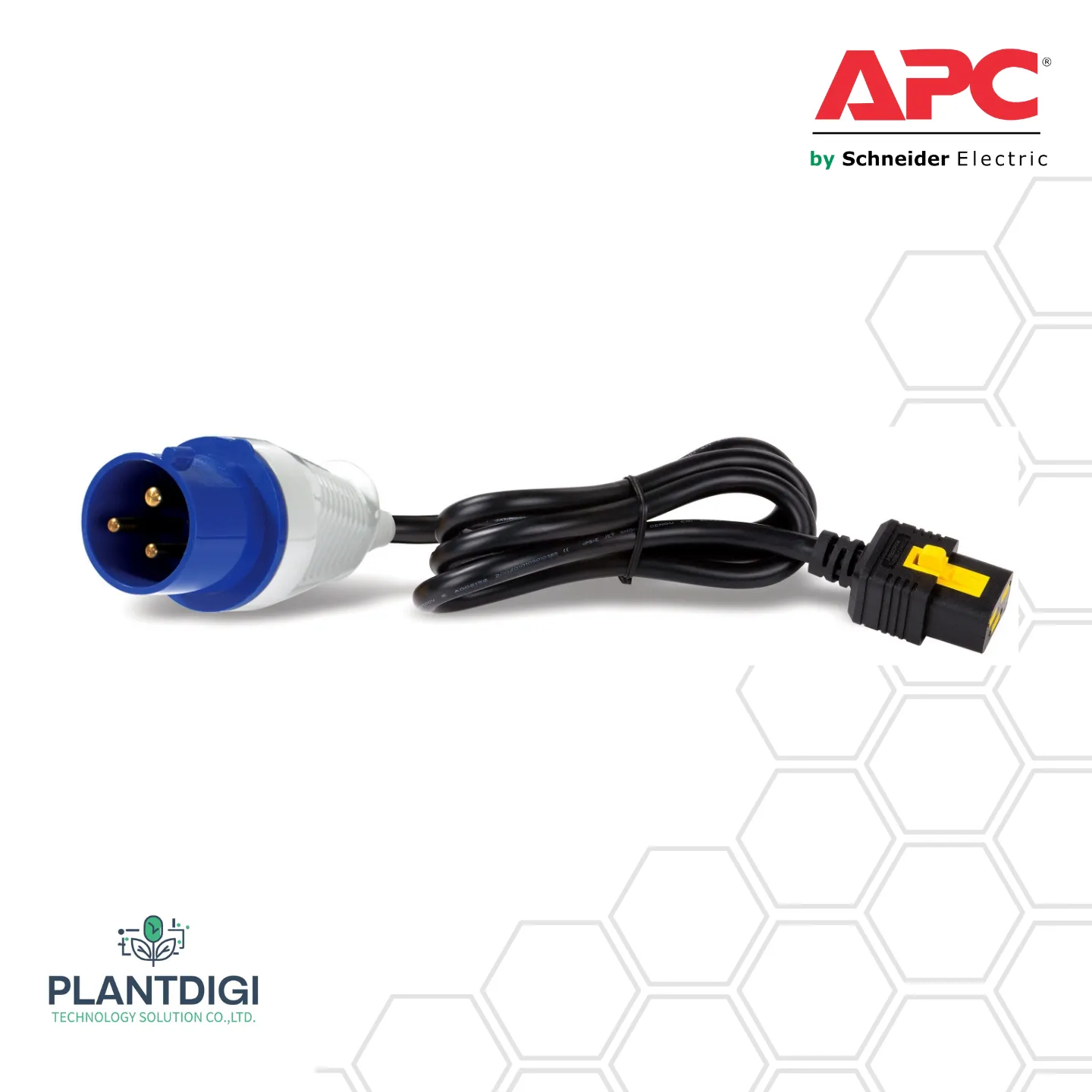

Provided equipment: CAN port terminator, Installation guide, Locking input power cord, Rack mounting brackets, Safety guide, Serial configuration cable

————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 182.9 cm
Width: 5.6 cm
Output Voltage: 100 V, 200 V, 208 V, 230 V
Depth: 5.1 cm
Net weight: 6.77 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 16 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Permissible voltage: 100…240 V
Input current limits: 16 A
Load capacity: 3700 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 21 IEC 60320 C13, 3 IEC 60320 C19

————
Environment
————
product certifications: PSE, UL listed, VCCI class A, VDE
Standards: EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 203.8 cm
Package 1 Width: 16.2 cm
Package 1 Length: 11.7 cm
Package 1 Weight: 9.031 kg

———————
Contractual warranty
———————
Warranty: 2 years repair or replace
