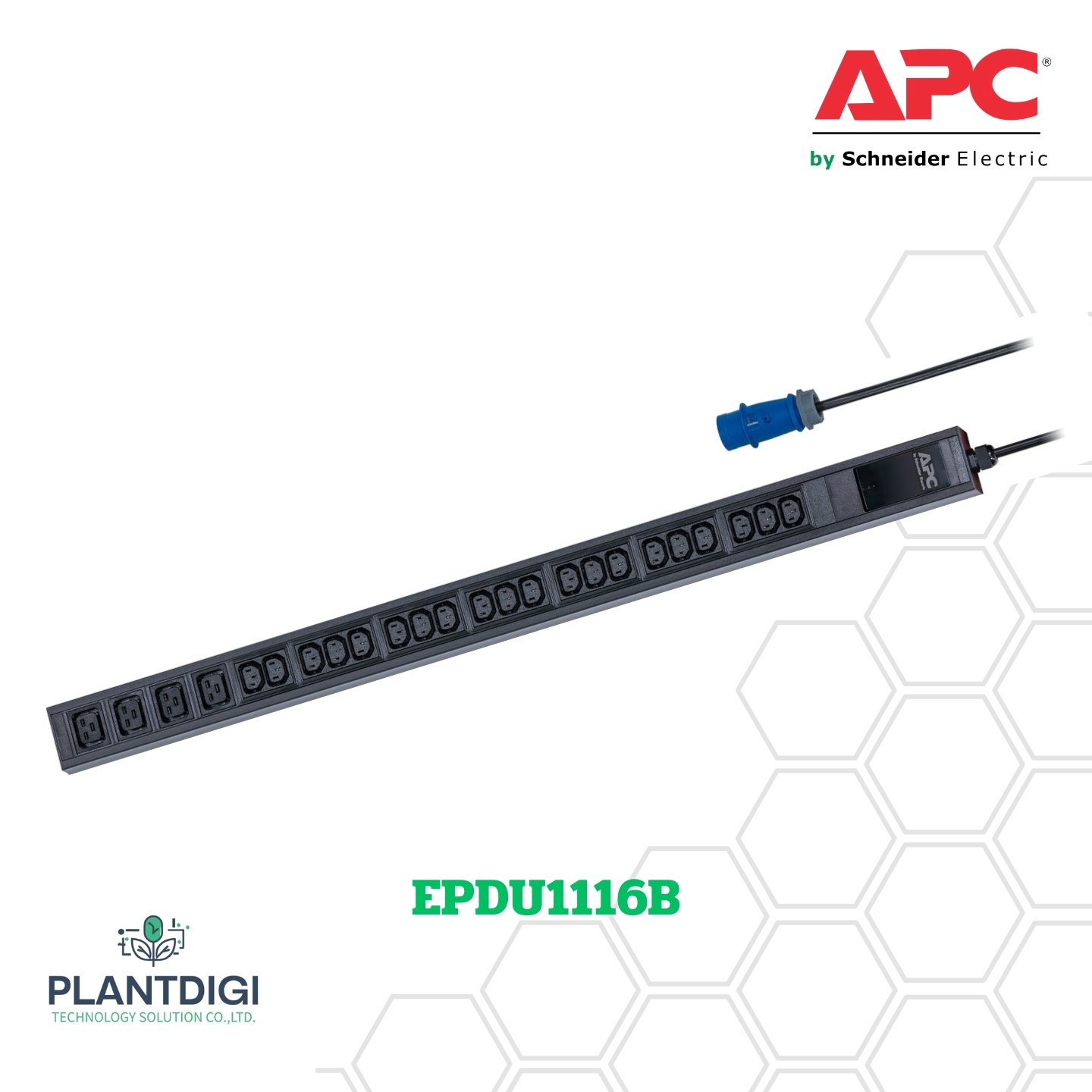

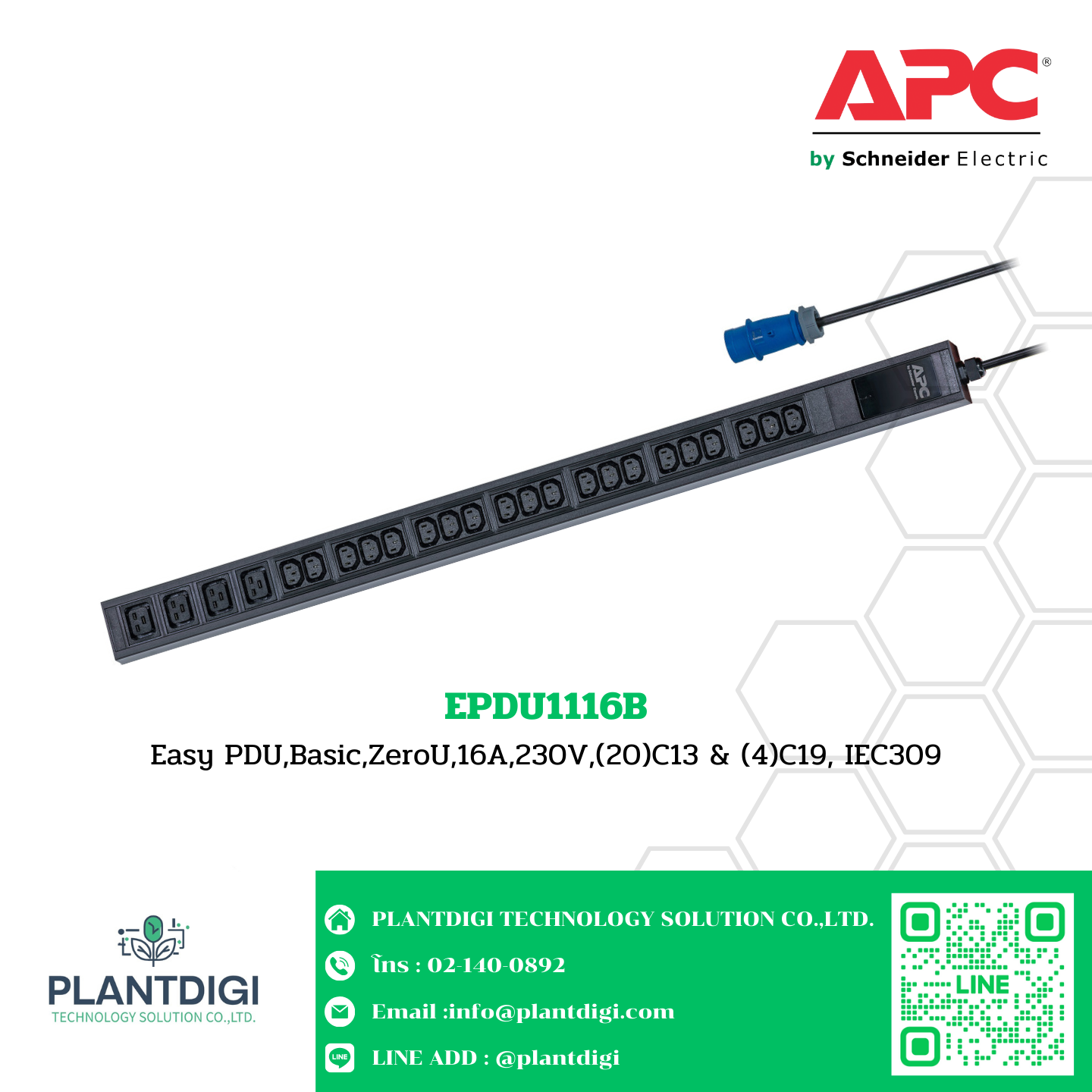

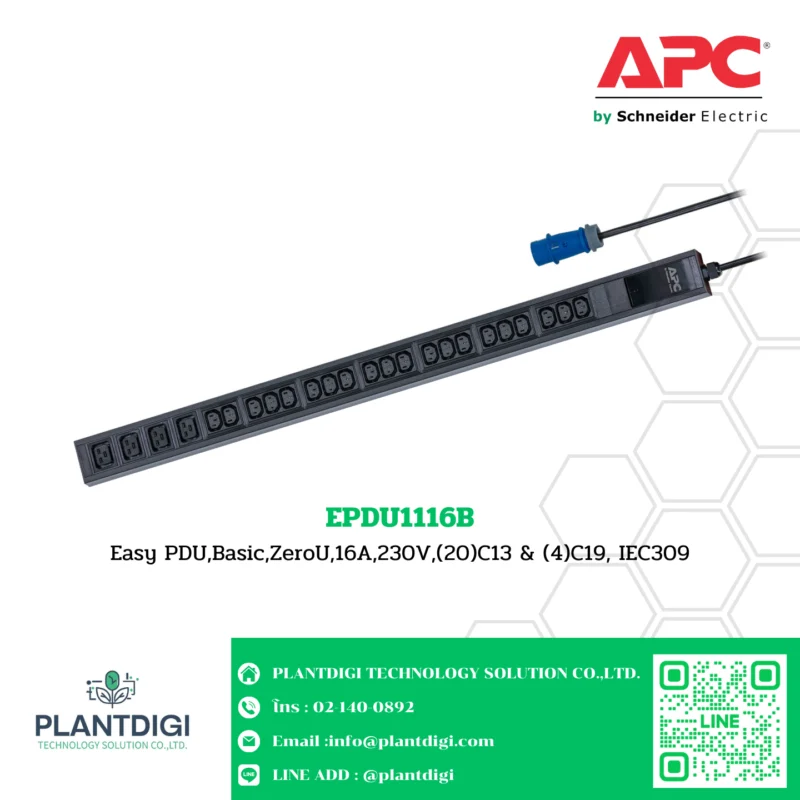

APC Easy Basic Rack PDU รุ่น EPDU1116B

EPDU1116B

Easy PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC309

Specifications

—–
Main
—–
Name: EPDU1116B
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, Vertical mounting brackets

————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 90.2 cm
Width: 6.2 cm
Output Voltage: 230 V
Depth: 4.44 cm
Net weight: 2.2 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 16 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 20 IEC 60320 C13, 4 IEC 60320 C19

————
Environment
————
product certifications: CE, TÜV
Ambient air temperature for operation: 0…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 132 cm
Package 1 Width: 11 cm
Package 1 Length: 16 cm
Package 1 Weight: 2.98 kg

———————
Contractual warranty
———————
Warranty: 1 year repair or replace
