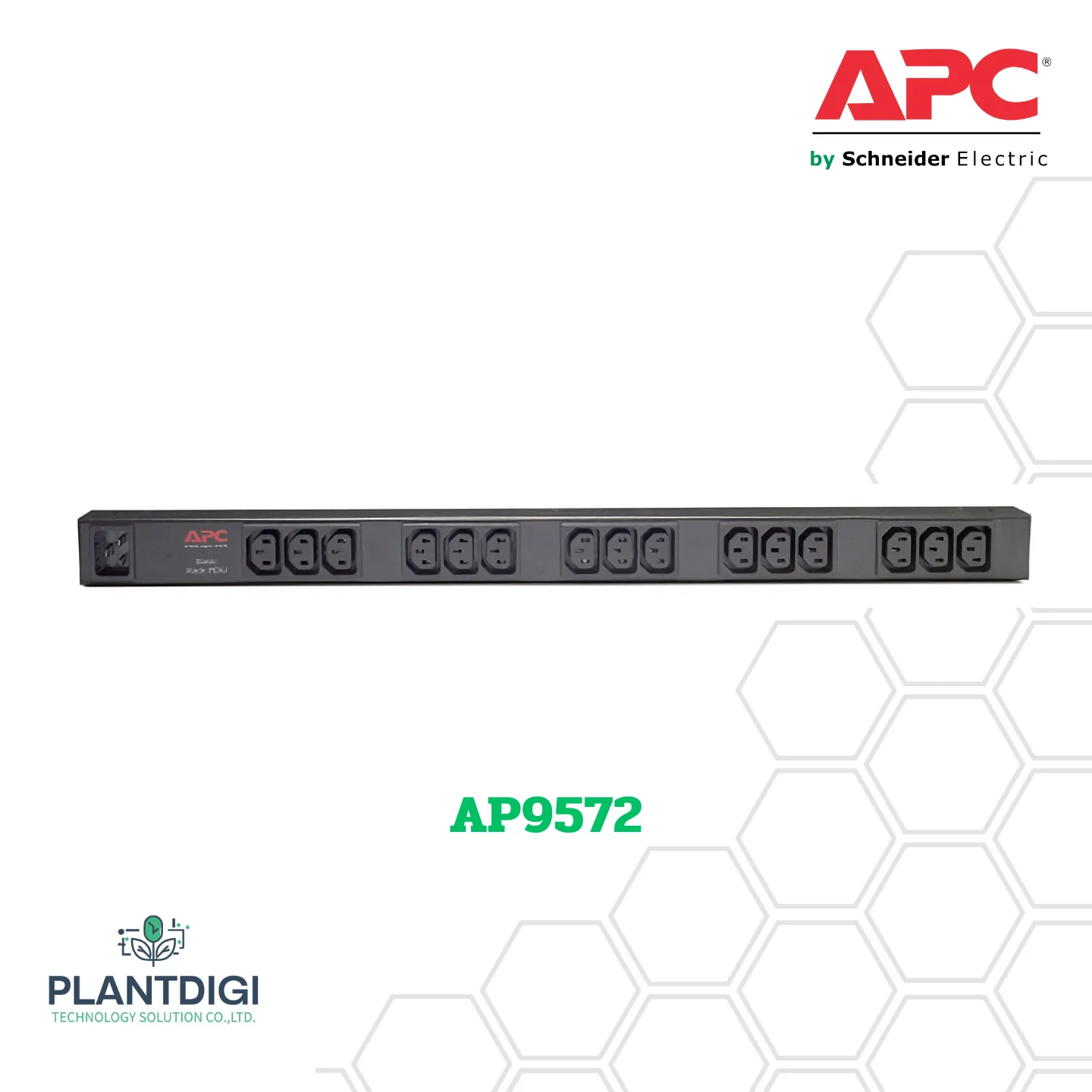

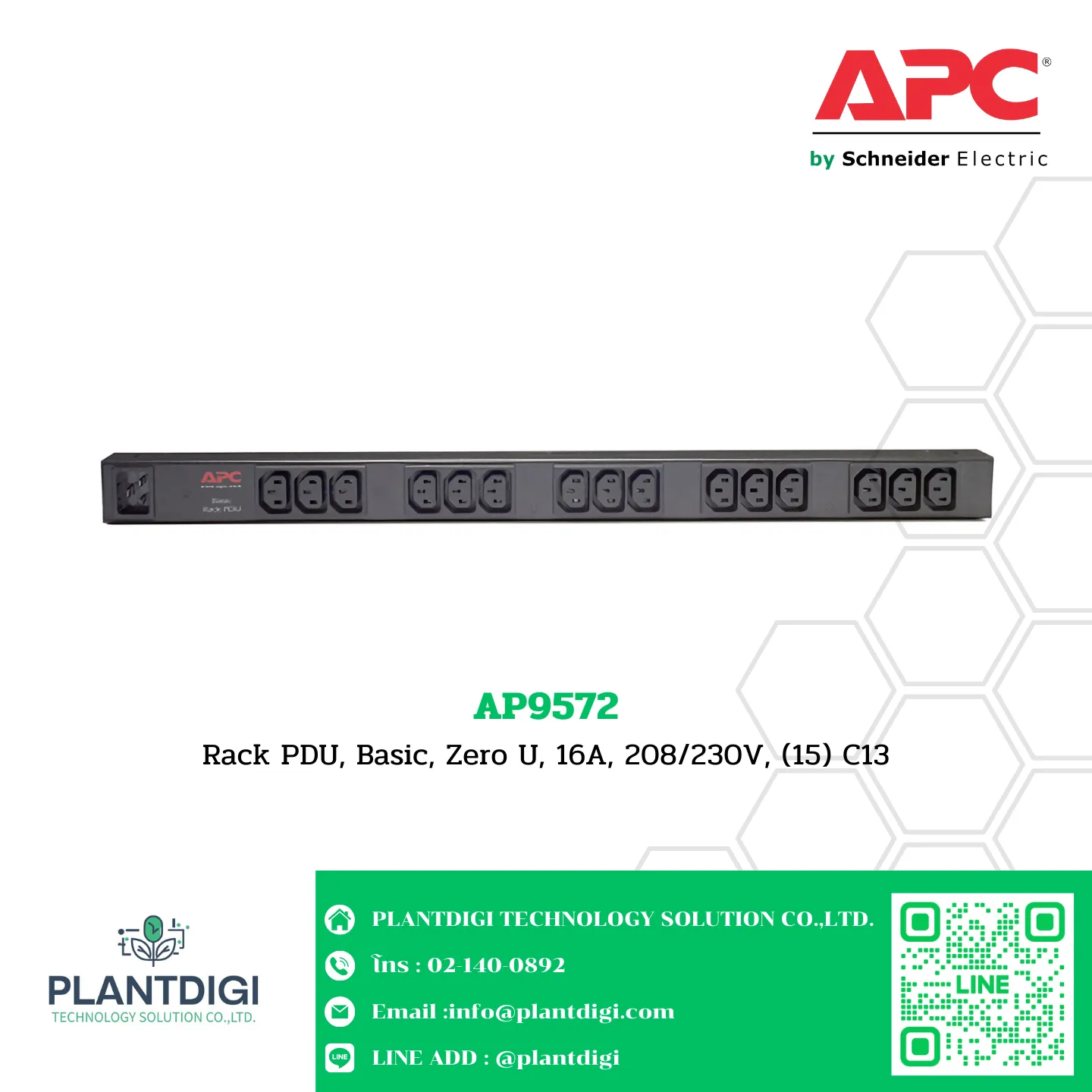

APC Basic Rack PDU รุ่น AP9572

AP9572
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13

Specifications

—–
Main
—–
Name: AP9572
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 2.5 m
Number of cables: 1
Provided equipment: Rack mounting brackets, Toolless mounting kit, User manual
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 62 cm
Width: 4.4 cm
Output Voltage: 200 V, 208 V, 230 V
Depth: 4.4 cm
Net weight: 2 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Max line current: 16 A
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 15 IEC 60320 C13
————
Environment
————
product certifications: cUL listed, CE, Queensland Australia, UL listed, VDE
Standards: UL 60950
Ambient air temperature for operation: 0…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 63.8 cm
Package 1 Width: 16.8 cm
Package 1 Length: 14.6 cm
Package 1 Weight: 2.724 kg
———————
Contractual warranty
———————
Warranty: 2 years repair or replace
