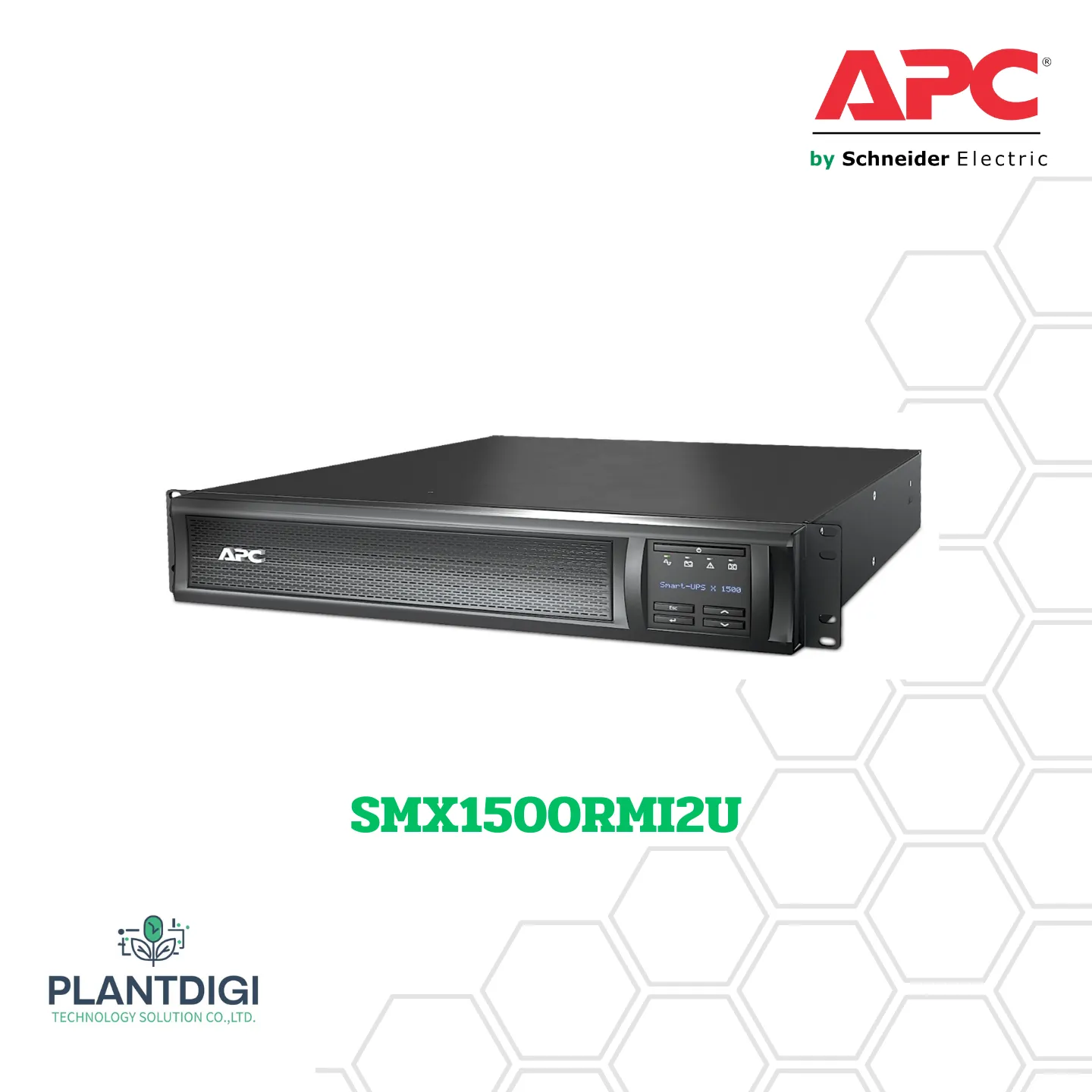

เครื่องสำรองไฟ APC SMX รุ่น SMX1500RMI2U

APC SMX1500RMI2U

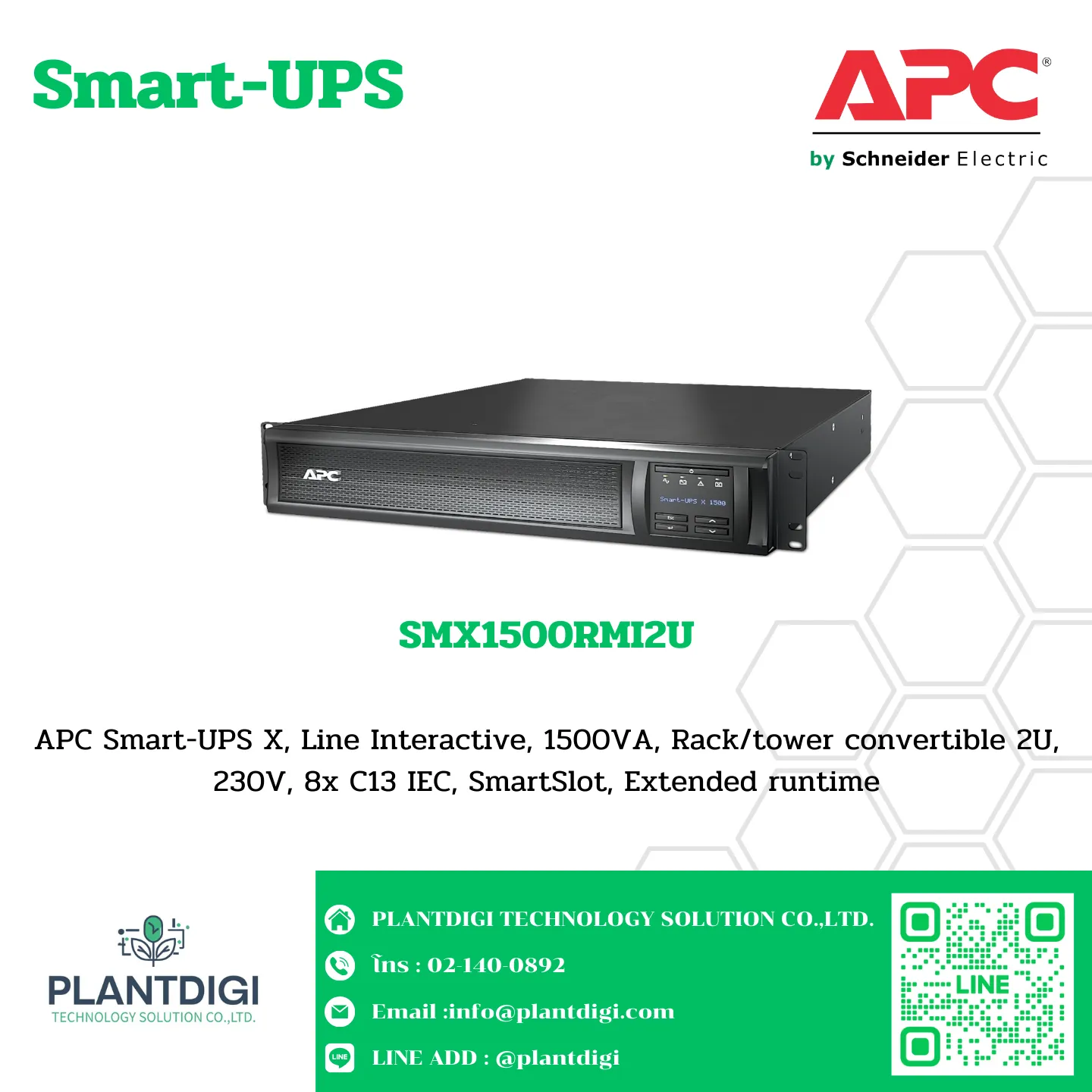

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime

———
Overview
———–
Presentation: Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time : Usually Ships within 2 Weeks

————-
Main
————–
รันไทม์สําหรับโหลด 1200 W
ต่ำสุด-สูงสุด: 120-1200 W 5min 45s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 1200 W
Rated power in VA: 1500 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 320 C14

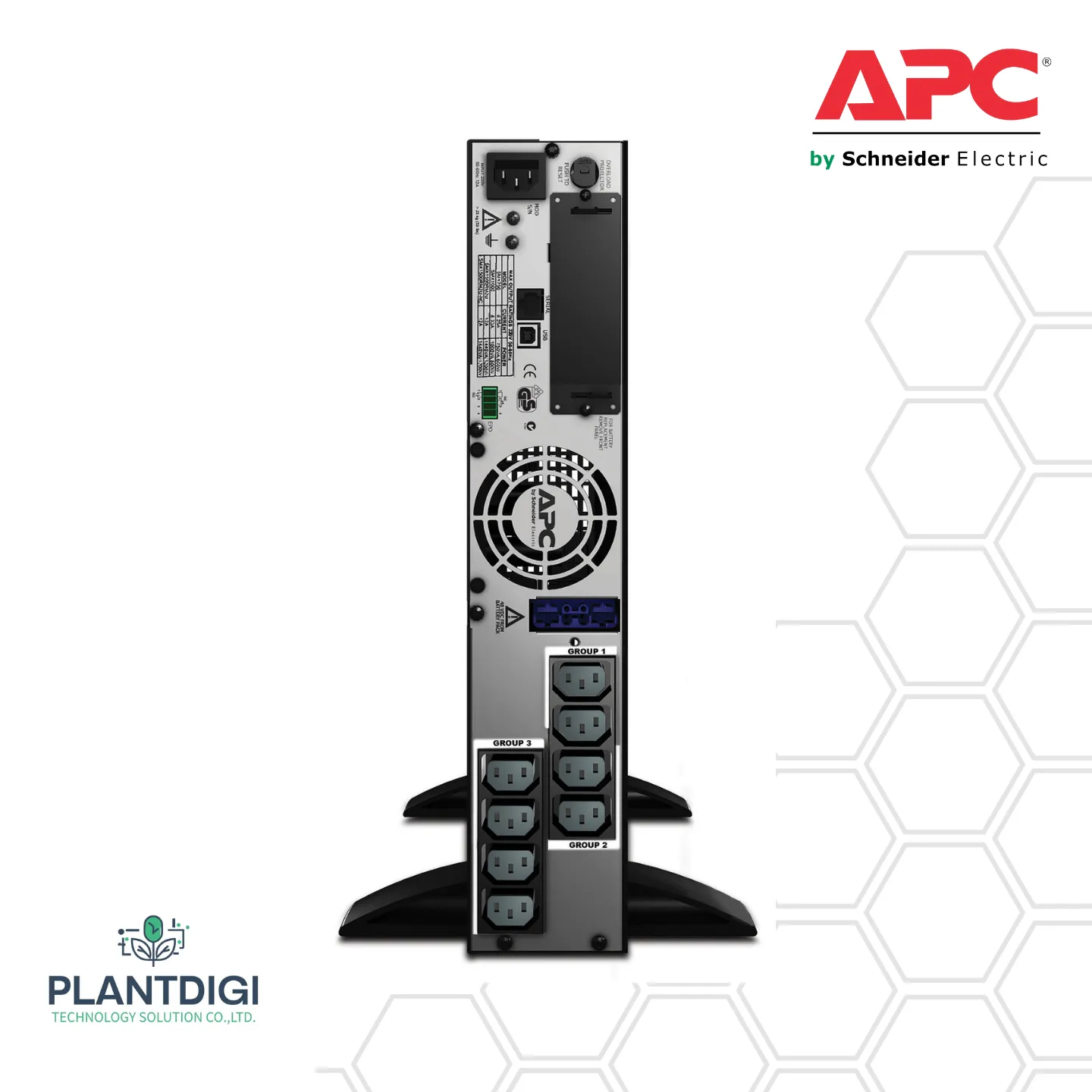

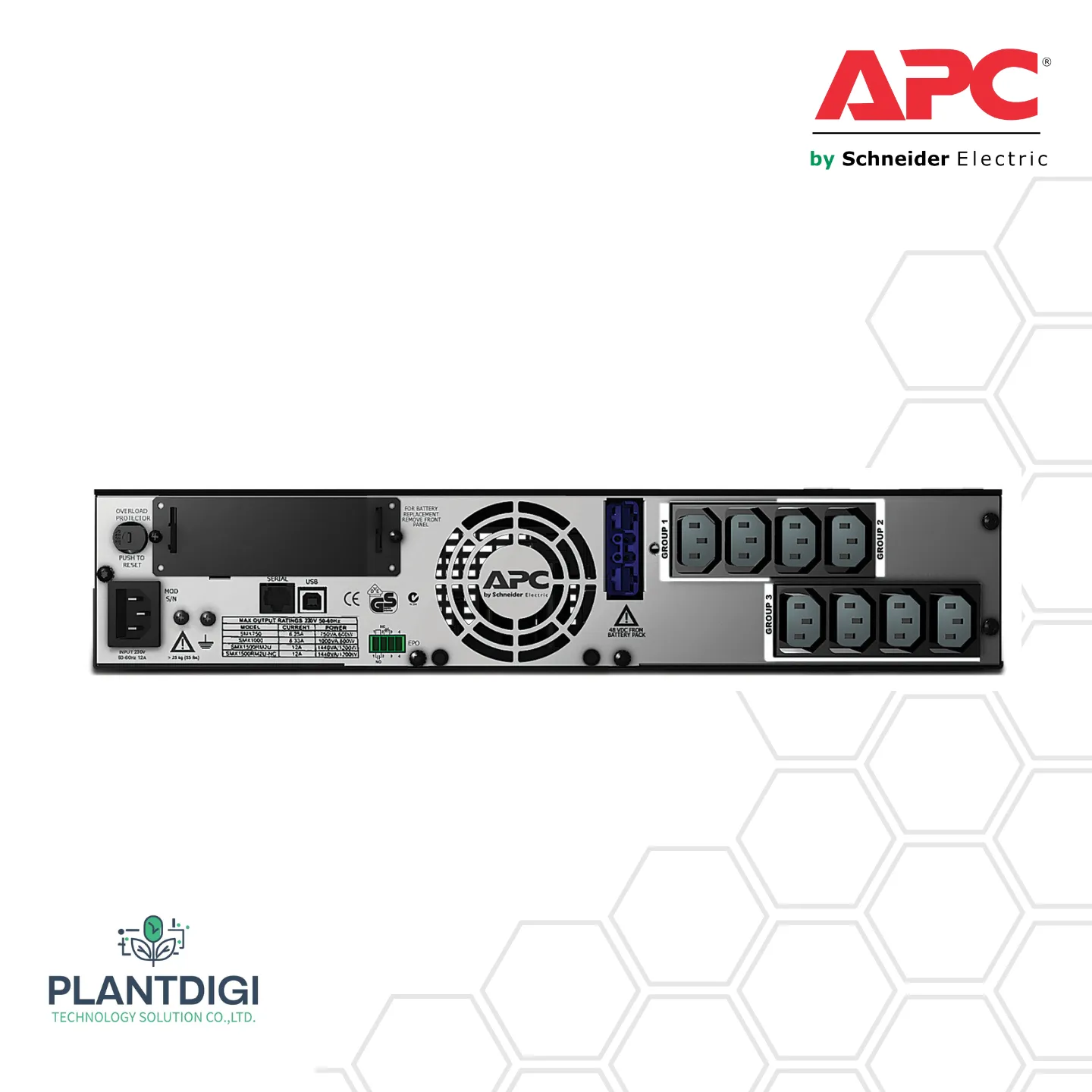

output connection type: 8 IEC 320 C13 , 2 IEC Jumpers
number of rack unit: 2U
Cable length: 1.8 m
Number of cables: 1
Battery type: Lead-acid battery
Provided equipment: CD with software, Documentation CD, Installation guide, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Range of product: Smart-UPS

—————
Complementary
—————
Communication port type: SmartSlot

—————-
Batteries & Runtime
——————-
Extended runtime: 0
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: APCRBC115
Battery charger power: 103 W rated

————-
General
————
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Extended run
Redundant: No

———
Physical
———
Colour: Black
Height: 8.9 cm
Width: 43.2 cm
Depth: 49 cm
Net weight: 24.82 kg
Mounting preference: Lower
mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes

—–
Input
—–
Switching current capacity: 10 A
Input voltage limits: 151…302 V adjustable
160…286 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

——-
Output
——-
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 1500 VA
Maximum configurable power in W: 1200 W
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains

————
Conformance
————
Product certifications: CE, CSA, EAC, RCM, UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
acoustic level: 40 dBA
Heat dissipation: 133 Btu/h
Operating altitude: 0…10000 ft
Ambient air temperature for operation: 0…45 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.0000000000…15240.0000000000 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Emergency power off: Yes
Free slots: 1
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 645 J
Noise suppression: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.6 cm
Package 1 Width: 58.9 cm
Package 1 Length: 62 cm
Package 1 Weight: 30 kg
Unit Type of Package 2: PAL
Number of Units in Package 2: 16
Package 2 Height: 133 cm
Package 2 Width: 100 cm
Package 2 Length: 120 cm
Package 2 Weight: 524 kg

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery

สอบถามค่าติดตั้ง Service Installation
