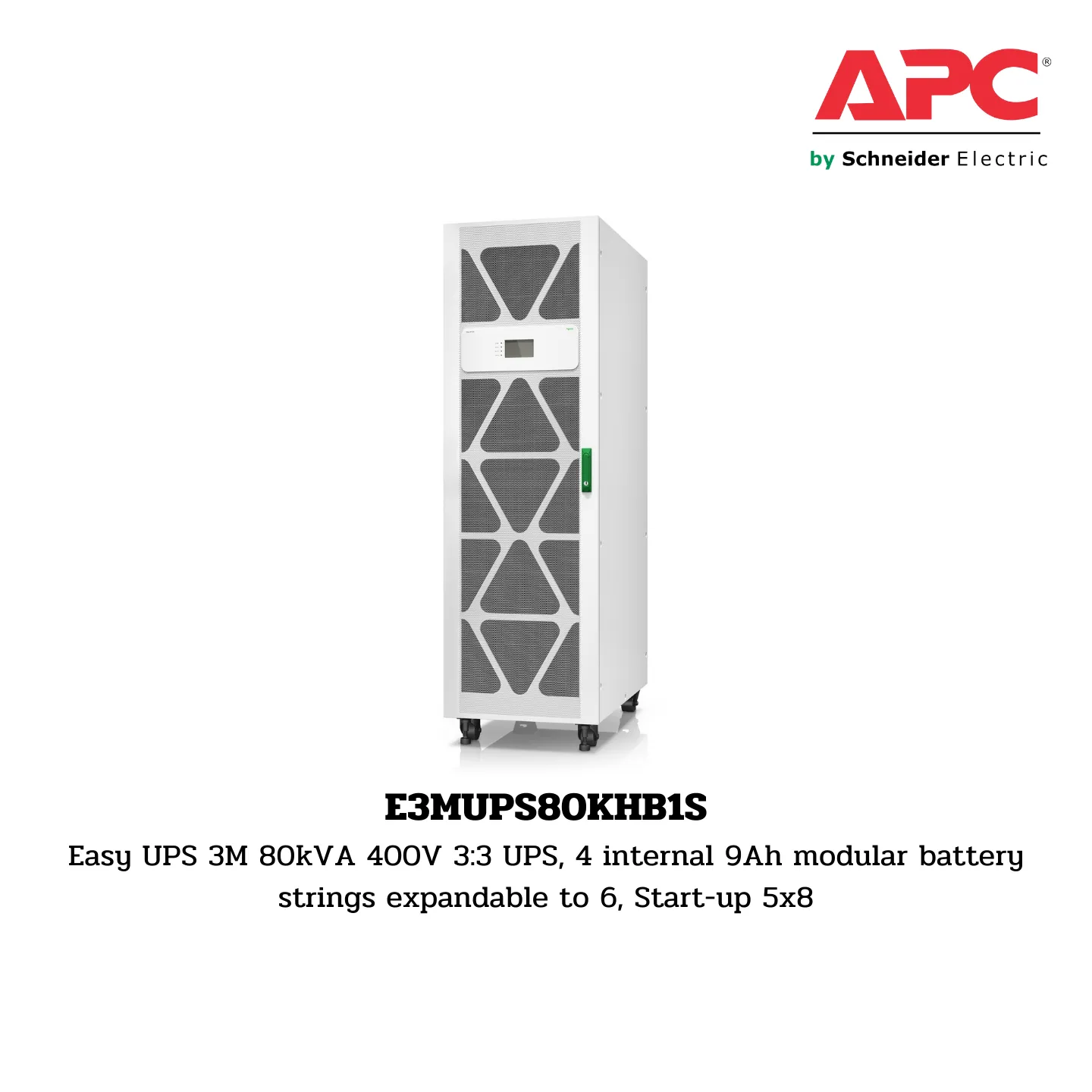

เครื่องสำรองไฟ APC Easy UPS 3M รุ่น E3MUPS80KHB1S

APC E3MUPS80KHB1S
Easy UPS 3M 80kVA 400V 3:3 UPS, 4 internal 9Ah modular battery strings expandable to 6, Start-up 5×8

Presentation

E3MUPS80KHB1S : Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 80 kVA 3-phase UPS. With advanced product features, robust electrical specifications, and compact design, the Easy UPS 3M makes business continuity easy for small and medium data centers and other business-critical applications. Includes 5×8 start-up service and 4 internal 9Ah modular battery strings, expandable to 6 for extended runtime.

Lead Time

• Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Other Output Voltage: 380 V, 415 V
• Rated Power: 80 kW / 80 kVA
• Provided Equipment: Dust filter, Installation guide, Start-up service
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: VRLA
• Battery Voltage: 240 V
• Number of Battery Filled Slots: 0
• Number of Battery Free Slots: 0
• Maximum Current Discharge: 222 A

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 197 cm (H) x 60 cm (W) x 100 cm (D)
• Net Weight: 771 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 146 A
• Max Short Time Withstand Current: 10 kA
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: 0.5 leading to 0.5 lagging without derating
• Input Power Factor: 0.99 at full load
• Input Voltage Limits: 342…477 V
• Number of Input Connectors: 1 hard wire 5-wire (3P + N + E)
• Network Frequency: 40…70 Hz

Output Specifications

• Maximum Configurable Power: 80 kVA / 80 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Harmonic Distortion: < 3% linear load and < 5% non-linear load
• Output Overload Operation: 10 minutes at 125%, 60 seconds at 150%
• UPS Type: Double conversion online
• Wave Type: Sine wave
• Bypass Type: Built-in static bypass

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…1500 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…4572 m
• Acoustic Level: 65 dBA
• Heat Dissipation: 14850 Btu/h
• IP Protection: IP20

Communications & Management

• Control Panel: Touch screen LCD user interface

Packing Units

• Package Type: PCE
• Package Height: 210.2 cm
• Package Width: 112.5 cm
• Package Length: 75 cm
• Package Weight: 387 kg
• Number of Units in Package: 1
