เครื่องสำรองไฟ APC Easy UPS 3S รุ่น E3SUPS15K3IB2

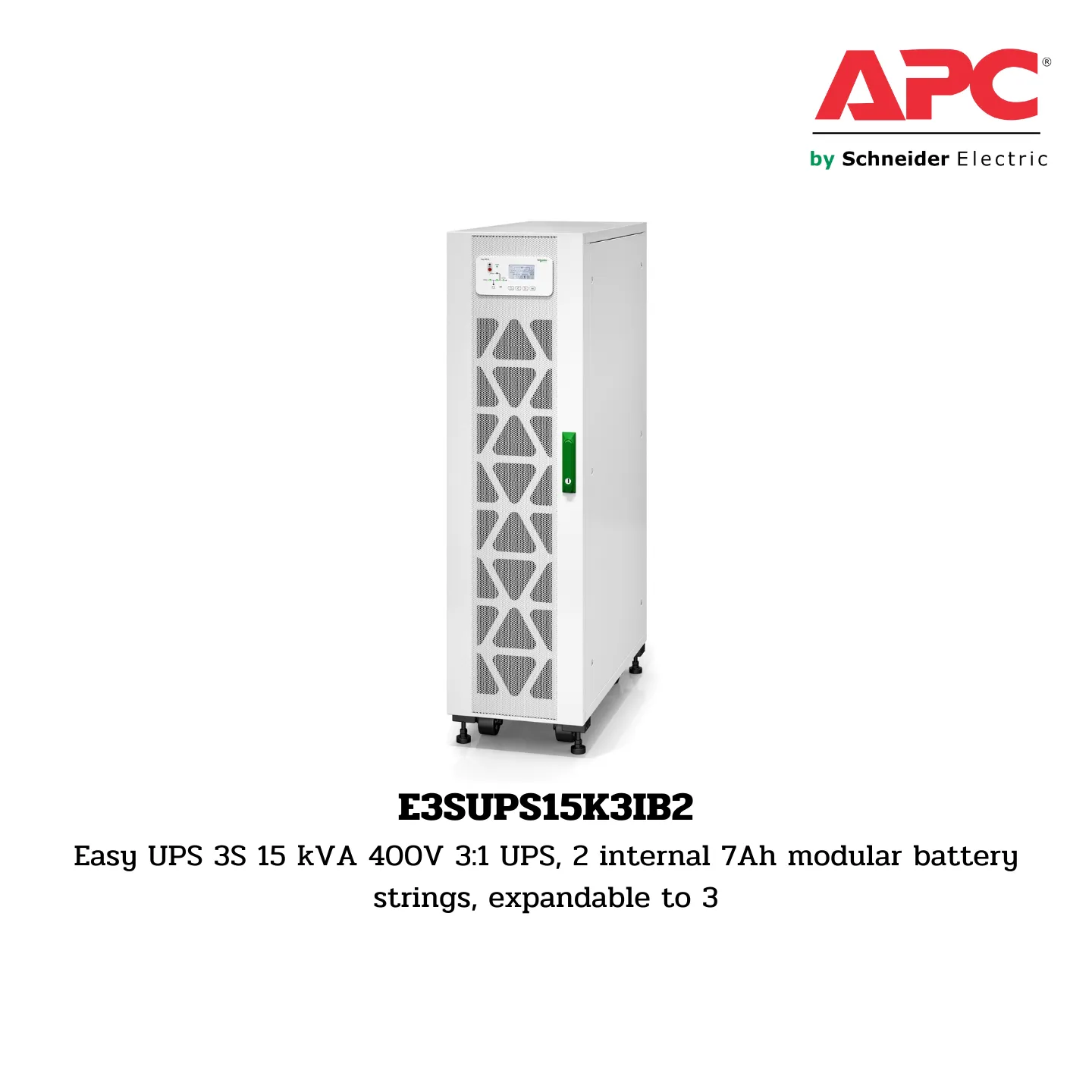

E3SUPS15K3IB2
Easy UPS 3S 15 kVA 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 3

Presentation

E3SUPS15K3IB2: A high-efficiency 3-phase UPS designed to ensure business continuity in small and medium data centers or electrical rooms. This 15 kVA UPS is easy to install, operate, maintain, and service. It includes a dust filter and conformance-coated boards for harsh environments and comes with two internal 7Ah modular battery strings, expandable to three strings for extended runtime.

Lead Time

• Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated Power: 15 kW / 15 kVA
• Provided Equipment: Dust filter, Installation guide
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: VRLA
• Battery Voltage: 240 V
• Maximum Short-Circuit Current: 10 kA
• Battery Slots: 2 filled, 1 free
• Max Current Discharge: 40 A
• Discharge Battery Voltage: +/- 198 V DC

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 140 cm (H) x 38 cm (W) x 90.7 cm (D)
• Net Weight: 211 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 28 A
• Input Harmonic Distortion: Less than 5% for full load
• Input Power Factor: 0.99 at full load
• Input Voltage Limits: 304…477 V
• Input Protection Type: Circuit breaker and fuse
• Network Frequency: 45…65 Hz

Output Specifications

• Maximum Configurable Power: 15 kVA / 15 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Harmonic Distortion: < 5.5% at 100% non-linear load
• Output Overload Operation: 10 minutes at 125%, 60 seconds at 150%
• Output Voltage Tolerance: +/- 1.5%
• UPS Type: Double conversion online

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3281 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…15240 m
• Acoustic Level: 60 dBA
• Heat Dissipation: 852 W
• IP Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 164 cm
• Package Width: 101.4 cm
• Package Length: 56.3 cm
• Package Weight: 229 kg
• Number of Units in Package: 1

สอบถามค่าติดตั้ง Service Installation
