HPE Access Point Aruba รุ่น JZ336A

JZ336A

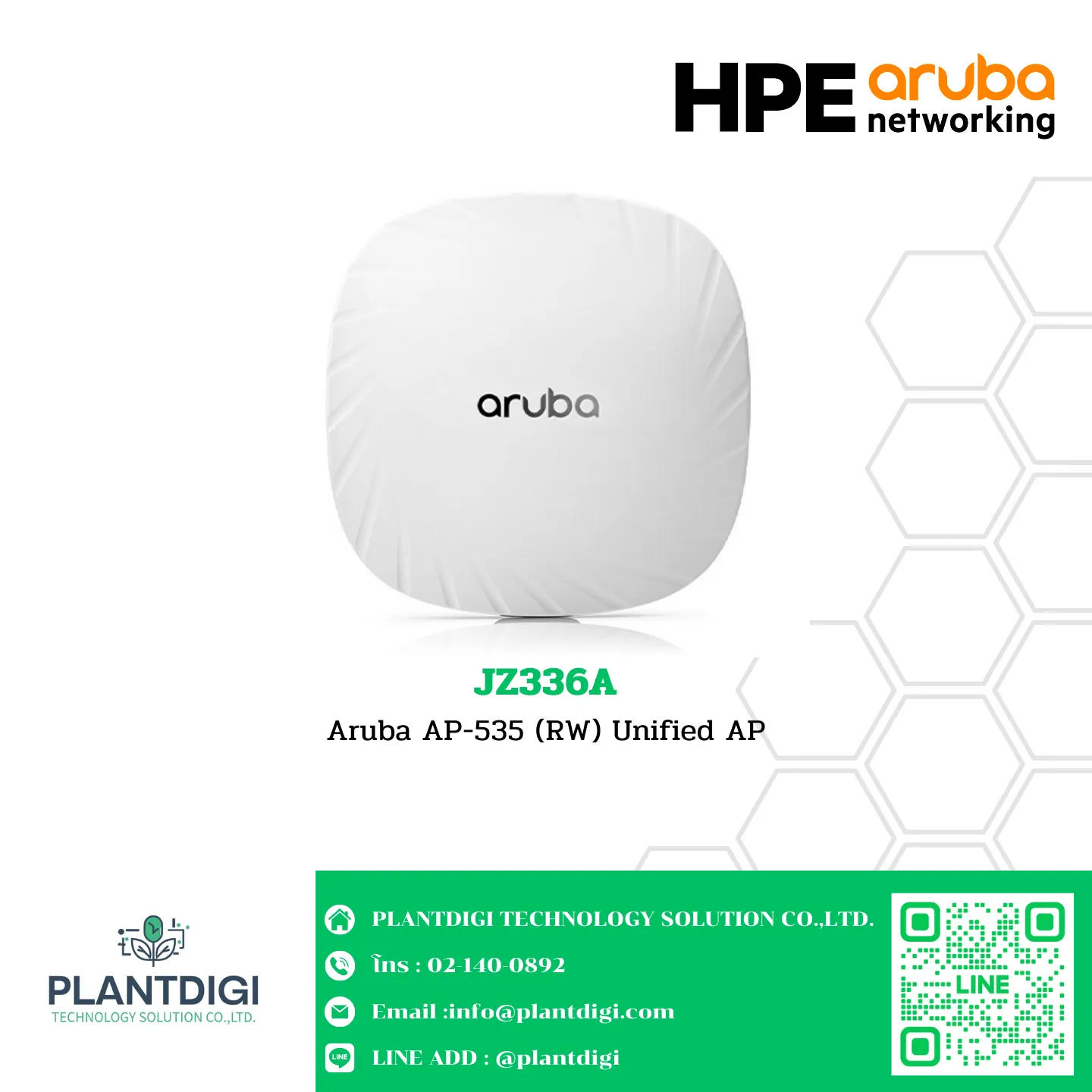

Aruba AP-535 (RW) Unified AP

Specification

Series

• Aruba AP-535

AP Type

• Indoor, dual radio, 5GHz and 2.4GHz 802.11ax
• 4×4 MIMO

Radios

5GHz Radio:

• Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously.

2.4GHz Radio:

• Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously.

Antenna

• 4 integrated dual-band downtilt omnidirectional antennas for 4×4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz.

Supported Data Rates (Mbps)

• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
• 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM
• 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM
• 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)
• 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

Dimensions and Weight

Unit (Excluding Mount Bracket):

• 240mm (W) x 240mm (D) x 57mm (H) / 9.4″ (W) x 9.4″ (D) x 2.1″ (H)
• 1,270g / 44.8oz

Shipping:

• 285mm (W) x 300mm (D) x 105mm (H) / 11.2″ (W) x 11.9″ (D) x 4.1″ (H)
• 1,930g / 68.1oz

Environmental Specifications

Operating Conditions:

• Temperature: 0°C to +50°C / +32°F to +122°F
• Humidity: 5% to 93% non-condensing
• AP is plenum rated for use in air-handling spaces
• ETS 300 019 class 3.2 environments

Storage and Transportation Conditions:

• Temperature: -40°C to +70°C / -40°F to +158°F
• Humidity: 5% to 93% non-condensing
• ETS 300 019 classes 1.2 and 2.3 environments

Capacity

• Support for up to 1,024 associated client devices per radio, and up to 16 BSSIDs per radio.

Certifications

• UL2043 plenum rating
• Wi-Fi Alliance:
  • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED 6 (ax)
  • WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
  • WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband
  • Passpoint (release 2)
  • Bluetooth SIG
