HPE Access Point Aruba รุ่น R4H17A

R4H17A

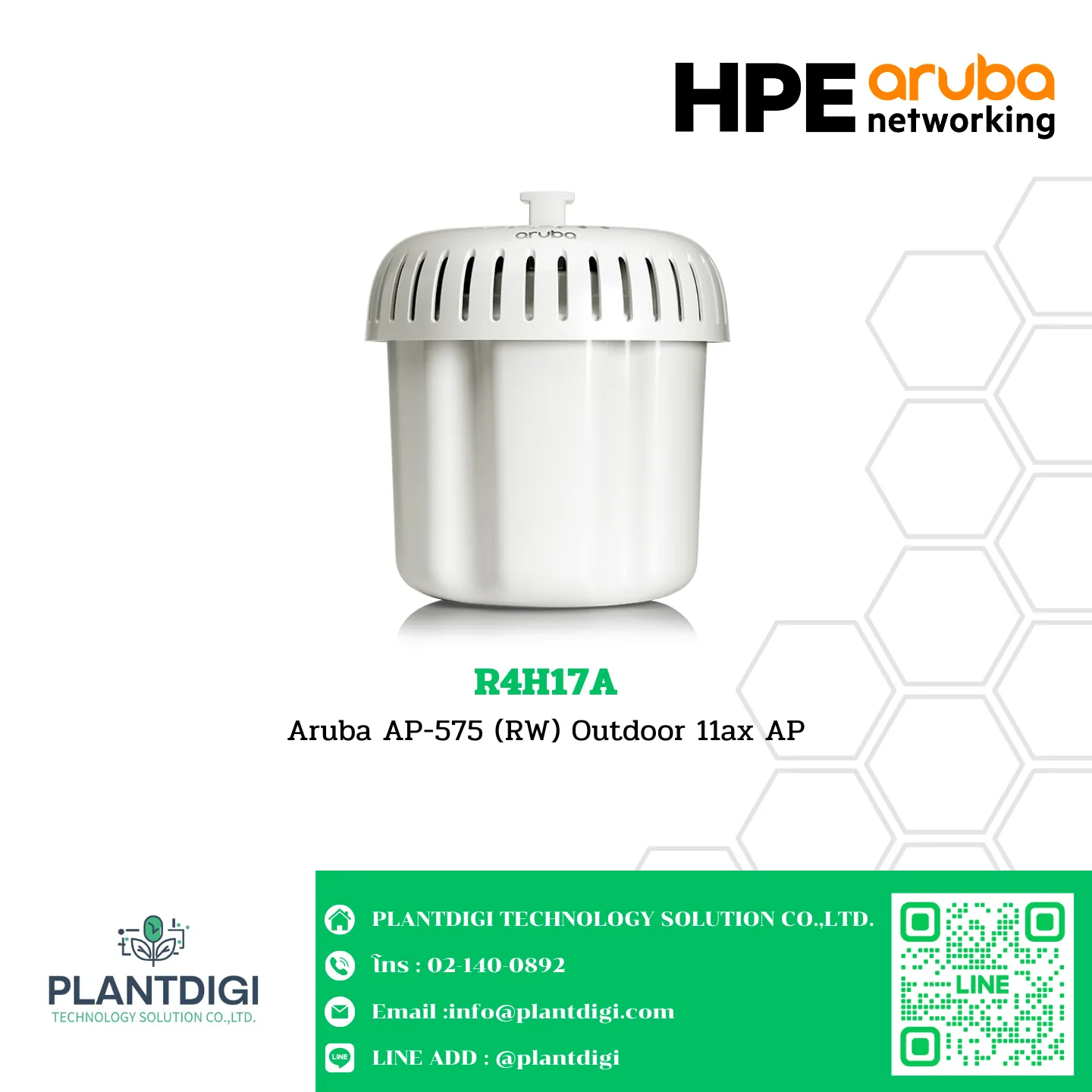

Aruba AP-575 (RW) Outdoor 11ax AP

Specifications

Ports:

• HPE SmartRate RJ-45 port, auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX. 2.5 Gbps speed complies with NBASE-T and 802.3bz.
• 10/100/1000BASE-T (RJ-45) port, auto-sensing link speed and MDI/MDX.

Mounting:

• Not included. Choose from AP-270-MNT-V1, AP-270-MNT-V2, AP-270-MNT-H1, AP-270-MNT-H2.

Input Voltage:

• IEEE 802.3at PoE, or direct DC power (via optional power supply).

Power Consumption:

• 25.6W, max (AP only).

Certifications:

• CB Scheme Safety
• cTUVus
• UL2043 plenum rating
• Wi-Fi Alliance certified 802.11a/b/g/n/ac
• Wi-Fi CERTIFIED™ 6 (802.11ax)
• Wi-Fi CERTIFIED™ ac (with Wave 2 features)
• Passpoint® (Release 2) with ArubaOS and Instant

Regulatory:

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• EN 60601-1-1, EN60601-1-2

Wi-Fi Antenna:

• Built-in omni-directional antennas: 5 GHz (4.6 dBi), 2.4 GHz (4.0 dBi).

Radio Coverage:

• Outdoor-hardened, Wi-Fi 6 dual radio, 5 GHz 4×4 MIMO and 2.4 GHz 2×2 MIMO.
• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1).
• Maximum data rates of 4.8 Gbps in the 5GHz band and 575 Mbps in the 2.4GHz band.

Product Dimensions (imperial):

• 10.6 x 9.0 x 9.4 in (H x W x D).
