HPE Access Point Aruba รุ่น R8M98A

R8M98A

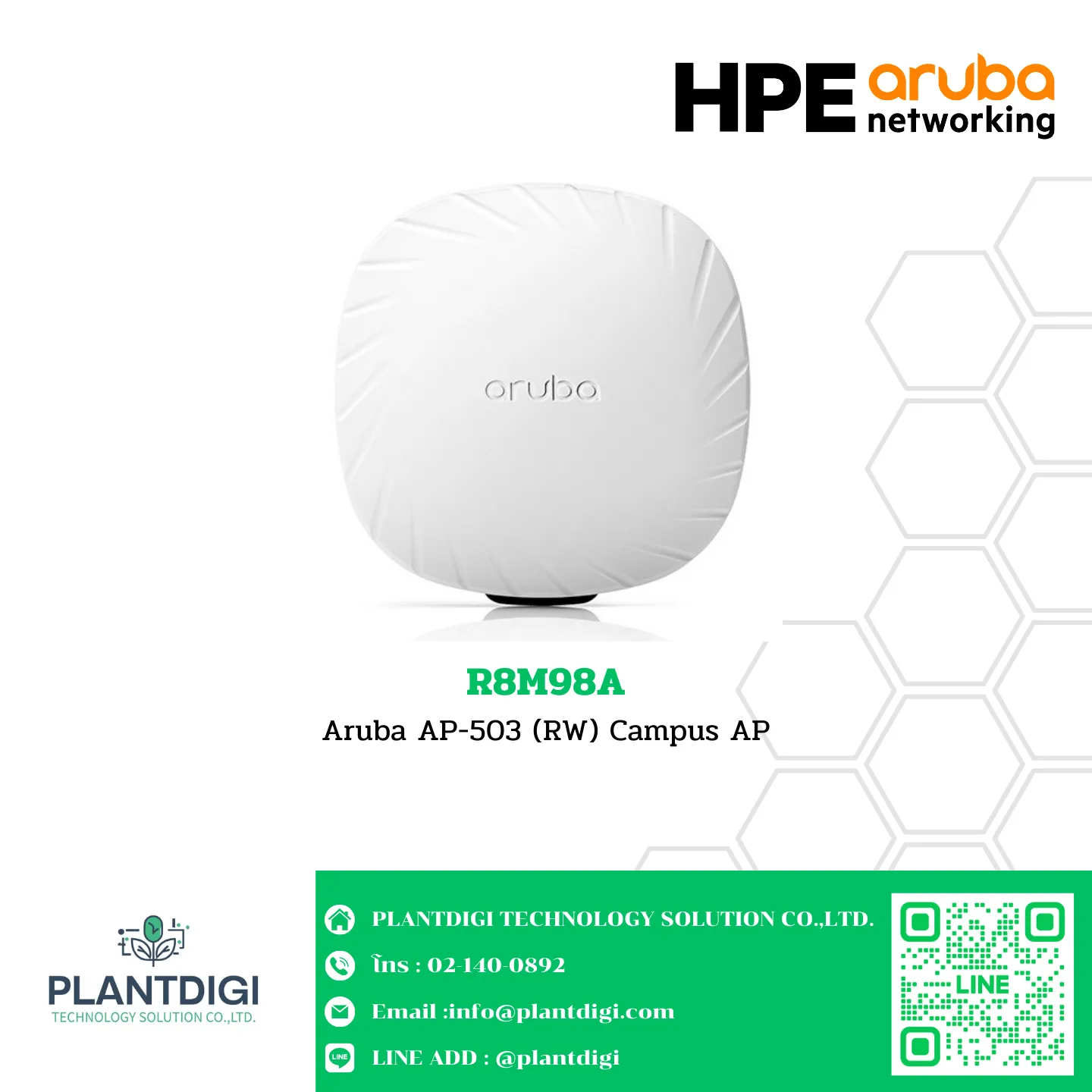

Aruba AP-503 (RW) Campus AP

Specification

Dimensions/Weight:

• Unit with Mount Bracket:
  • 145mm (W) x 145mm (D) x 51mm (H)
  • 270g
• Unit without Mount Bracket:
  • 145mm (W) x 145mm (D) x 35mm (H)
  • 255g
• Shipping:
  • 196mm (W) x 183mm (D) x 67mm (H)
  • 515g

Environmental Specifications

Operating Conditions:

• Temperature: 0°C to +40°C / +32°F to +104°F
• Relative Humidity: 5% to 95%
• ETS 300 019 class 3.2 environments
• AP is plenum rated for use in air-handling spaces

Storage Conditions:

• Temperature: -25°C to +55°C / -13°F to +131°F
• Relative Humidity: 10% to 100%
• ETS 300 019 class 1.2 environments

Transportation Conditions:

• Temperature: -40°C to +70°C / -40°F to +158°F
• Relative Humidity: Up to 95%
• ETS 300 019 class 2.3 environments

Specifications

AP Type:

• Indoor, dual-radio, 2.4GHz and 5GHz (dual concurrent) 802.11ax 2×2 MIMO

2.4GHz Radio:

• Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with 2SS HE40 802.11ax client devices (287Mbps for HE20)

5GHz Radio:

• Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices

Capacity:

• Support for up to 256 associated client devices per radio
• Up to 16 BSSIDs per radio

สอบถามค่าติดตั้ง Service Installation
