HPE Access Point Aruba รุ่น R4W43A

R4W43A

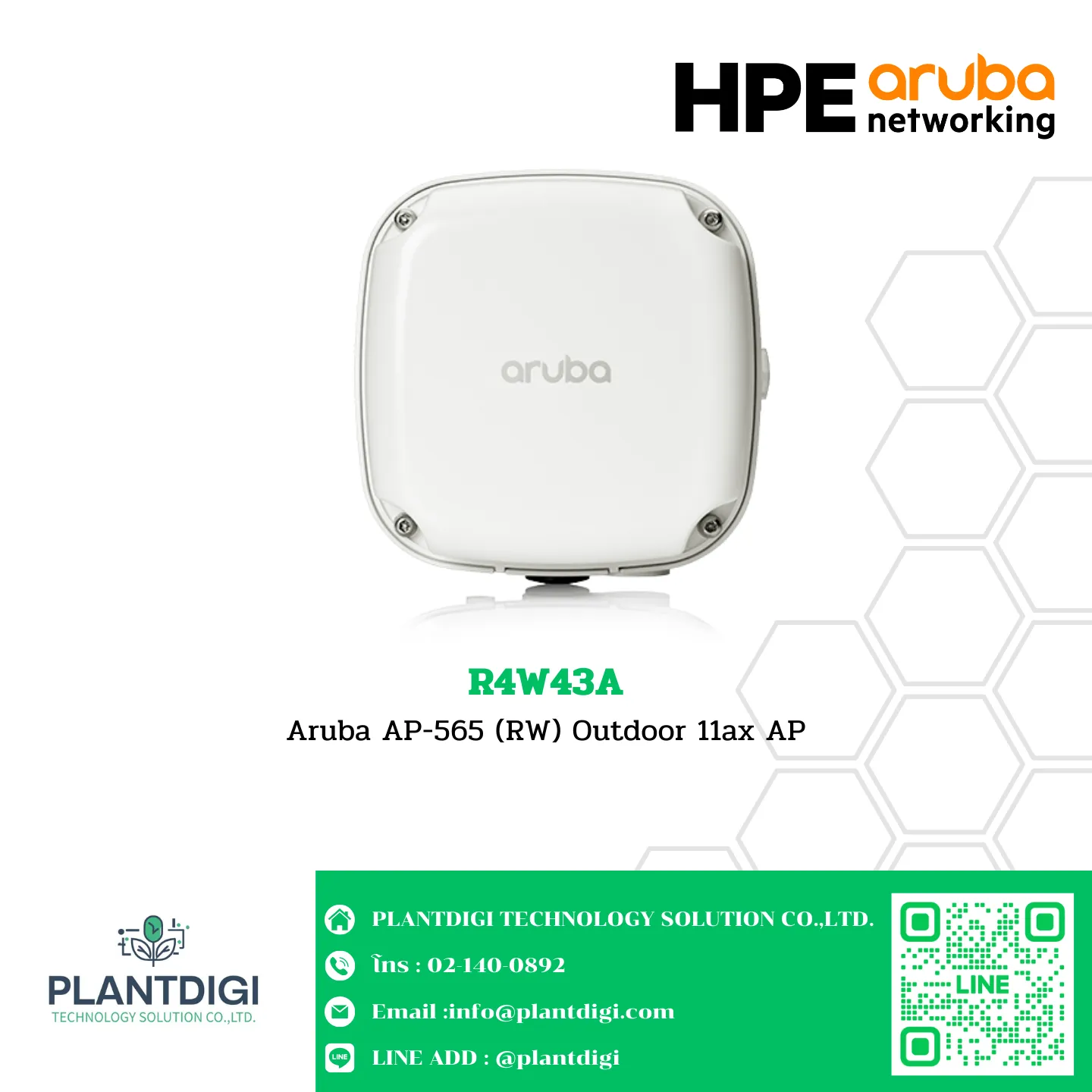

Aruba AP-565 (RW) Outdoor 11ax AP

Specification

Hardware Variants

Built-in Omni Directional Antennas:

• 5 GHz Antennas: 5.4 dBi
• 2.4 GHz Antennas: 3.2 dBi
• BLE/802.15.4 Antennas: 3.3 dBi

Wi-Fi Radio Specifications

AP Type:

• Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2×2 MIMO and 2.4 GHz 2×2 MIMO
• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)

5GHz:

• Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously.

2.4GHz:

• Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously.

Supported Radio Technologies

• 802.11b: Direct-sequence spread-spectrum (DSSS)
• 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
• 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)

Supported Modulation Types

• 802.11b: BPSK, QPSK, CCK
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

High-Throughput and High Efficiency Support

• 802.11n: HT20/40
• 802.11ac: VHT20/40/80
• 802.11ax: HE20/40/80

Transmit Power

• Configurable in increments of 0.5 dBm

Maximum (Conducted) Transmit Power (Limited by Local Regulatory Requirements):

• 2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2×2)
• 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2×2)

Maximum EIRP (Limited by Local Regulatory Requirements):

• 2.4 GHz band:
  • 565: 29.2 dBm EIRP
  • 567: 33 dBm EIRP
• 5 GHz band:
  • 565: 31.4 dBm EIRP
  • 567: 32.7 dBm EIRP

Power

Maximum (Worst-Case) Power Consumption:

• 15.6W

Maximum (Worst-Case) Power Consumption in Idle Mode:

• 4.2W

Maximum (Worst-Case) Power Consumption in Deep-Sleep Mode:

• 1.7W

Power over Ethernet (PoE+):

• 802.3at-compliant

Mechanical

Dimensions:

• 16.5 cm (W) x 16.5 cm (D) x 11 cm (H)
• 6.5” (W) x 6.5” (D) x 4.3” (H)

Environmental

Operating Temperature:

• -40°C to +55°C (-40°F to +140°F) with full solar loading

Operating Humidity:

• 5% to 95% non-condensing internal

Storage and Transportation Temperature:

• -40°C to +70°C (-40°F to +158°F)
