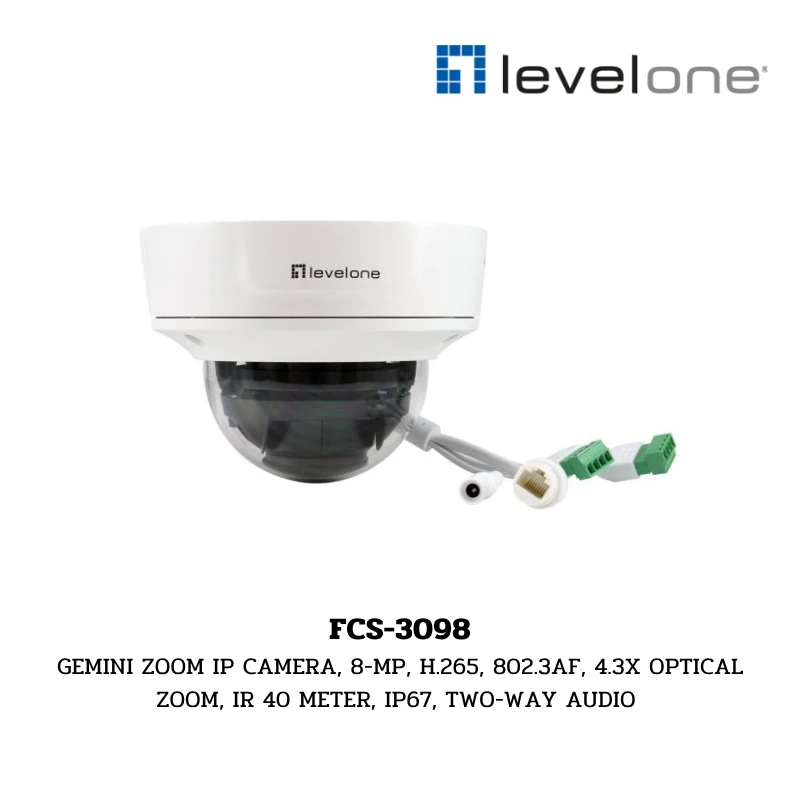

(FCS-3098) Levelone Camera GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO

รายละเอียดสินค้า

(FCS-3098) Levelone Camera GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO

8-Megapixel high-definition resolution
Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
Built-in infrared LEDs for night viewing up to 40m
Video compression: H.264, H.265, MJPEG
Dual power support: 12V DC/PoE (IEEE 802.3af)
Built-in Micro SDHC/SDXC card slot for local storage
Weatherproof IP67-rated housing
Vandal-proof IK10-rated housing

📋 ขอใบเสนอราคา สอบถามเพิ่มเติม

รหัสสินค้า: FCS-3098 หมวดหมู่: GEMINI Series ป้ายกำกับ: IP Camera, Levelone

คำอธิบาย

(FCS-3098) Levelone Camera GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO

FCS-3098 เป็นกล้องวงจรปิด IP Camera ซีรีส์ GEMINI ความละเอียดสูงระดับ 8-Megapixel มาพร้อมเลนส์ปรับระยะได้ด้วยระบบมอเตอร์ (Motorized Lens) รองรับการซูมแบบ Optical Zoom 4.3 เท่า ตัวกล้องออกแบบมาให้ทนทานต่อสภาพอากาศระดับ IP67 และทนต่อแรงกระแทกระดับ IK10 รองรับระบบเสียงสองทิศทาง (2-way audio) และมีฟีเจอร์อัจฉริยะในการแยกแยะเป้าหมายที่เป็นมนุษย์และยานพาหนะได้อย่างแม่นยำ

ข้อมูลจำเพาะ (Specification)

รายการ	รายละเอียด (Description)
Model Number	FCS-3098
Product Description	8-Megapixel high-definition resolution Video compression: H.264/H.265 Supports 4.3X optical zoom Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments Vandal-proof IK10-rated housing Weatherproof IP67-rated housing Built-in infrared LEDs for night viewing up to 40m Built-in Micro SDHC/SDXC card slot for local storage
Features	Video: Rotate, Mirror, Privacy mask, Saturation, Brightness, Contrast, Sharpness, Gain, White balance adjustable by client software or web browser Event: Supports human and vehicle targets classification. Line crossing detection, Intrusion detection. Face detection Securely: Password protection, Complicated password, Https encryption, IP address filter, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication.
2-way audio	Yes
DI/DO	Yes
IR LED for night vision	Yes
Max. Resolution	8 Megapixels
Resistance	Weatherproof, Vandalproof
IP Camera series	GEMINI
Camera Type	Dome
Zoom type	Motorization
PoE Supported	Yes
Angle of view (°)	FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
Audio format	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio system	Mono
Image sensor	1/2.8″ Progressive Scan CMOS
Indicators	Power/Link Act
IR cut filter	Yes
IR range	40 Meter
Lens	Varifocal lens, Motorized Lens, 2.8 to 12 mm
Minimum illumination (lux)	Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Mount	Ceiling mount
Port Configuration	10 /100Mbps PoE ,DI/DO(Terminal black), Audio in/Out (Terminal black), VDC connector
Power consumption	12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Power supply included	No
Protocols	Http, Https, NTP, IPv4, IPv6, TCP, UDP, RSTP, FTP, DHCP, PPPoE, TLS, SSL, SMTP, UPNP
Resolution	Main Stream: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Shutter time	1/3 s to 1/100,000 s
Standard	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Standards	IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3x Full-duplex Flow Control, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.1X authentication
Supported storage capacity	512 GB
Video format	H.265/H.264/MJPEG
Weatherproof rating	IP67
Approval and Compliance	CE/FCC/RoHs

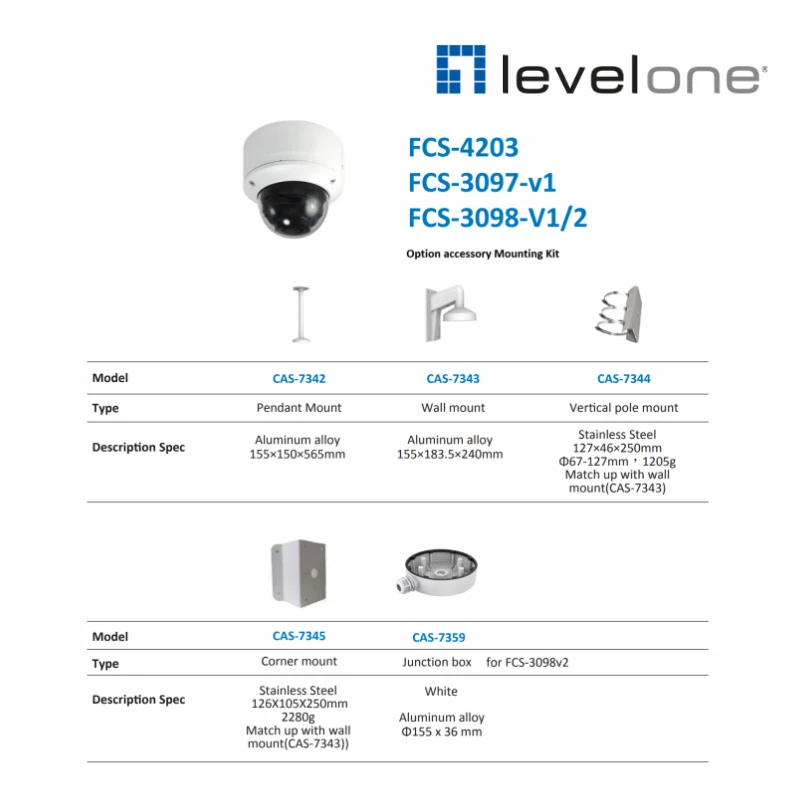

Compatibility	Ooption accessory Mounting Kit : CAS-7359 Junction Box
Operating humidity	5% RH ~ 95% RH
Operating temperature	-30°C ~ 60°C
Supported browsers	Plug-in required live view: IE 11, Edge Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Compatible operating systems	Web Client Language: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Storage humidity	5% RH ~ 95% RH
Storage temperature	-10°C ~ 70°C
Package Contents	Screw Kit QIG
Color	White
EAN	4015867228647
Dimensions (W x D x H)	Ø 153.3 mm × 111.6 mm (Ø 6.1″ × 4.4″)
Product weight (kg)	0.8
