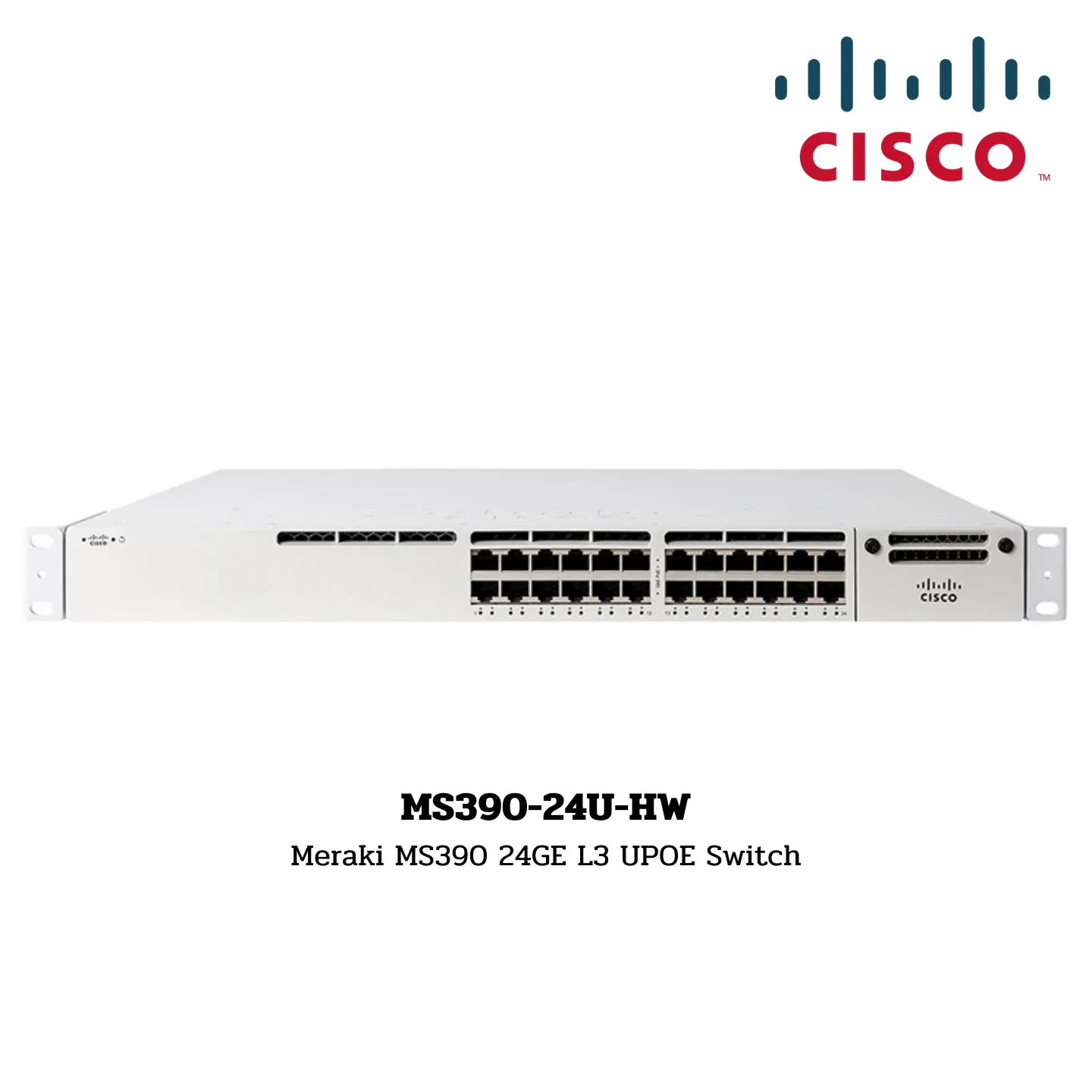

Cisco Meraki Switch Hardware รุ่น MS390-24U-HW

MS390-24U-HW
Meraki MS390 24GE L3 UPOE Switch

Specifications:

• Interfaces

  • 24 x 1GbE RJ45
  • Modular Uplink: 10/40GbE (SFP+, QSFP+)
  • 120G Hardware Stack Port: 2
  • Dedicated Management Interface: 1
  • PoE/UPoE Capabilities: UPoE/802.3bt

  Dimensions & Weight

  • Dimensions (h x w x d) with Default Power Supply: 1.73” x 17.5” x 19.2” (4.4 x 44.5 x 44.8 cm)
  • Weight: 16.63 lb (7.54 kg)
  • Mount Type: 1U Rack Mount

  Hardware Features

  • Hot Swap Fans: Yes, 3x
  • Operating Temperature: -5°C to 45°C
  • Humidity: 5% to 90%

  Performance

  • Switching Capacity: 208 Gbps
  • Stacking Bandwidth: 480 Gbps
  • Forwarding Rate: 154.76 Mpps

  Power Supply

  • Default Power Supply: MA-PWR-1100WAC
  • Hot Swap Power Supply: Yes, Dual
  • Available PoE with Primary PS: 830W
  • Max Available PoE with Secondary PS: 1440W
  • Power Load (Idle/Max): 85.4 W / 990.3 W

  Power Supply Options

  • Primary PSU: MA-PWR-1100WAC
    • PoE: 830W
    • With 350W Secondary PSU: 1180W
    • With 715W Secondary PSU: 1440W
    • With 1100W Secondary PSU: 1440W

  Package Contents

  • 1 x Power Supply (MA-PWR-1100WAC)
  • Rack mount brackets and screw kit
  • 3 x Pre-Installed Fans
  • Cable guide
