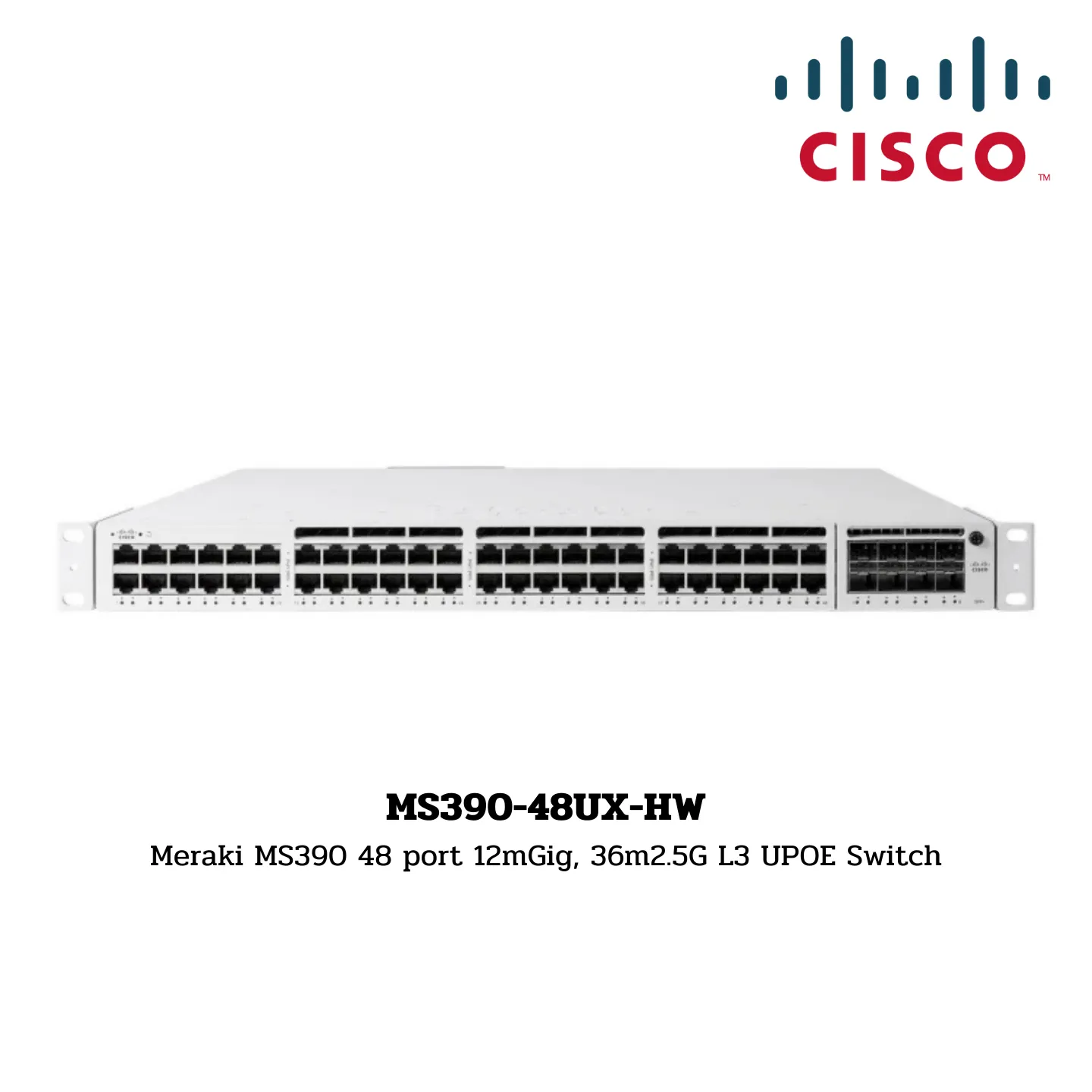

Cisco Meraki Switch Hardware รุ่น MS390-48UX-HW

MS390-48UX-HW
Meraki MS390 48 port 12mGig, 36m2.5G L3 UPOE Switch

Specifications:

• Port Configuration

  • Port Quantity: 48 × 5GbE

  Network Layer

  • OSI Layer: L3

  Deployment Pack

  • Included: No

  Hot Swappable Components

  • Power Supply: Yes
  • Fans: 3 Total, Redundant

  Power over Ethernet (PoE)

  • PoE Budget: 490W
  • Available PoE Power: 490W

  Operating Conditions

  • Minimum Operating Temperature: 23°F (-5°C)
  • Operating Temperature Range: 23°F to 113°F (-5°C to 45°C)
  • Operating Humidity: 5% to 90% (non-condensing)

  Performance

  • Switching Bandwidth: 640 Gbps
  • Forwarding Rate: 476.19 Mpps (based on 64-byte packets)
  • MAC Addresses: 32K

  Power Specifications

  • Input Voltage: 120-230VAC, 50-60Hz

  Uplink Interfaces

  • Modular Uplinks: Yes

  Brand

  • Meraki

  Rack Units Consumed

  • 1RU

  Additional Physical Specifications

  • MTBF (at 25°C): 227,410 hours
  • Dimensions (H × W × D): 1.73” × 17.5” × 19.2” (4.4 × 44.5 × 48.8 cm)
  • Weight: 17.03 lb (7.72 kg)

  Series

  • MS390

  Stacking

  • Virtual & Physical Stacking
  • Stacking Bandwidth: 480 Gbps

  PoE Compatibility

  • UPoE

  Port Configuration (Continued)

  • Ports: 48 × 5GbE UPoE

  Performance (Continued)

  • Jumbo Frame Support: 9,578 bytes
  • VLAN IDs: 4094
  • AC Input Voltage: 120-230 VAC
  • Max Active VLANs: 1000
  • Switching Capacity: 580 Gbps
