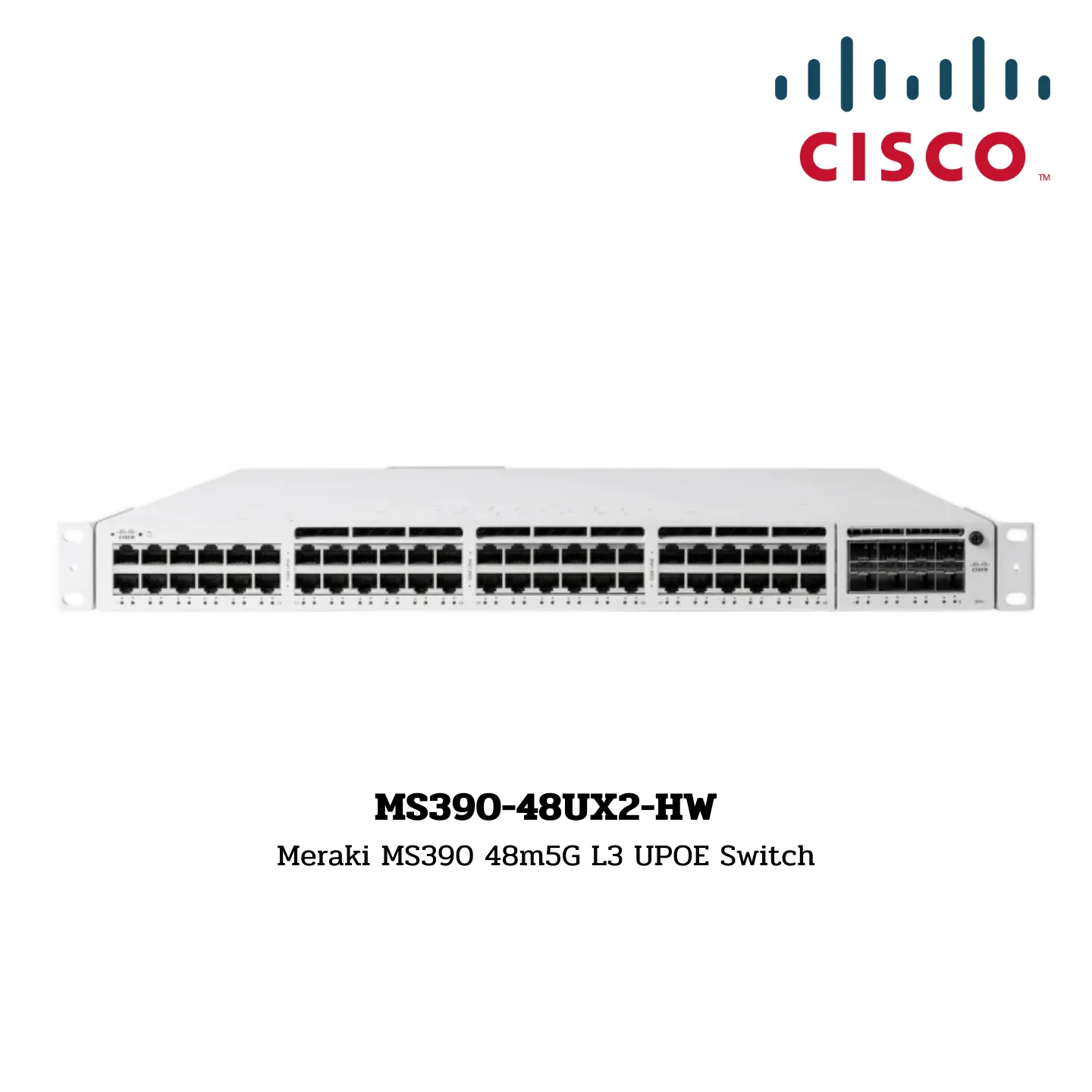

MS390-48UX2-HW
Meraki MS390 48m5G L3 UPOE Switch
Specifications:
-
Port Quantity
- 48 Ports
OSI Layer
- Layer 3 (L3)
Deployment Pack
- No
Hot Swappable Components
- Power Supply: Yes
- Fans: Yes, 3 total (redundant)
Port Speed
- 5GbE
PoE Budget
- 490W
Environmental Specifications
- Minimum Operating Temperature: 23°F (-5°C)
- Maximum Operating Temperature: 113°F (45°C)
- Operating Humidity: 5% to 90% (non-condensing)
Performance
- Switching Bandwidth: 640 Gbps
- Forwarding Rate: 476.19 Mpps (based on 64-byte packets)
- MAC Addresses: 32K
Uplink Interfaces
- Modular Uplinks (10GbE SFP+, 40GbE QSFP+)
Power Specifications
- Power: 120-230VAC, 50-60Hz
- Available PoE Power: 490W
Physical Specifications
- MTBF (at 25°C): 227,410 hours
- Dimensions (H × W × D): 1.73” × 17.5” × 19.2” (4.4 × 44.5 × 48.8 cm)
- Weight: 17.03 lb (7.72 kg)
- Rack Units Consumed: 1RU
Stacking
- Virtual & Physical Stacking
- Stacking Bandwidth: 480 Gbps
Additional Features
- PoE Compatibility: UPoE
- Jumbo Frame Support: 9,578 bytes
- VLAN IDs: 4094
- Max Active VLANs: 1000
