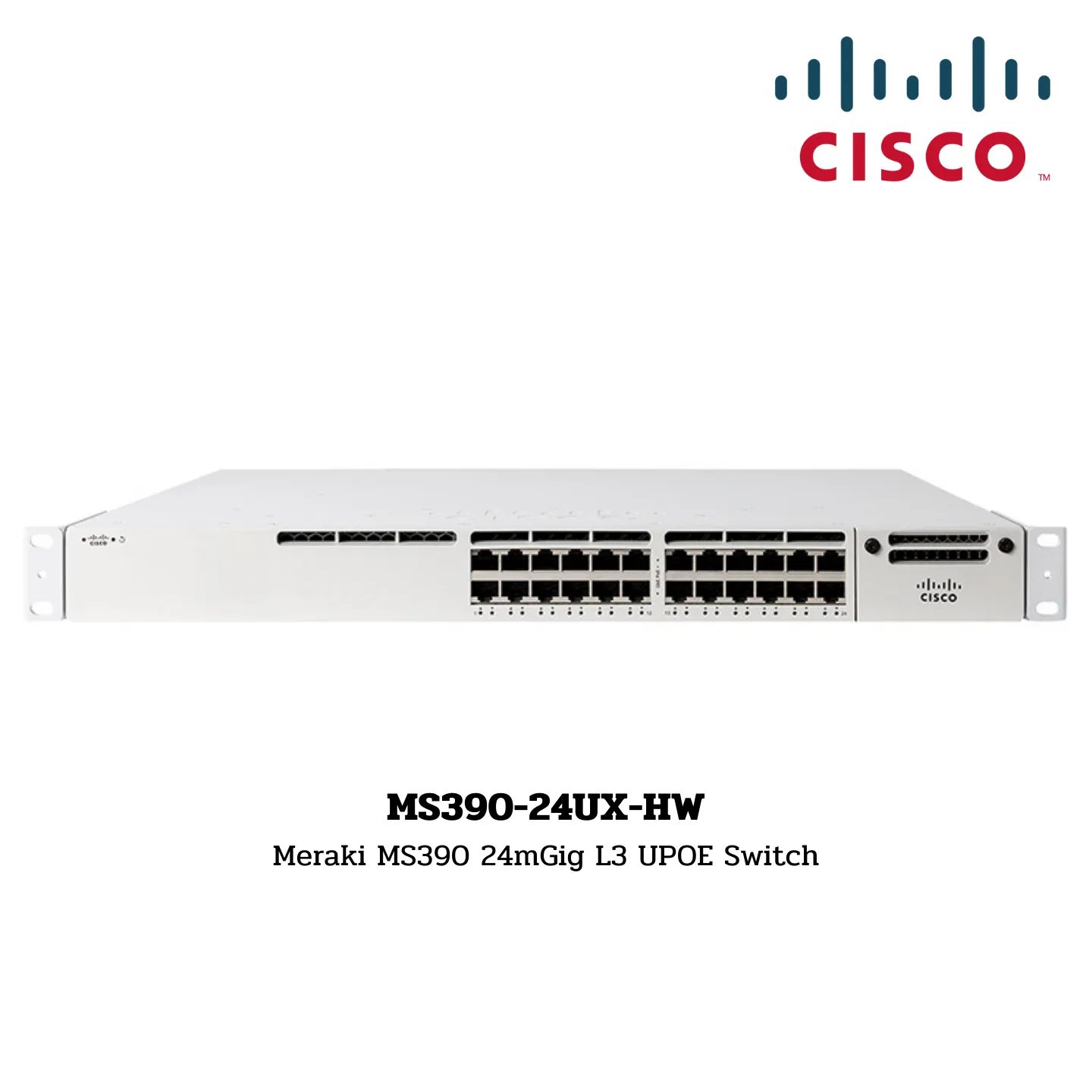

MS390-24UX-HW
Meraki MS390 24mGig L3 UPOE Switch
Specifications:
-
Interfaces
- 1GbE RJ45: –
- mGbE RJ45: 24
- 10GbE SFP+: Modular
- 40GbE QSFP+: Modular
- Hardware Stack Port: 2x 120G
- Management Interface: 1
Hardware Features
- Hot Swap Power Supply: Yes, Dual
- Hot Swap Fans: Yes, 3x
- Layer 3 Routing: Yes
- UPoE/802.3bt Capable: Yes, 560W
- Max Switching Capacity: 640 Gbps
- Max Stacking Bandwidth: 480 Gbps
Physical Specifications
- Dimensions (h x w x d) with Default Power Supply: 1.73” x 17.5” x 20.2” (4.4 x 44.5 x 51.3 cm)
- Weight: 18.18 lb (8.25 kg)
- Mount Type: 1U Rack Mount
- Operating Temperature: -5°C to 45°C
- Humidity: 5% to 90%
Performance
- Switching Capacity: 640 Gbps
- Stacking Bandwidth: 480 Gbps
- Forwarding Rate: 476.19 Mpps
Power Supply
- Default Power Supply: MA-PWR-1100WAC
- Hot Swap Power Supply: Yes, Dual
- Available PoE with Primary PS: 560W
- Max Available PoE with Secondary PS: 1440W
- Power Load (Idle/Max): 162.7 W / 809.9 W
Power Supply Options
- Primary PSU: MA-PWR-1100WAC
- PoE: 560W
- With 350W Secondary PSU: 910W
- With 715W Secondary PSU: 1275W
- With 1100W Secondary PSU: 1440W
Package Contents
- 1 x Power Supply (MA-PWR-1100WAC)
- Rack mount brackets and screw kit
- 3 x Pre-Installed Fans
- Cable guide
