Switch Aruba OS-CX HPE รุ่น JL675A

JL675A

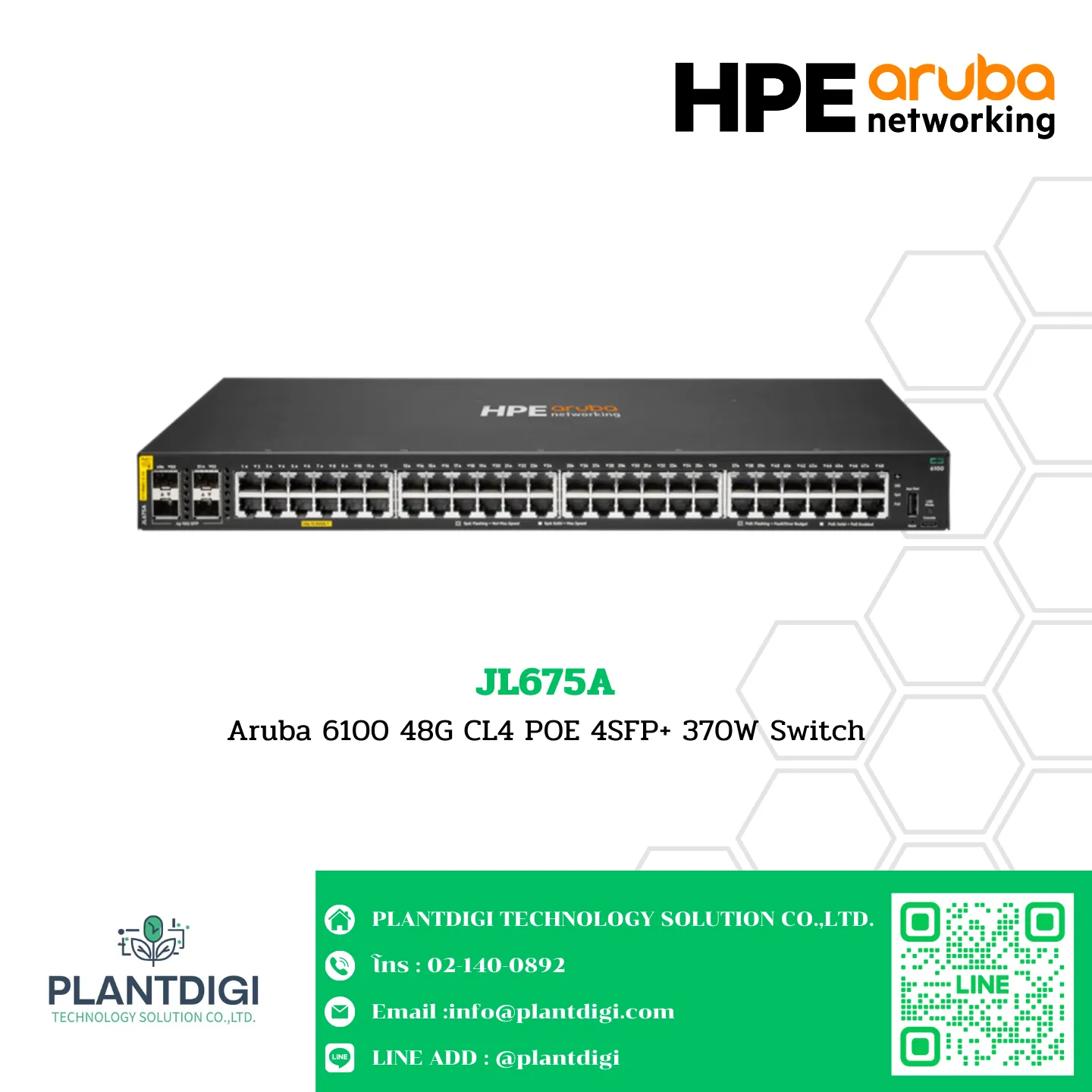

Aruba 6100 48G CL4 POE 4SFP+ 370W Switch

Differentiator:

• The Aruba CX 6100 Switch Series delivers entry-level, reliable, and convenient Layer 2 wired access connectivity, ideal for branch offices, mid-market enterprises, and SMBs. This model has 48 × 10/100/1000BASE-T ports and 4 × 1G/10G SFP ports, with 370W Class 4 PoE/PoE+ power.

Hardware Specifications

Power Consumption:

• Max Power (without PoE): 45W
• Max Power (with PoE): 480W

Input Voltage:

• 100-127 VAC / 200-240 VAC

Ports:

• (48) 10/100/1000BASE-T ports
• (4) 1G/10G SFP ports

Latency:

• 1 Gbps: 1.9 μs
• 10 Gbps: 1.8 μs

Switching Capacity:

• 176 Gbps

Throughput:

• 98.6 Mpps

Memory and Processor:

• Dual Core ARM Cortex A9 @ 1016 MHz
• 4 GB DDR3 (maximum, depending on model)
• 16 GB eMMC

PoE Capability:

• 370W Class 4 PoE/PoE+

Weight:

• 5.0 kg (11.07 lbs)

Dimensions:

• 4.4 × 44.2 × 30.5 cm (1.73 × 17.4 × 12.0 in)
