Switch Aruba OS-CX HPE รุ่น JL679A

JL679A

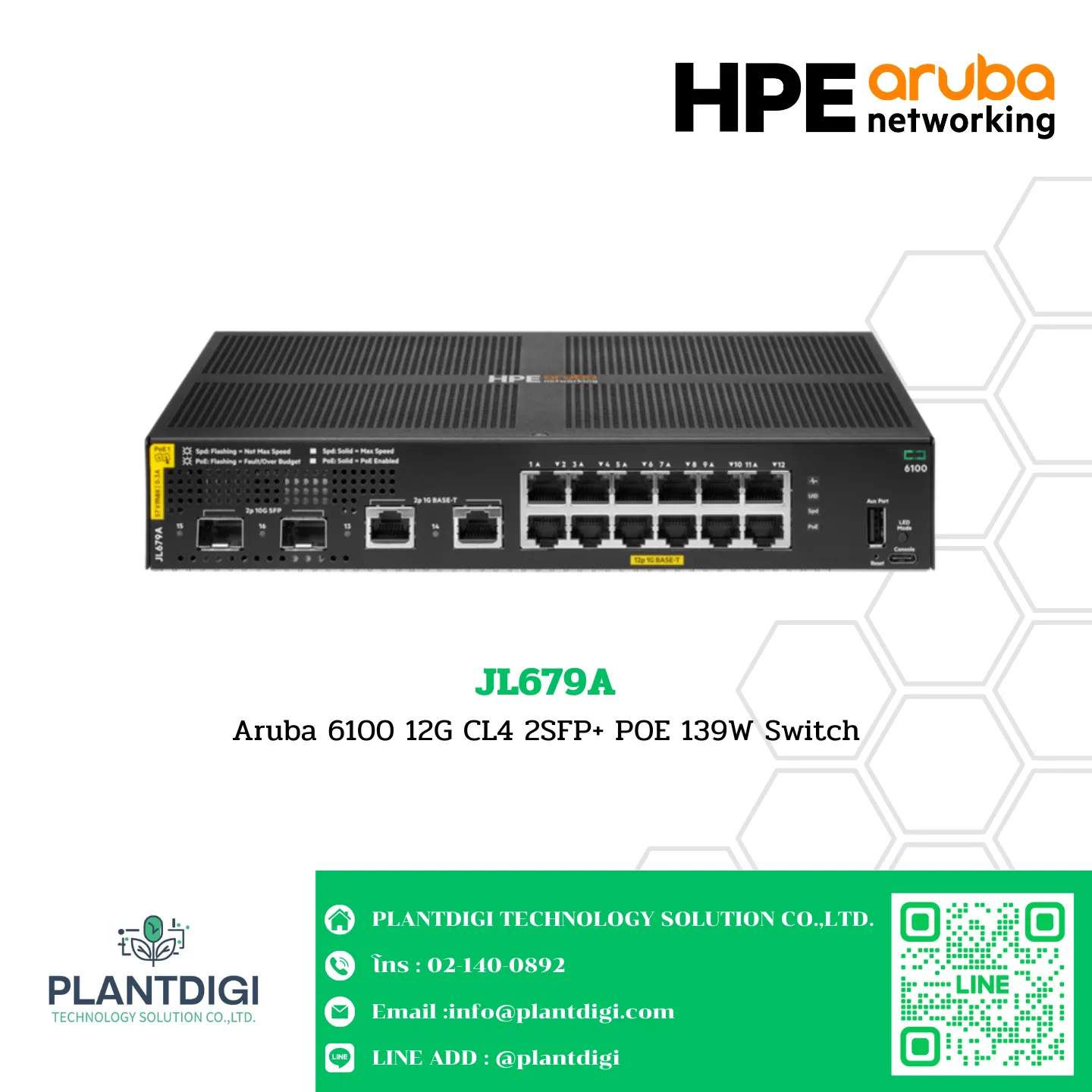

Aruba 6100 12G CL4 2SFP+ POE 139W Switch

Differentiator:

• The Aruba CX 6100 Switch Series delivers entry-level, reliable, and convenient Layer 2 wired access connectivity, ideal for branch offices, mid-market enterprises, and SMBs. This model has 12 × 10/100/1000BASE-T ports, 2 × 1G/10G SFP ports, and 2 × 1GbE ports, with 139W Class 4 PoE/PoE+ power.

Hardware Specifications

Power Consumption:

• Max Power (without PoE): 21.9W
• Max Power (with PoE): 170W

Input Voltage:

• 100-127 VAC / 200-240 VAC

Ports:

• (12) 10/100/1000BASE-T ports
• (2) 1G/10G SFP ports
• (2) 1GbE ports

Latency:

• 1 Gbps: 2.3 μs
• 10 Gbps: 2.6 μs

Switching Capacity:

• 68 Gbps

Throughput:

• 45.1 Mpps

Memory and Processor:

• Dual Core ARM Cortex A9 @ 1016 MHz
• 4 GB DDR3 (maximum, depending on model)
• 16 GB eMMC

PoE Capability:

• 139W Class 4 PoE/PoE+

Weight:

• 2.8 kg (6.13 lbs)

Dimensions:

• 4.4 × 25.4 × 25.5 cm (1.73 × 10.0 × 10.4 in)
