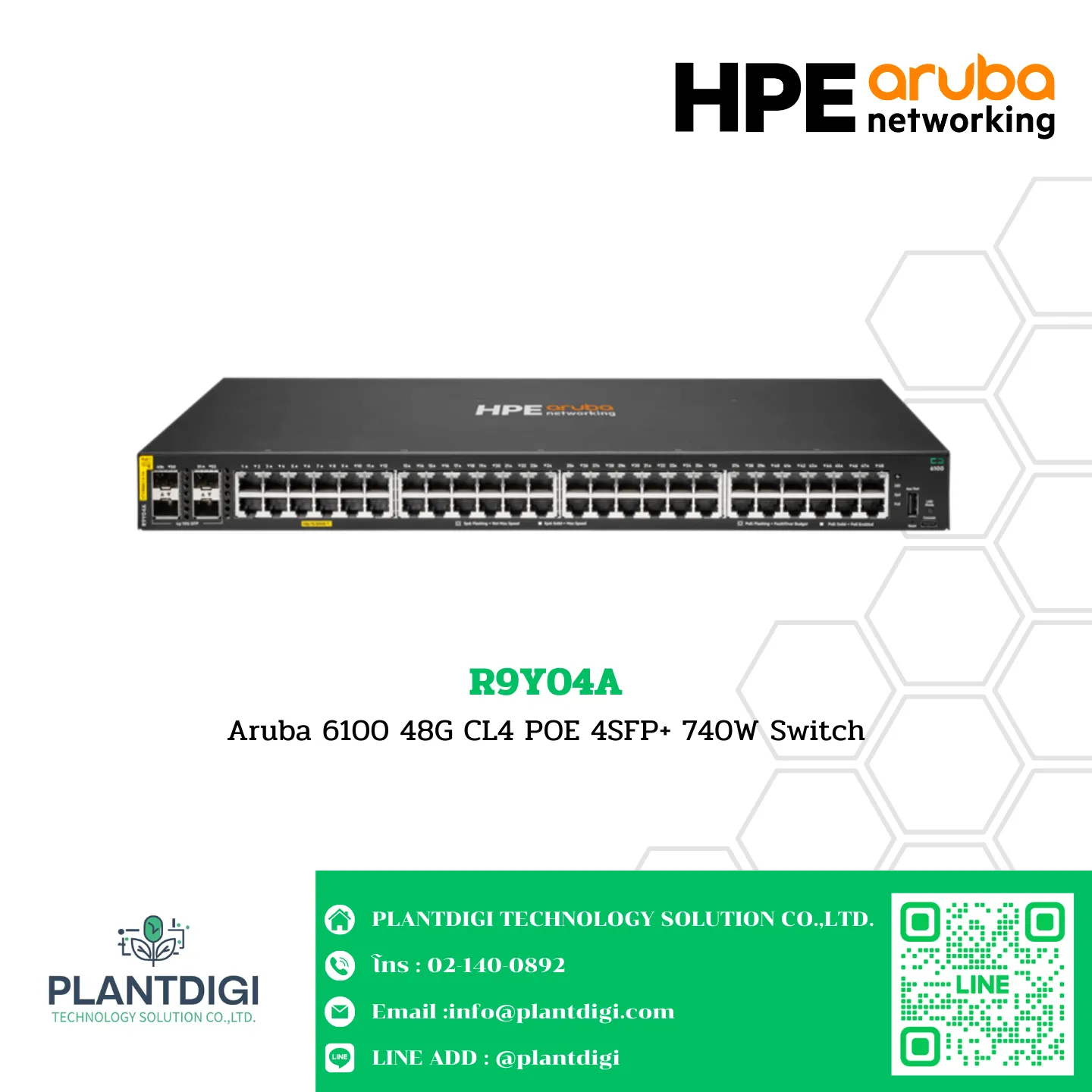

Switch Aruba OS-CX HPE รุ่น R9Y04A

R9Y04A
Aruba 6100 48G CL4 POE 4SFP+ 740W Switch

Differentiator:

• The Aruba CX 6100 Switch Series delivers entry-level, reliable, and convenient Layer 2 wired access connectivity, ideal for branch offices, mid-market enterprises, and SMBs. This model has 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.

Hardware Specifications

Power Consumption:

• Max Power (without PoE): 49.7W
• Max Power (with PoE): 890W

Input Voltage:

• 100-127 VAC / 200-240 VAC

Ports:

• 48 × 10/100/1000BASE-T Class 4 PoE ports
• Supports PoE Standards IEEE 802.3af, 802.3at

Latency:

• 1 Gbps: 1.9 μs
• 10 Gbps: 1.8 μs

Switching Capacity:

• 176 Gbps

Throughput:

• 98.6 Mpps

Memory and Processor:

• Dual Core ARM Cortex A9 @ 1016 MHz
• 4 GB DDR3 (maximum, depending on model)
• 16 GB eMMC

PoE Capability:

• 740W of Class 4 PoE
