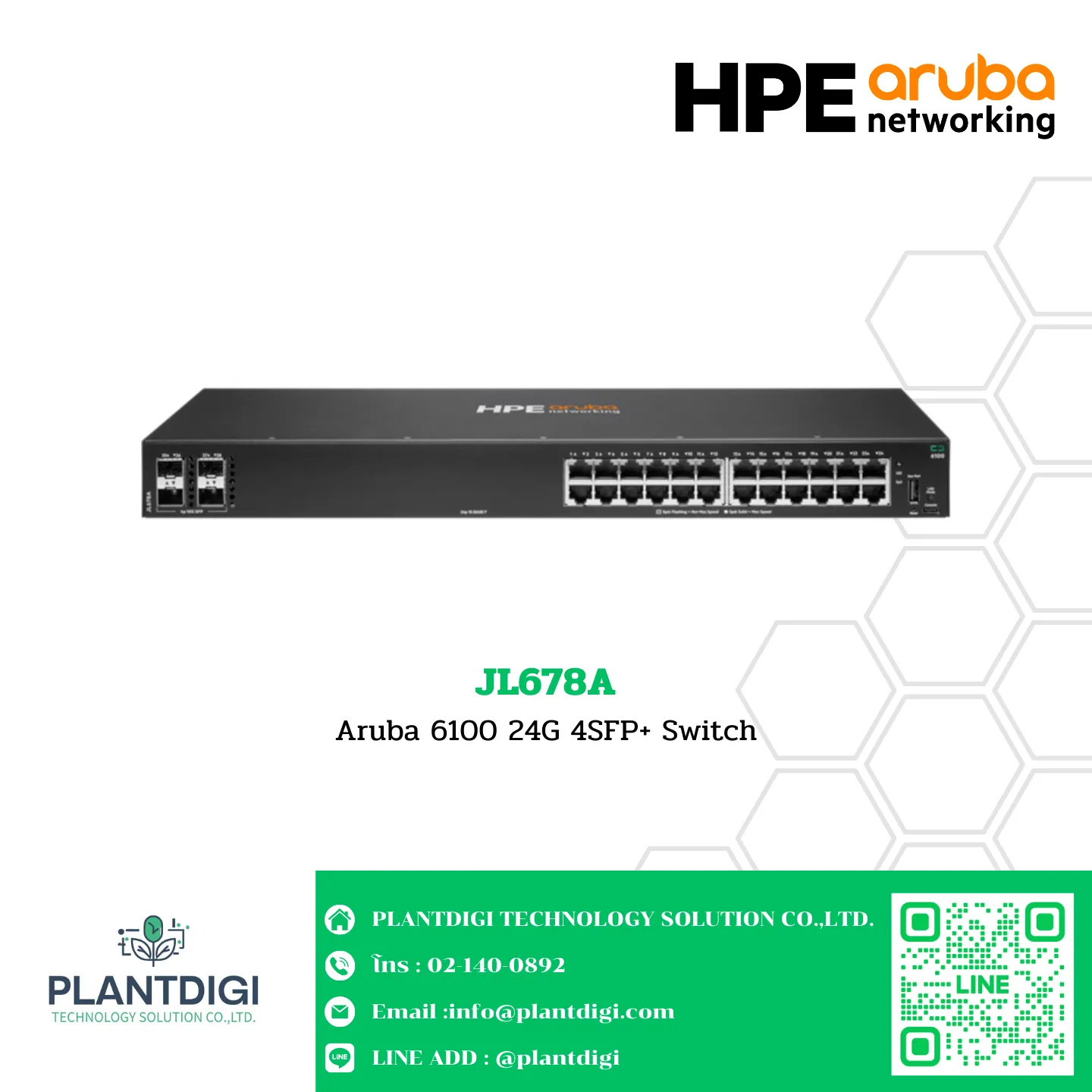

Switch Aruba OS-CX HPE รุ่น JL678A

JL678A
Aruba 6100 24G 4SFP+ Switch

Differentiator:

• The Aruba CX 6100 Switch Series delivers entry-level, reliable, and convenient Layer 2 wired access connectivity, ideal for branch offices, mid-market enterprises, and SMBs. This model has 24 × 10/100/1000BASE-T ports and 4 × 1G/10G SFP ports.

Hardware Specifications

Power Consumption:

• Max Power (without PoE): 33W

Input Voltage:

• 100-127 VAC / 200-240 VAC

Ports:

• (24) 10/100/1000BASE-T ports
• (4) 1G/10G SFP ports

Latency:

• 1 Gbps: 1.5 μs
• 10 Gbps: 1.8 μs

Switching Capacity:

• 128 Gbps

Throughput:

• 95.2 Mpps

Memory and Processor:

• Dual Core ARM Cortex A9 @ 1016 MHz
• 4 GB DDR3 (maximum, depending on model)
• 16 GB eMMC

PoE Capability:

• 370W, maximum, depending on model

Weight:

• 2.6 kg (5.78 lbs)

Dimensions:

• 4.4 × 44.2 × 20.1 cm (1.73 × 17.4 × 7.92 in)

สอบถามค่าติดตั้ง Service Installation
