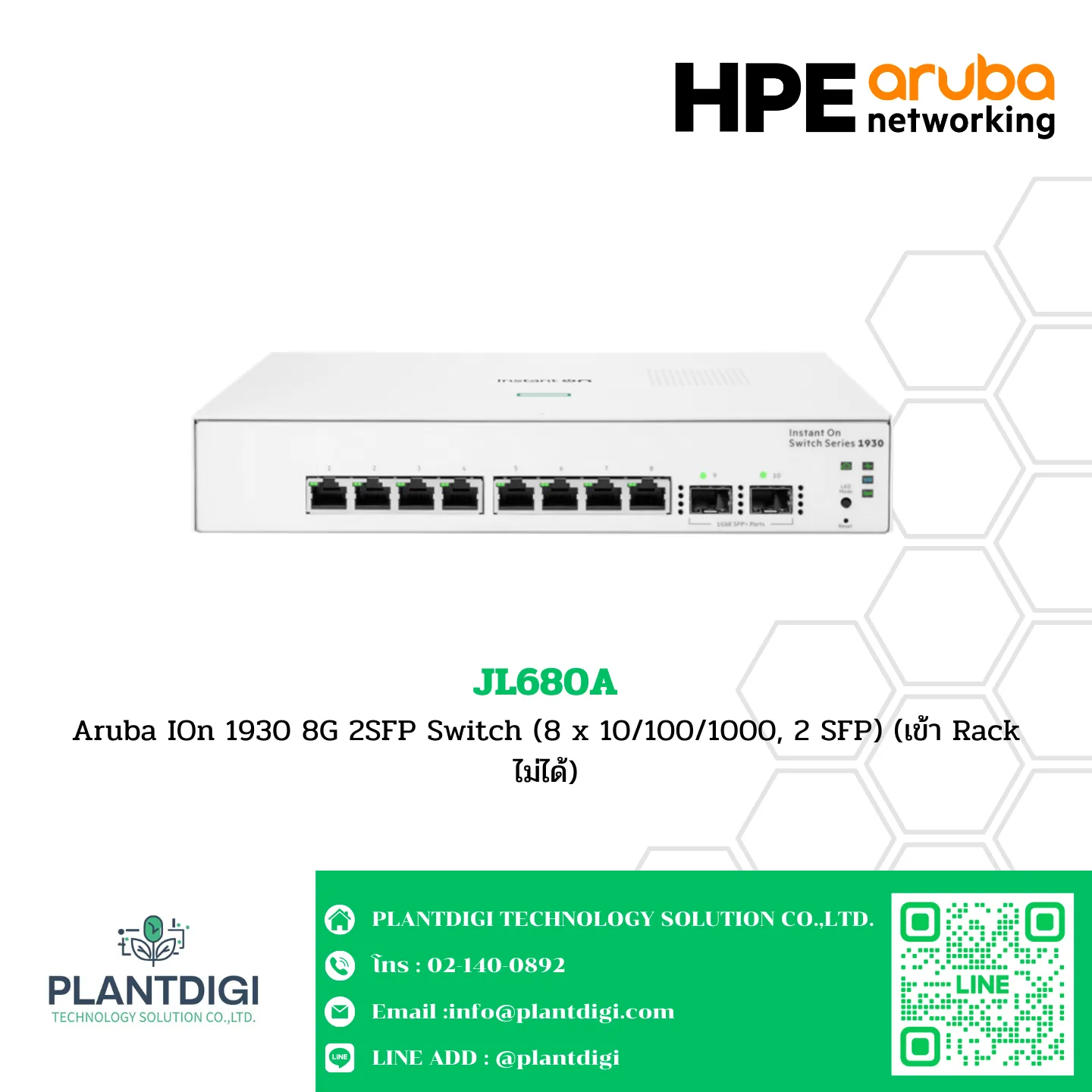

Aruba Instant On 1930 Switch HPE รุ่น JL680A

JL680A
Aruba IOn 1930 8G 2SFP Switch (8 x 10/100/1000, 2 SFP) (เข้า Rack ไม่ได้)

Overview

The HPE Networking Instant On Switch 8p Gigabit 2p SFP 1930 is an advanced, smart-managed, fixed-configuration Gigabit switch designed for small businesses. It is easy to deploy, secure, and affordable, offering “anywhere, anytime” configuration and management through the Instant On mobile app or cloud-based web portal. The device can also be managed locally through the web GUI.

Specifications

Model:

• JL680A

Ports:

• 8 RJ-45 10/100/1000 ports
• 2 SFP 1GbE ports

Switching Capacity:

• 20 Gbps

Throughput:

• 14.88 Mpps (maximum)

Memory and Processor:

• ARM Cortex-A9 @ 800 MHz
• 512 MB SDRAM, 256 MB flash
• 1.5 MB packet buffer

Power Consumption:

• Maximum: 11.0 W
• Idle: 6.2 W

Input Voltage:

• 100 – 240 VAC

Management Features:

• Aruba Instant On Portal
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration

Weight:

• 0.82 kg (2.55 lb)

Dimensions:

• 4.39 x 25.4 x 15.95 cm (1.73 x 10 x 6.28 in)

Key Features

• Advanced and Smart-Managed: Designed for small businesses with evolving networking demands.
• Easy Deployment: Secure and affordable, with simple setup using the Instant On mobile app or cloud-based web portal.
• Flexible Management: Manage the device through the Instant On Portal, web browser, or SNMP Manager.
• Energy Efficient: Low power consumption with a maximum of 11.0 W and idle at 6.2 W.
• Robust Performance: Provides high switching capacity and throughput for reliable network performance.
