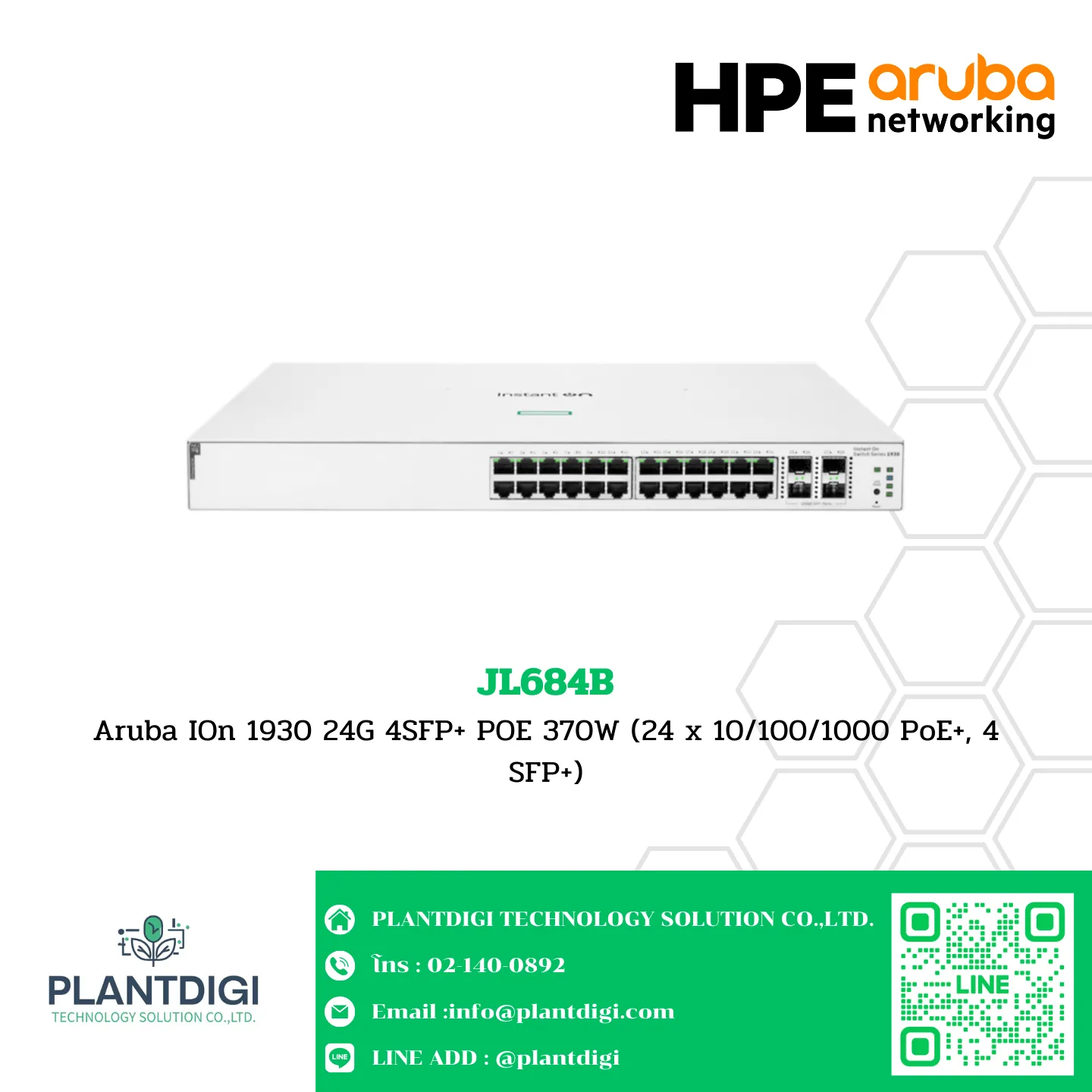

Aruba Instant On 1930 Switch HPE รุ่น JL684B

JL684B
Aruba IOn 1930 24G 4SFP+ POE 370W (24 x 10/100/1000 PoE+, 4 SFP+)

Overview

The HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930 is an advanced, smart-managed, fixed-configuration Gigabit switch designed for small businesses. It is easy to deploy, secure, and affordable. The Instant On “anywhere, anytime” configuration and management allows quick setup, monitoring, and management of the 1930 switch using the Instant On mobile app or cloud-based web portal. You can also manage the device through the local web GUI.

Specifications

Model:

• JL684B

Ports:

• 24 RJ-45 10/100/1000 ports
• 4 SFP 1/10GbE ports

Switching Capacity:

• 128 Gbps

Throughput:

• 95.23 Mpps (maximum)

Memory and Processor:

• ARM Cortex-A9 @ 800 MHz
• 512 MB SDRAM, 256 MB flash
• 1.5 MB packet buffer

Power Consumption:

• Maximum: 490.0 W
• Idle: 30.0 W

Input Voltage:

• 100 – 127 / 200 – 240 VAC

PoE Capability:

• 370 W Class 4

Management Features:

• Aruba Instant On Portal
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration

Weight:

• 3.73 kg (8.23 lb)

Dimensions:

• 4.39 x 44.25 x 26.47 cm (1.73 x 17.42 x 10.42 in)

Key Features

• Advanced and Smart-Managed: Designed for small businesses with evolving networking demands.
• Easy Deployment: Secure and affordable, with simple setup using the Instant On mobile app or cloud-based web portal.
• Flexible Management: Manage the device through the Instant On Portal, web browser, or SNMP Manager.
• Energy Efficient: Low power consumption with a maximum of 490.0 W and idle at 30.0 W.
• PoE Capability: Offers 370 W Class 4 PoE power to support connected devices.
• Robust Performance: Provides high switching capacity and throughput for reliable network performance.
• Enhanced Connectivity: Includes 24 RJ-45 10/100/1000 ports and 4 SFP 1/10GbE ports for versatile connectivity options.
