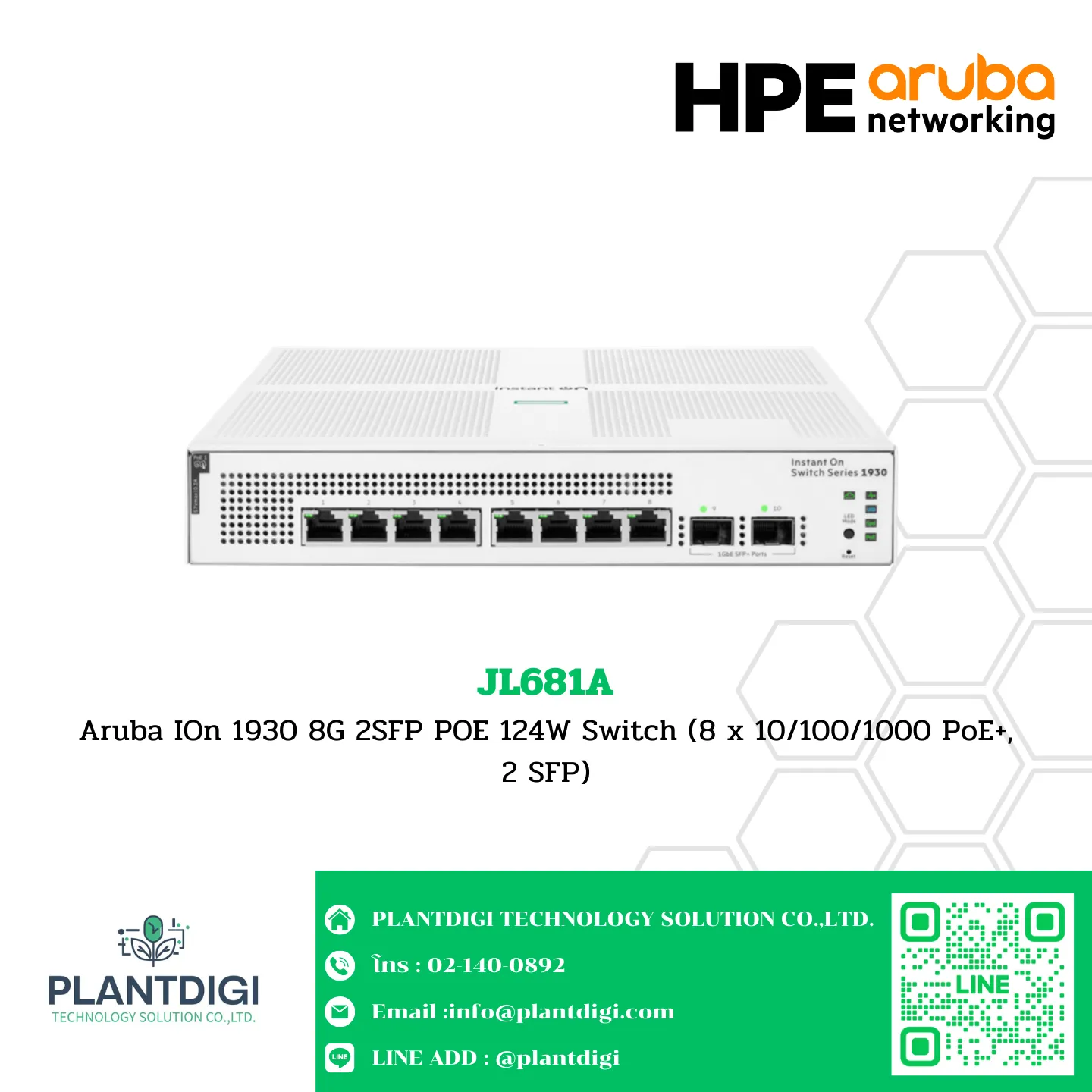

Aruba Instant On 1930 Switch HPE รุ่น JL681A

JL681A
Aruba IOn 1930 8G 2SFP POE 124W Switch (8 x 10/100/1000 PoE+, 2 SFP)

Overview

The HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p SFP 124W 1930 is an advanced, smart-managed, fixed-configuration Gigabit switch designed for small businesses. It is easy to deploy, secure, and affordable. The Instant On “anywhere, anytime” configuration and management allows quick setup, monitoring, and management of the 1930 switch using the Instant On mobile app or cloud-based web portal. You can also manage the device through the local web GUI.

Specifications

Model:

• JL681A

Ports:

• 8 RJ-45 10/100/1000 ports
• 2 SFP 1GbE ports

Switching Capacity:

• 20 Gbps

Throughput:

• 14.88 Mpps (maximum)

Memory and Processor:

• ARM Cortex-A9 @ 800 MHz
• 512 MB SDRAM, 256 MB flash
• 1.5 MB packet buffer

Power Consumption:

• Maximum: 150.2 W
• Idle: 11.7 W

Input Voltage:

• 100 – 127 / 200 – 240 VAC

PoE Capability:

• 124 W Class 4

Management Features:

• Aruba Instant On Portal
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration

Weight:

• 1.16 kg (2.55 lb)

Dimensions:

• 4.39 x 25.4 x 25.4 cm (1.73 x 10 x 10 in)

Key Features

• Advanced and Smart-Managed: Designed for small businesses with evolving networking demands.
• Easy Deployment: Secure and affordable, with simple setup using the Instant On mobile app or cloud-based web portal.
• Flexible Management: Manage the device through the Instant On Portal, web browser, or SNMP Manager.
• Energy Efficient: Low power consumption with a maximum of 150.2 W and idle at 11.7 W.
• PoE Capability: Offers 124 W Class 4 PoE power to support connected devices.
• Robust Performance: Provides high switching capacity and throughput for reliable network performance.

สอบถามค่าติดตั้ง Service Installation
