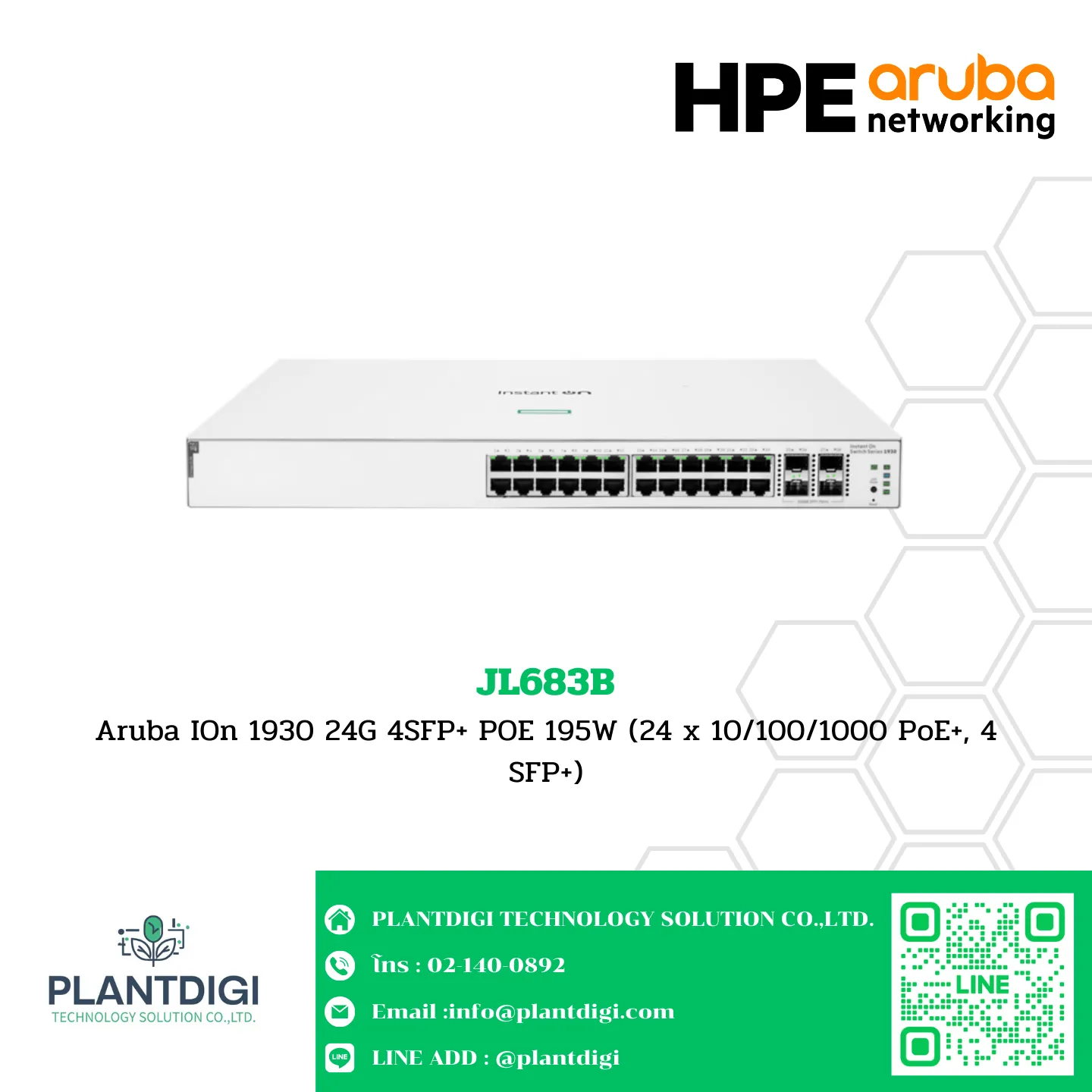

Aruba Instant On 1930 Switch HPE รุ่น JL683B

JL683B
Aruba IOn 1930 24G 4SFP+ POE 195W (24 x 10/100/1000 PoE+, 4 SFP+)

Overview

The HPE Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930 is an advanced, smart-managed, fixed-configuration Gigabit switch designed for small businesses. It is easy to deploy, secure, and affordable, offering “anywhere, anytime” configuration and management through the Instant On mobile app or cloud-based web portal. You can also manage the device locally through the web GUI.

Specifications

Model:

• JL683B

Ports:

• 24 RJ-45 10/100/1000 ports
• 4 SFP 1/10GbE ports

Switching Capacity:

• 128 Gbps

Throughput:

• 95.23 Mpps (maximum)

Memory and Processor:

• ARM Cortex-A9 @ 800 MHz
• 512 MB SDRAM, 256 MB flash
• 1.5 MB packet buffer

Power Consumption:

• Maximum: 280.0 W
• Idle: 30.0 W

Input Voltage:

• 100 – 127 / 200 – 240 VAC

PoE Capability:

• 195 W Class 4

Management Features:

• Aruba Instant On Portal
• Web browser
• SNMP Manager

Warranty:

• Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration

Weight:

• 3.49 kg (7.69 lb)

Dimensions:

• 4.39 x 44.25 x 26.47 cm (1.73 x 17.42 x 10.42 in)

Key Features

• Advanced and Smart-Managed: Designed for small businesses with evolving networking demands.
• Easy Deployment: Secure and affordable, with simple setup using the Instant On mobile app or cloud-based web portal.
• Flexible Management: Manage the device through the Instant On Portal, web browser, or SNMP Manager.
• Energy Efficient: Low power consumption with a maximum of 280.0 W and idle at 30.0 W.
• PoE Capability: Offers 195 W Class 4 PoE power to support connected devices.
• Robust Performance: Provides high switching capacity and throughput for reliable network performance.
• Enhanced Connectivity: Includes 24 RJ-45 10/100/1000 ports and 4 SFP 1/10GbE ports for versatile connectivity options.
