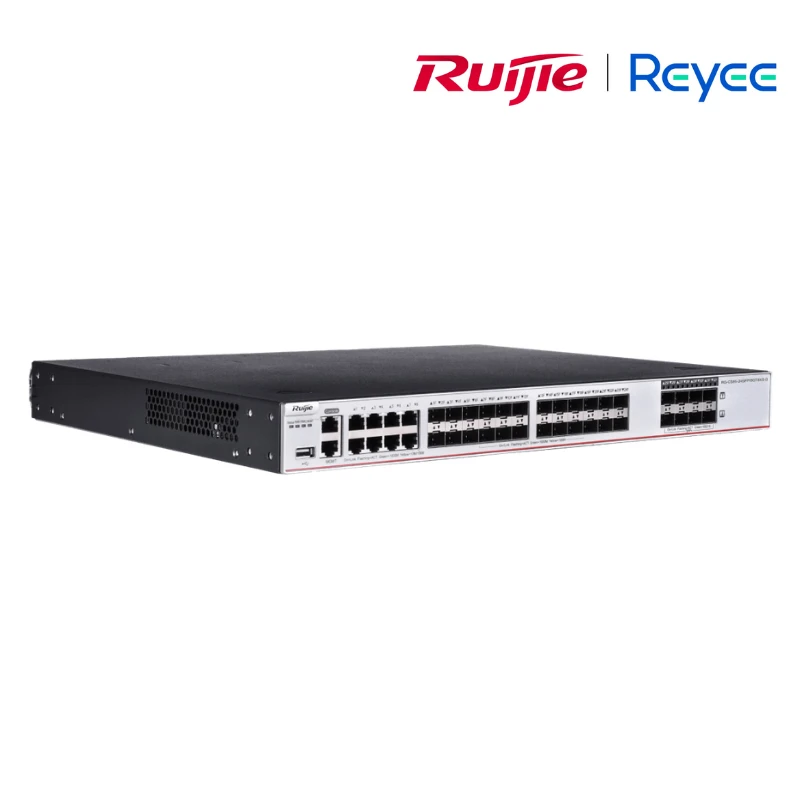

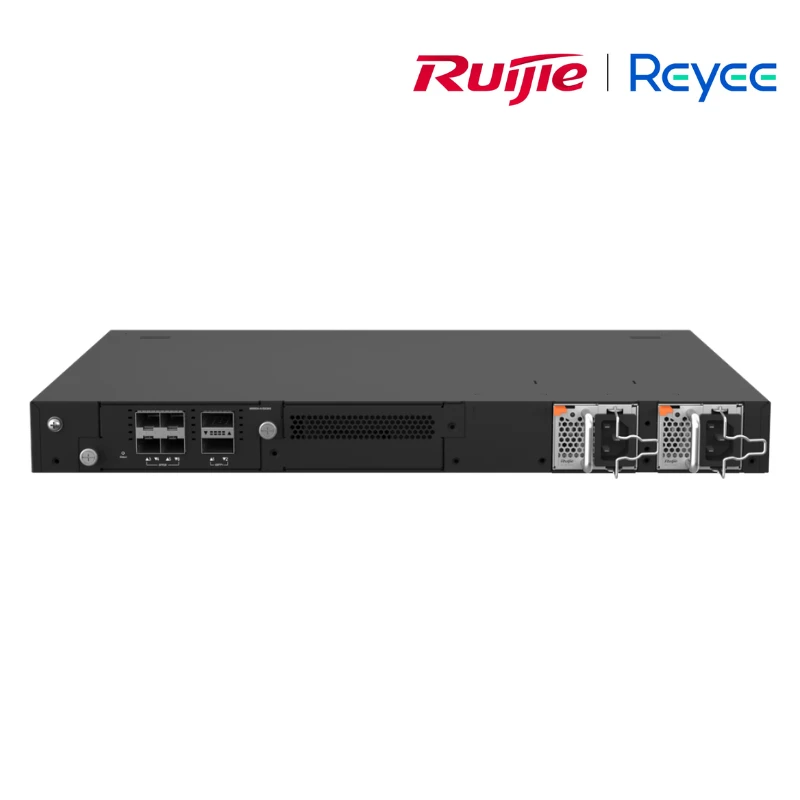

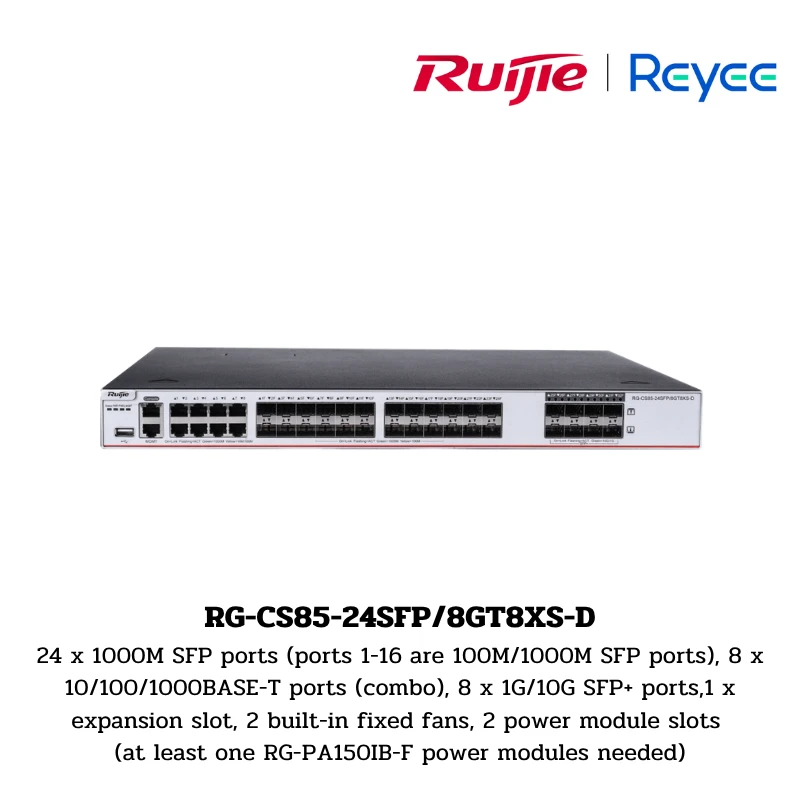

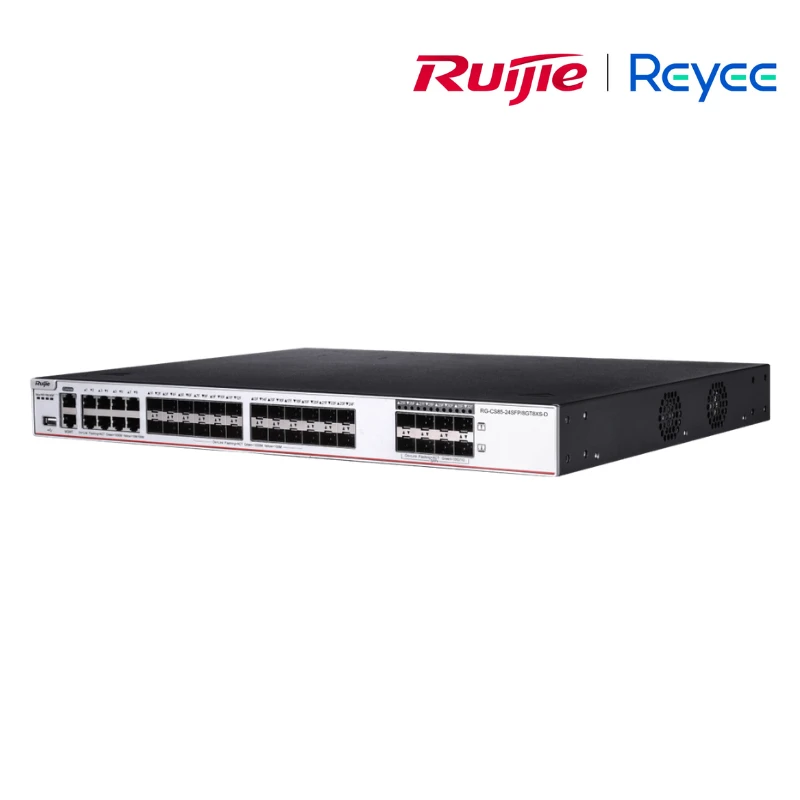

(RG-CS85-24SFP/8GT8XS-D) Ruijie Reyee 24 x 1000M SFP ports (ports 1-16 are 100M/1000M SFP ports), 8 x 10/100/1000BASE-T ports (combo), 8 x 1G/10G SFP+ ports,1 x expansion slot, 2 built-in fixed fans, 2 power module slots (at least one RG-PA150IB-F power modules needed)
สวิตช์เครือข่ายระดับ Core/Distribution รองรับพอร์ต SFP จำนวน 24 ช่อง และ 10G SFP+ จำนวน 8 ช่อง เหมาะสำหรับงาน Fiber Network หรือระบบที่ต้องการเชื่อมต่อระยะไกล รองรับ Combo Port (RJ45/SFP) เพื่อความยืดหยุ่นในการใช้งาน พร้อม Switching Capacity และ Forwarding Rate ระดับสูง รองรับการขยายระบบด้วย Expansion Slot และ Power Module
ข้อมูลจำเพาะ (Specification)
| รายการ | รายละเอียด (Description) |
|---|---|
| Service Port | 24 x 1GE SFP ports; Ports 1–16 support 100/1000 Mbps SFP; Ports 1–8 are 1GE SFP/RJ45 combo ports (100/1000BASE-X, 10/100/1000BASE-T); 8 x 1GE/10GE SFP+ ports |
| Management Port | 1 x Console, 1 x MGMT, 1 x USB 3.0 |
| Switching Capacity | 688 Gbps |
| Forwarding Rate | 512 Mpps |
| Cooling Mode | Fan cooling |
| Power Consumption | <77 W (excluding expansion modules); <102 W (including expansion modules) |
| Link Aggregation | Supported |
| Dimensions (W x D x H) | 440 x 340 x 44 mm (1U) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Warranty Period | 3 Years |
