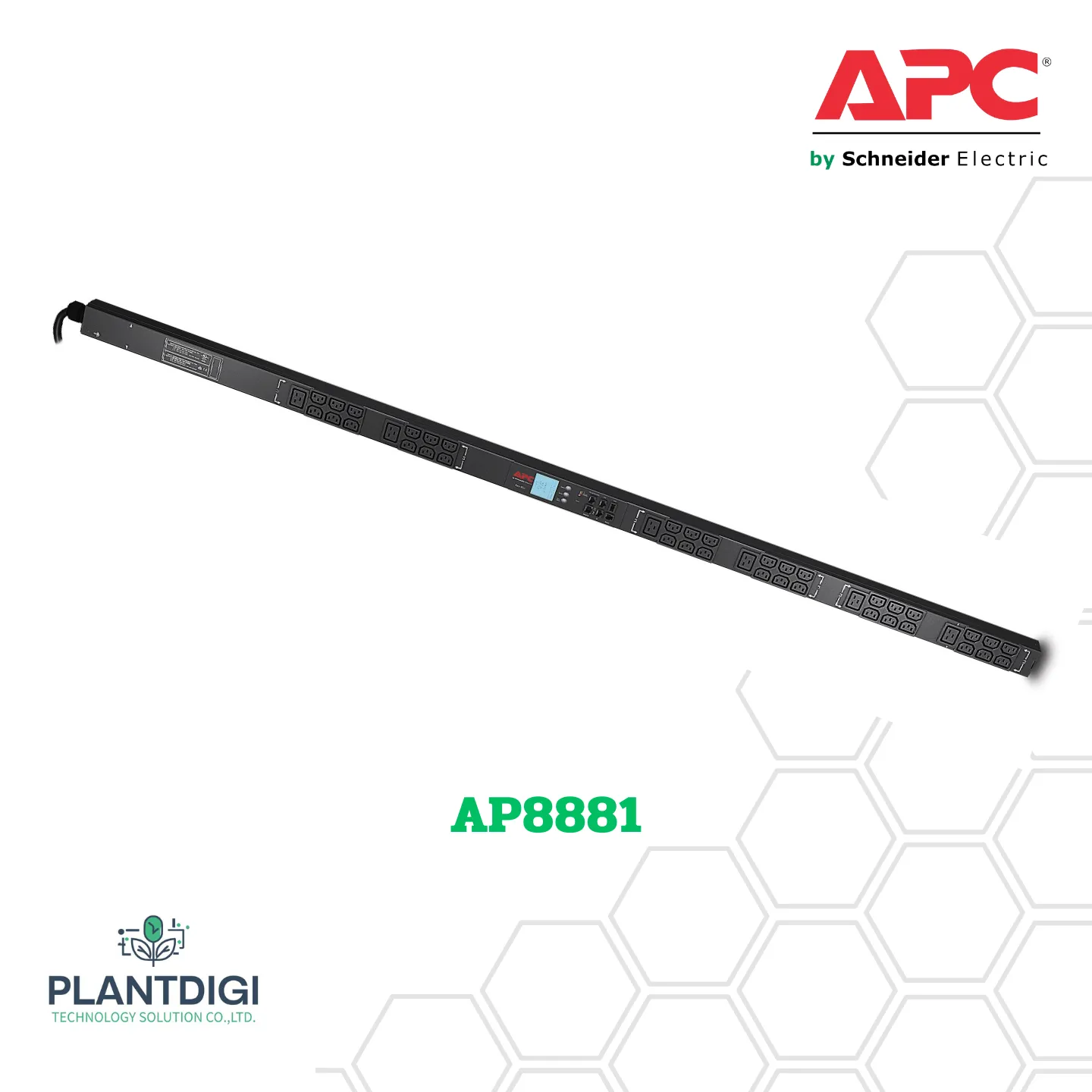

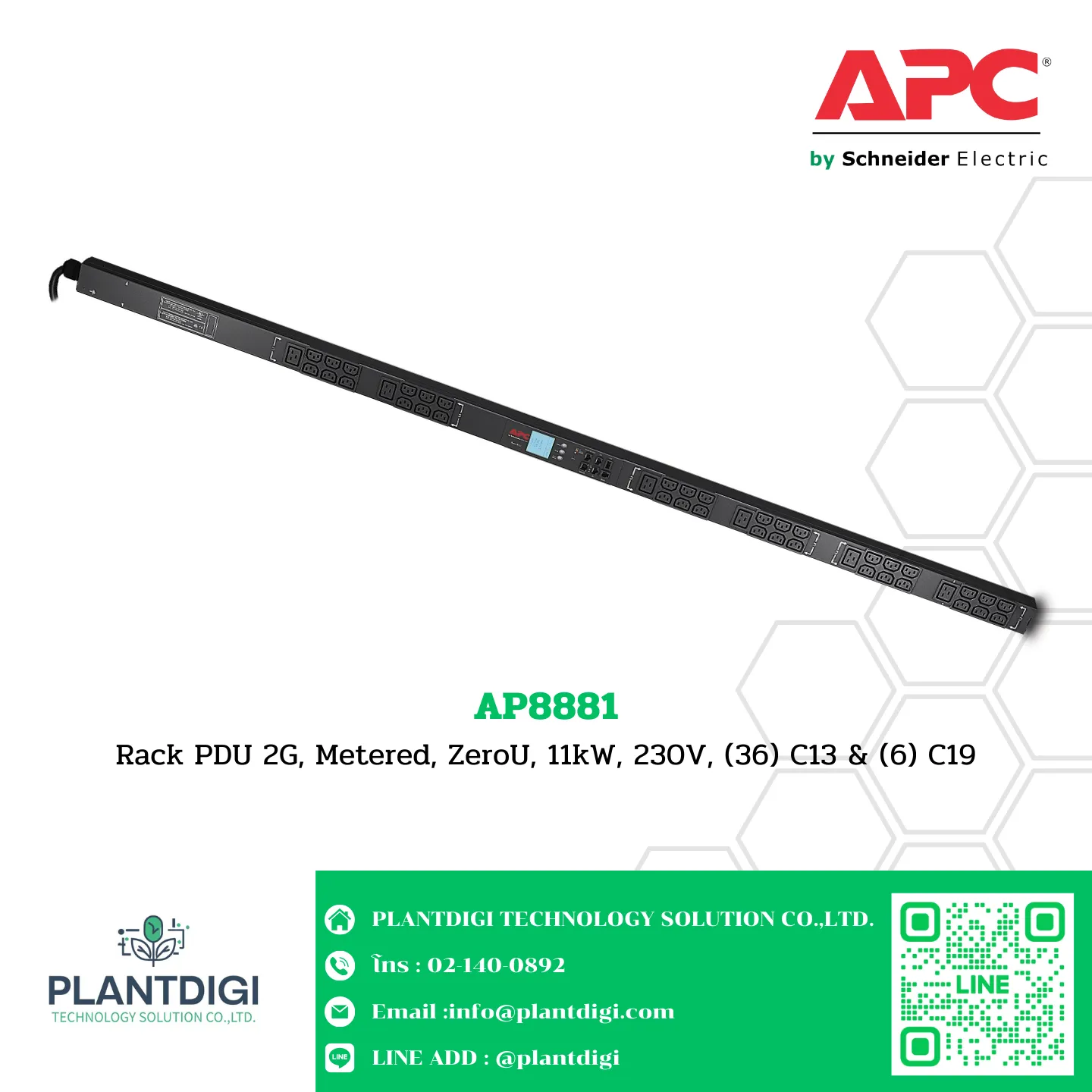

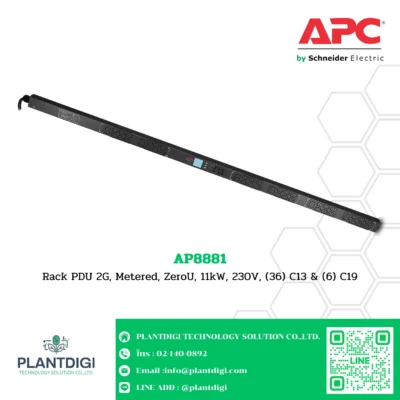

APC Metered Rack PDU รุ่น AP8881

AP8881
Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19

– Ideal for colocation, large or remote data center operators
– Plan capacity & balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
– Enables improved energy efficiency and scope 1 and 3 emissions tracking
– Easily monitor and manage through EcoStruxure IT and other platforms
– Stay on top of potential circuit overloads with user-defined alarms
———
Overview
———
Presentation: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

—–
Main
—–
Colour: Black
Product or component type: PDU
PDU type: Metered
Cord length: 1.8 m
Number of cables: 1
Provided equipment: Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide
————–
Complementary
————–
Input Voltage: 400 V 3 phases
Height: 179.1 cm
Width: 5.6 cm
Output Voltage: 230 V
Depth: 4.4 cm
Net weight: 6.38 kg
mounting location: Side
Mounting preference: No preference

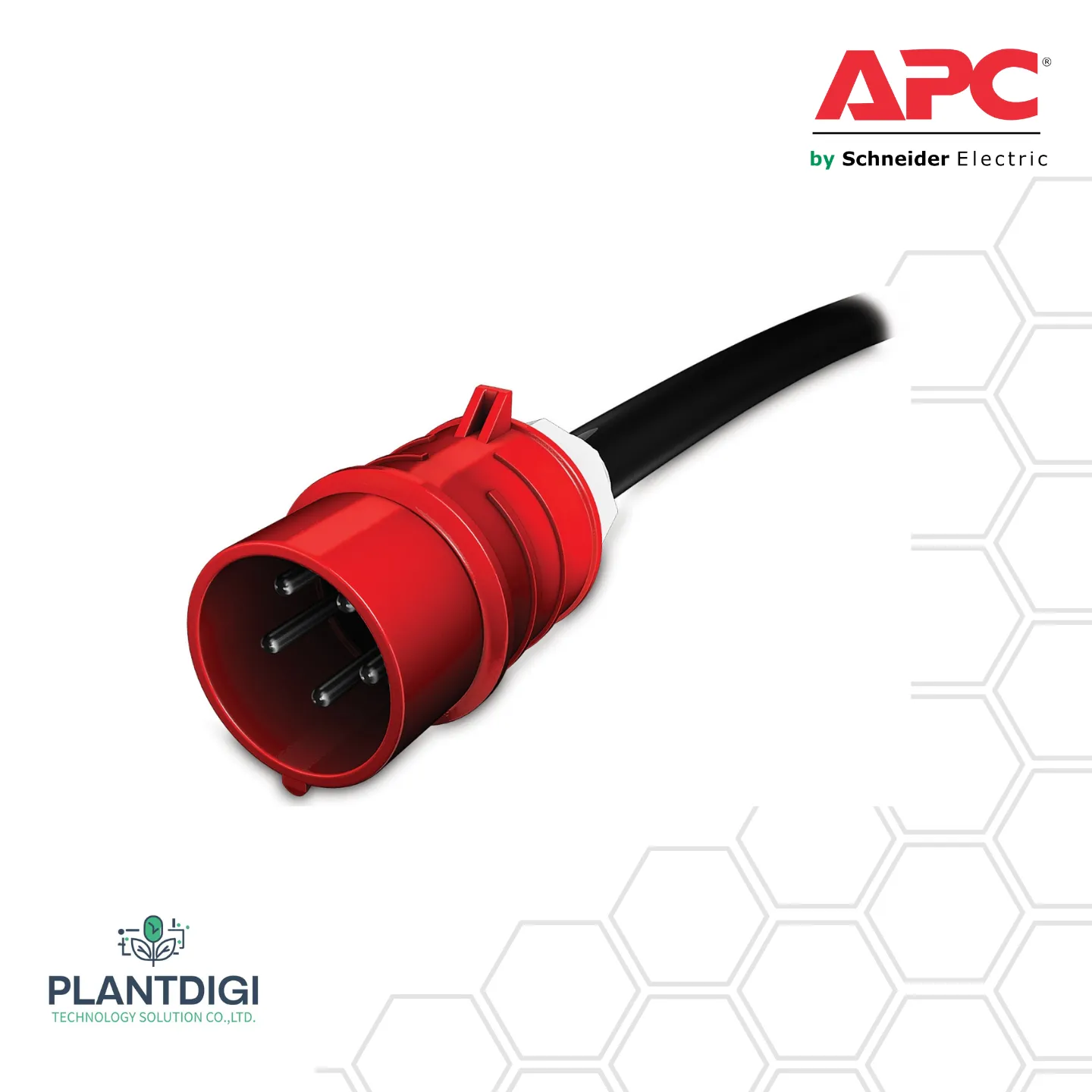

Input Plug Type: IEC 60309 16 A 3P + N + PE, IEC 60309 20 A 3P + N + PE
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
[In] rated current: 16 A
Max line current: 16 A
Input current limits: 16 A
Load capacity: 11000 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 36 IEC 60320 C13, 6 IEC 60320 C19
————
Environment
————
product certifications: VDE
Standards: CSA C22.2 No 60950, IEC 60950, UL 60950-1
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 200 cm
Package 1 Width: 16.2 cm
Package 1 Length: 10.7 cm
Package 1 Weight: 8.02 kg
———————
Contractual warranty
———————
Warranty: 2 years repair or replace
