H3C Access Point Controller รุ่น WX2812X-PWR

WX2812X-PWR

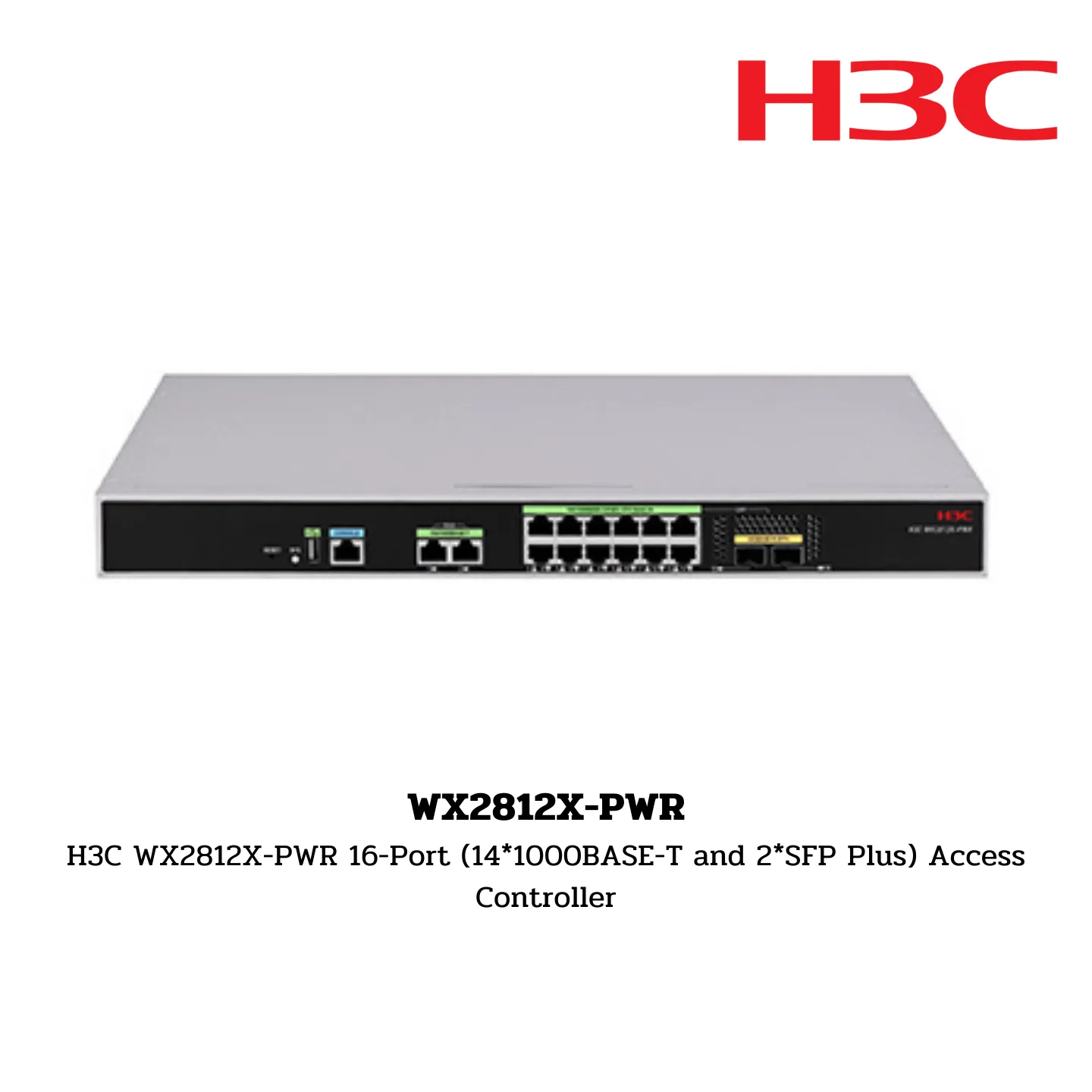

H3C WX2812X-PWR 16-Port (14*1000BASE-T and 2*SFP Plus) Access Controller

Hardware Specifications

Dimensions (W × D × H):

• 440 × 220 × 43.6 mm

Weight:

• 2.9 kg

Wireless Throughput:

• 4 Gbps

Ports:

• LAN: 2 × SFP Plus + 12 × PoE+
• WAN: 2 × GE
• USB: 1

Power Supplies:

• 100V AC ~ 240V AC, 50/60Hz

Operating and Storage Temperature:

• Operating: 0℃ ~ 45℃
• Storage: -40℃ ~ 70℃

Operating and Storage Relative Humidity:

• 5% ~ 95%

Safety Compliance:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• EN 60950-1/A11
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• EN 60601-1-2
• FDA 21 CFR Subchapter J

EMC:

• ETSI EN 300 386 V1.3.3:2005
• EN 55024: 1998 + A1: 2001 + A2: 2003
• EN 55022: 2006
• VCCI V-3: 2007
• ICES-003: 2004
• EN 61000-3-2: 2000 + A1: 2001 + A2: 2005
• EN 61000-3-3: 1995 + A1: 2001 + A2: 2005
• AS/NZS CISPR 22: 2004
• FCC PART 15: 2005
• GB 9254: 1998
• GB/T 17618: 1998

Software Specifications

Basic Functions:

• Number of managed APs by default: 18
• Maximum number of managed APs: 18
• Maximum users of authentication: 1024

802.11 MAC:

• 802.11 Protocols: Support
• Multi-SSID (Per RF): 18
• SSID hiding: Support
• 11G protection: Support
• 11n only: Support
• Use number limit: SSID based, per RF based
• Keepalive: Support
• Idle: Support
• Multi-country code assignment: Support
• Wireless user isolation: VLAN based and SSID based 2-layer isolation
• 20MHz/40MHz auto-switch in 40MHz mode: Support
• Local forwarding: Based on SSID + VLAN

CAPWAP:

• Auto AP serial number entry: Support
• AC discovery (DHCP option43, DNS): Support
• Compatible with LWAPP AP: Support
• IPv6 tunnel: Support
• Clock synchronization: Support
• Jumbo frame forwarding: Support
• Assign basic AP network parameter through AC: Static IP, VLAN, connected AC address
• L2/L3 connection between AP and AC: Support
• NAT traversal between AP and AC: Support
• Remote AP: Support

Roaming:

• Intra-AC, Inter-AP L2 and L3 roaming: Support
• Inter-AC, Inter-AP L2 and L3 roaming: Support
• WIFI5 zero roaming: Support
• WIFI6 zero roaming: Support
• AGV zero roaming: Support

GW Features:

• NAT, PPPoE, DDNS: Support
• SSL VPN, IPSEC VPN, RIP, GRE: Support

Access Control:

• Open system, Shared-Key: Support
• WEP-64/128, dynamic WEP: Support
• WPA, WPA2, WPA3: Support
• TKIP, CCMP: Support
• SSH v1.5/v2.0: Support
• Wireless EAD: Support
• Portal authentication: Remote Authentication, external server
• Portal page redirection: SSID based, AP Portal page push
• Portal by-pass Proxy: Support
• 802.1x authentication: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)
• Local authentication: 802.1X, Portal, MAC authentication
• LDAP authentication: 802.1X and Portal
• EAP-GTC and EAP-TLS: Supported by 802.1X login
• AP location-based user access control: Support
• Guest Access control: Support
• VIP channel, ARP attack detection, SSID anti-spoofing: Support
• AAA server selection based on SSID and domain: Support
• AAA server back up: Support
• Local AAA server for wireless user: Support
• TACACS+: Support

QoS:

• Priority mapping: Support
• L2-L4 packet filtering and traffic classification: Support
• Rate limit: Granularity of 8Kbps
• 802.11e/WMM: Support
• Access control based on user profile: Support
• Intelligent bandwidth limit: Equal bandwidth share algorithm, user specific
• Intelligent bandwidth guarantee: Free flow for packets from every SSID when traffic is not congested, minimum bandwidth guarantee when traffic is congested
• QoS Optimization for SVP phone: Support
• CAC (Call Admission Control): Based on user number/bandwidth
• End-to-end QoS: Support
• AP upload speed limit: Support

RF Management:

• Country code lock: Support
• Static and auto channel/power configuration: Support
• Auto transmission rate adjustment: Support
• Coverage hole detection and correction: Support
• Load balancing: Based on traffic, user & frequency
• Intelligent load balancing: Support
• AP load balancing group: Auto-discovery and flexible setting

Security:

• Static and dynamic blacklist, White list: Support
• Rogue AP detection: SSID based, BSSID, device OUI
• Rogue AP countermeasure: Support
• Flooding attack detection, Spoof attack detection, Weak IV attack detection: Support
• WIPS/WIDS: 7-layer mobile security

Layer 2 Protocol:

• ARP, 802.1p, 802.1q, 802.1x: Support

IP Protocol:

• IPv4, Native IPv6: Support
• IPv6 SAVI, IPv6 Portal: Support

Multicast:

• MLD Snooping, IGMP Snooping: Support
• Multicast group: 256
• Multicast to Unicast (IPv4, IPv6): Set unicast limit based on environment

Redundancy:

• 1+1 failover between ACs, Dual-link backup: Support

Management and Deployment:

• Network management: WEB, SNMP v1/v2/v3, RMON
• Network deployment: WEB, CLI, Telnet, FTP
• WiFi location: CUPID location

Green Features:

• Scheduled shutdown of AP RF interface and wireless service: Support
• Per-packet power adjustment (PPC): Support

WLAN Application:

• RF Ping, Remote probe analysis, RealTime Spectrum Guard (RTSG), Wireless Intelligent Application Aware (wIAA): Support
• Packet forwarding fairness adjustment, 802.11n packet forwarding suppression, Access based traffic shaping: Support
• Co-AP channel sharing, Co-AP channel reuse: Support
• RF interface transmission rate adjustment algorithm, Drop wireless packet with weak signal, Disable user access with weak signal, Disable multicast packet caching, Status blink (limited to some AP): Support

New Added Features:

• Policy forwarding, VLAN pool, Bonjour gateway: Support
• 802.11w, 802.11k, 802.11v, 802.11r: Support
• Hotspot 2.0 (802.11u): Support
• NAT, VPN: Support
