WX5860X H3C Access Point Controller

WX5860X

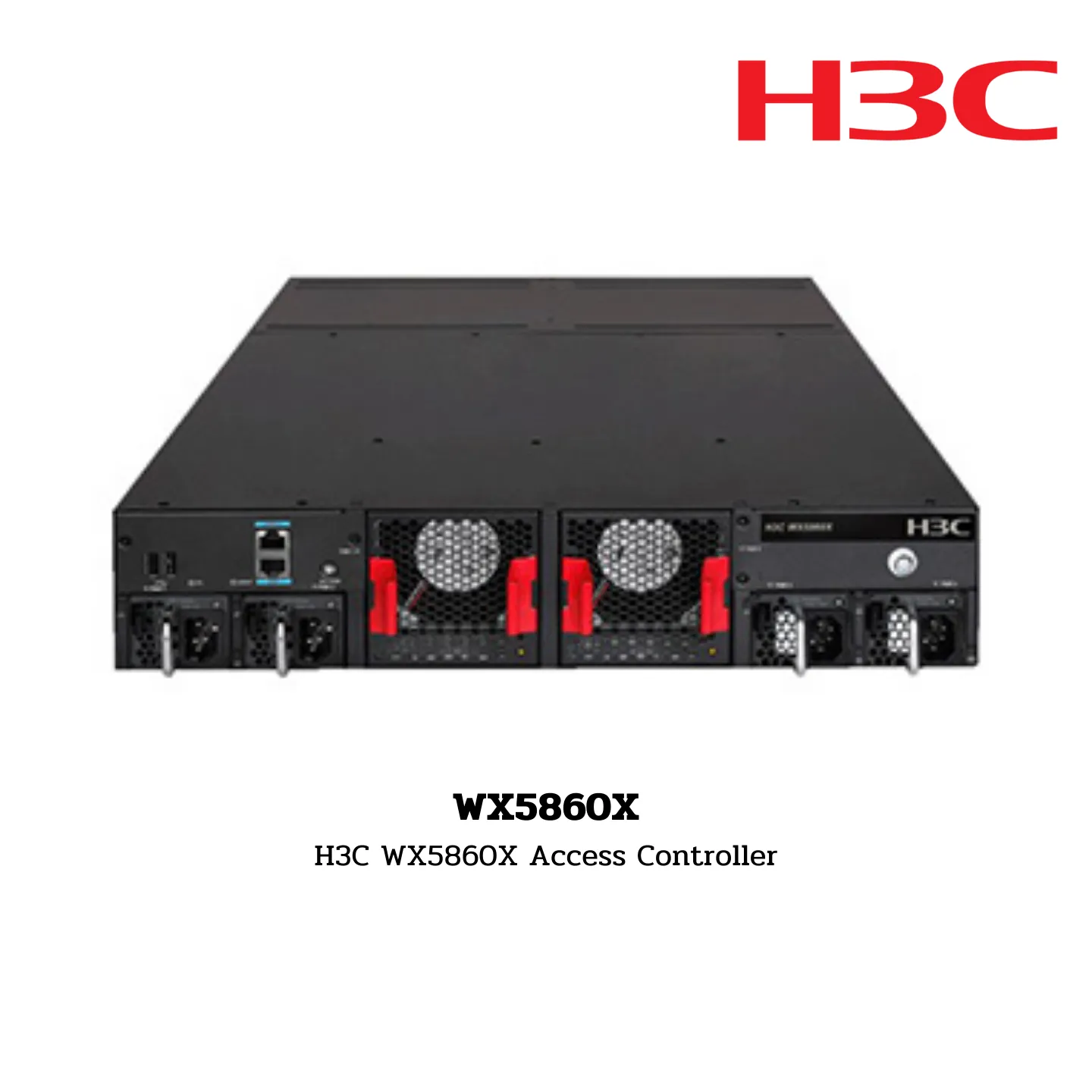

H3C WX5860X Access Controller

Hardware Specifications

Dimensions (W × D × H):

• 88.1 × 440 × 660 mm (3.47 × 17.32 × 25.98 in)

Weight (full configuration):

• 22.9 kg

Throughput:

• 80/160 Gbps

Ports:

• Supports up to 2 interface cards. Specifications for each card:
  • 2 × 40G (QSFP+)
  • 8 × 10G (SFP+)
  • 8 × GE Combo (2 × 40G and 8 × 10G are mutually exclusive)
• 1 × Console
• 2 × USB
• 1 × OOBM

Power Supplies:

• Removable AC or DC power modules
• Supports 1+1 or 1+3 power module redundancy
• (Power module should be purchased separately)

Removable Power Supply:

• Rated Input Voltage Range: 100 to 240 VAC @ 50/60 Hz
• Max Input Voltage Range: 90 to 264 VAC @ 47 to 63 Hz
• Max Output Power: 650 W

Max Power Consumption:

• < 502 W

Temperature:

• Operating Temperature: 0°C to +45°C (+32°F to +113°F)
• Storage Temperature: –40°C to +70°C (–40°F to +158°F)

Operating and Storage Relative Humidity:

• 5% ~ 95%

Safety Compliance:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• EN 60950-1/A11
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• EN 60601-1-2
• FDA 21 CFR Subchapter J

EMC:

• ETSI EN 300 386 V1.3.3:2005
• EN 55024: 1998 + A1: 2001 + A2: 2003
• EN 55022: 2006
• VCCI V-3: 2007
• ICES-003: 2004
• EN 61000-3-2: 2000 + A1: 2001 + A2: 2005
• EN 61000-3-3: 1995 + A1: 2001 + A2: 2005
• AS/NZS CISPR 22: 2004
• FCC PART 15: 2005
• GB 9254: 1998
• GB/T 17618: 1998

MTBF (Mean Time Between Failures):

• ≥ 52.4 years

Software Specifications

Hardware Specifications

Dimensions (W × D × H):

• 88.1 × 440 × 660 mm (3.47 × 17.32 × 25.98 in)

Weight (full configuration):

• 22.9 kg

Throughput:

• 80/160 Gbps

Ports:

• Supports up to 2 interface cards. Specifications for each card:
  • 2 × 40G (QSFP+)
  • 8 × 10G (SFP+)
  • 8 × GE Combo (2 × 40G and 8 × 10G are mutually exclusive)
• 1 × Console
• 2 × USB
• 1 × OOBM

Power Supplies:

• Removable AC or DC power modules
• Supports 1+1 or 1+3 power module redundancy (power module should be purchased separately)

Removable Power Supply:

• Rated Input Voltage Range: 100 to 240 VAC @ 50/60 Hz
• Max Input Voltage Range: 90 to 264 VAC @ 47 to 63 Hz
• Max Output Power: 650 W

Max Power Consumption:

• < 502 W

Temperature:

• Operating Temperature: 0°C to +45°C (+32°F to +113°F)
• Storage Temperature: –40°C to +70°C (–40°F to +158°F)

Operating and Storage Relative Humidity:

• 5% ~ 95%

Safety Compliance:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• EN 60950-1/A11
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• EN 60601-1-2
• FDA 21 CFR Subchapter J

EMC:

• ETSI EN 300 386 V1.3.3:2005
• EN 55024: 1998 + A1: 2001 + A2: 2003
• EN 55022: 2006
• VCCI V-3: 2007
• ICES-003: 2004
• EN 61000-3-2: 2000 + A1: 2001 + A2: 2005
• EN 61000-3-3: 1995 + A1: 2001 + A2: 2005
• AS/NZS CISPR 22: 2004
• FCC PART 15: 2005
• GB 9254: 1998
• GB/T 17618: 1998

MTBF (Mean Time Between Failures):

• ≥ 52.4 years

Software Specifications

Basic Capabilities:

• Supported APs without license: 0
• License Type: 1/4/8/16/32/64/128/512/1024
• Max. Manageable Number of APs: 6656/10240
• Max. Configurable Number of APs: 40960
• Max. Configurable Number of SSIDs: 8192
• Max. Manageable Number of Wireless Users: 102400

802.11 MAC:

• 802.11 Protocol Suite: Supported
• Hide SSID: Supported
• 802.11g Protection: Supported
• 802.11n Only: Supported
• Client Quantity Limit: SSID-based and radio-based client quantity limit
• Online Client Detection: Supported
• Automatic Client Aging: Supported
• Multi-country Code: Supported
• User Isolation: VLAN-based and SSID-based user isolation
• 20 MHz/40 MHz Auto-switch in 40 MHz Mode: Supported
• Local Forwarding: Based on SSID + VLAN

CAPWAP:

• Auto AP: Supported
• AC Discovery (DHCP option 43 and DNS): Supported
• DTLS Encryption: Supported
• IPv6 Tunnel: Supported
• Network Synchronization: Supported
• Jumbo Frame Forwarding: Supported
• AP Preprovisioning: Supported
• AP Basic Network Settings: Static IP, VLAN, AC’s IP address
• NAT Traversal between AP and AC: Supported

Roaming:

• Intra-AC Layer 2 and Layer 3 Roaming: Supported
• Inter-AC Layer 2 and Layer 3 Roaming: Supported

Access Control:

• Open System, Shared Key Authentication: Supported
• WEP-64/128, Dynamic WEP: Supported
• WPA, WPA2, WPA3: Supported
• WPA/WPA2 Authentication and Encryption:
  • WPA/WPA2-PSK + TKIP
  • WPA/WPA2-PSK + CCMP
  • WPA/WPA2-802.1X + TKIP
  • WPA/WPA2-802.1X + CCMP
  • WPA/WPA2-PSK + TKIP-CCMP
  • WPA/WPA2-802.1X + TKIP-CCMP
• Encryption:
  • TKIP, CCMP
  • WPA2-Personal (802.11i)
  • WPA2-Enterprise with 802.1X
  • WPA3-Personal, WPA3-Enterprise
  • WPA3-Enhanced Open (OWE)
  • Advanced Encryption Standard (AES)
  • WAPI (optional)
• SSH 1.5/2.0: Supported
• Wireless End-point Access Domination (EAD): Supported
• Oasis Cloud Authentication: Supported
• Portal Authentication: Transparent authentication, remote or external server
• Portal Webpage Redirection: SSID-based and AP-based portal webpage redirection
• Portal By-pass Proxy: Supported
• 802.1X Authentication: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)
• PSK: Supported
  • Multiple SSIDs and multiple PSKs
  • Each SSID use a unique PSK password
  • Private Pre-Shared Key (PPSK)
• Local Authentication: 802.1X, Portal Authentication, MAC Authentication
• LDAP Authentication: Supported
• Portal Access: 802.1X access with EAP-GTC or EAP-TLS
• AP-based Access Control: Supported
• Guest Access Control: Supported
• BYOD: Identifies device types according to the OUI in the MAC address and the user agent (UA) field in an HTTP packet
• VIP Tunnel: Supported
• ARP Anti-attack: Wireless SAVI
• SSID Anti-spoofing: Username and SSID binding
• Band Steering: Improve service quality by prioritizing access to 5G frequency bands for wireless clients
• Domain- and SSID-based AAA Server Selection: Supported
• AAA Server Backup: Supported
• Local AAA Server for Wireless Clients: Supported
• Radius Authentication and Accounting Packets: Supported
• TACACS+: Supported

QoS:

• Priority Mapping: Supported
• Layer 2 to Layer 4 Traffic Classification: Supported
• Rate Limit: Granularity of 8 Kbps
• 802.11e/WMM: Supported
• User Profile-based Access Control: Supported
• Intelligent Bandwidth Limit: Equal bandwidth share algorithm, user specific
• Intelligent Bandwidth Guarantee: Free flow for packets from every SSID when traffic is not congested, minimum bandwidth specified for each SSID when traffic is congested
• QoS Optimization for SVP Phone: Supported
• Call Admission Control (CAC): Based on client quantity or bandwidth
• End-to-end QoS: Supported
• AP Uplink Rate Limit: Supported

WLAN Radio Resource Management (RRM):

• Country Code Lock: Supported
• Static Channel and Power Configuration: Supported
• Dynamic Channel and Power Configuration: Supported
• Transmit Power Control (TPC): Supported
• Coverage Hole Detection and Correction: Supported
• Load Balancing Mode: Supported
  • Traffic-based Load Balancing
  • Session-based Load Balancing
  • Radio Group-based Load Balancing (dual-band supported)
  • Intelligent Load Balancing
  • AP Load Balancing Group: Auto-discovery and flexible setting

Security:

• Static and Dynamic Blacklist, Whitelist: Supported
• Rogue AP Detection: SSID based, BSSID, device OUI
• Countermeasures against Rogue APs: Supported
• Anti-flooding, Anti-spoofing, Anti-weak IV Attack: Supported
• WIPS: 7-layer mobile security protection

Layer 2 Protocols:

• ARP Proxy, 802.1p, 802.1q, 802.1X, LACP, Broadcast Storm Suppression: Supported
