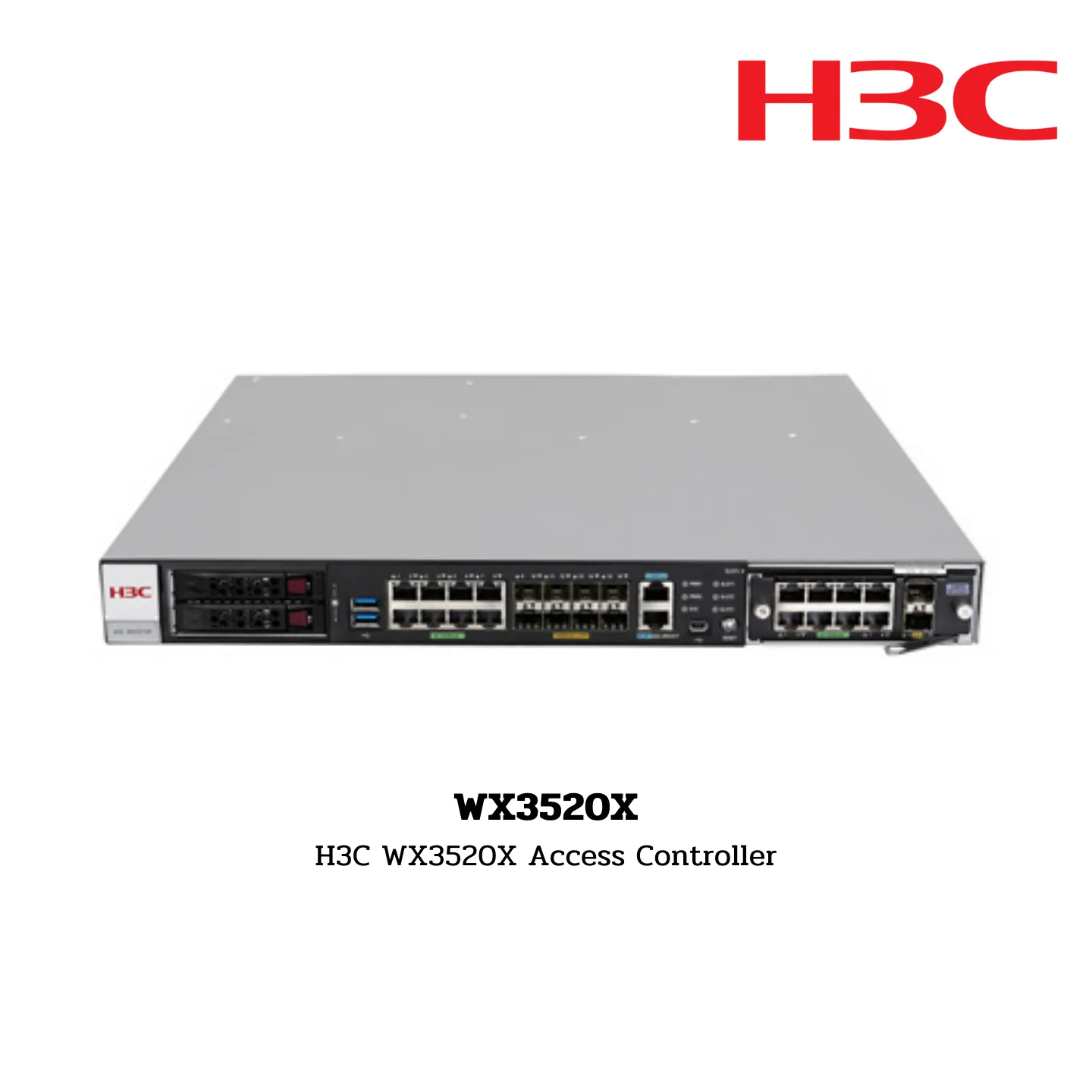

WX3520X H3C Access Point Controller

WX3520X
Access Controller

Hardware Specifications

Overall Dimensions (L × W × H):

• 440 mm × 435 mm × 44 mm

Fully Loaded Weight:

• 9 kg

Interface:

• Fixed 8 × GE & 8 × SFP & 1 × OOBM (out-of-band management port) & 2 × USB & 1 × Console
• Expandable to 8 GE & 2 SFP+

Throughput:

• 20 Gbps

Power Supply:

• Pluggable power supply (supports hot swap), 1+1 redundant backup, supports AC or DC (power supply needs to be configured separately)

Operating and Storage Temperature:

• Operating: 0℃ ~ 45℃
• Storage: -40℃ ~ 70℃

Operating and Storage Relative Humidity (non-condensing):

• 5% ~ 95%

Safety Regulations:

• FDA 21 CFR Subchapter J
• GB 4943.1
• UL 62368-1
• CAN/CSA C22.2 No 62368-1
• IEC 62368-1
• EN 62368-1
• AS/NZS 62368-1

EMC:

• CISPR 35:2016
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• ETSI EN 300 386 V1.6.1 (2012-09)
• ETSI EN 300 386 V2.1.1 (2016-07)
• EN 55032:2015 + A1:2020
• EN 55032:2015 + A11:2020
• EN 55035:2017 + A11:2020
• CISPR 32:2015 + AMD1:2019
• AS/NZS CISPR 32:2015 + AMD1:2020
• EN IEC 61000-3-2:2019 + A1:2021
• EN 61000-3-3:2013 + A1:2019 + A2:2021 + AC:2022
• ETSI EN 300 386 V2.2.1 (2022-09)
• GB/T 9254.1-2021

MTBF (Mean Time Between Failures):

• ≥ 83 years
