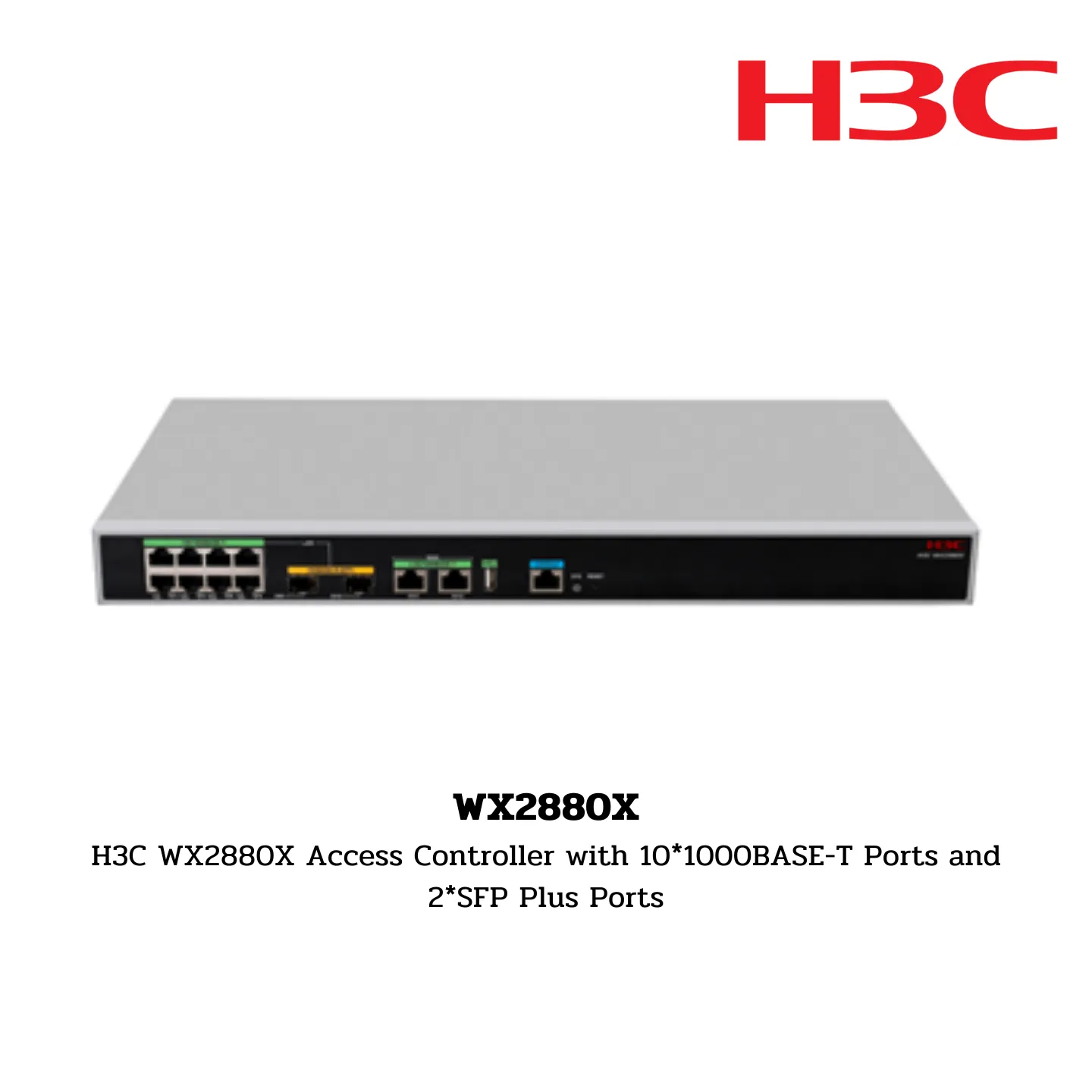

WX2880X H3C Access Point Controller H3C WX2880X Access Controller with 10*1000BASE-T Ports and 2*SFP Plus Ports

WX2880X
H3C WX2880X Access Controller with 10*1000BASE-T Ports and 2*SFP Plus Ports

Hardware Specifications

Dimensions (W × D × H):

• 440 mm × 250 mm × 43.6 mm

Weight:

• 3.3 kg (dual power supply)

Wireless Throughput:

• 10 Gbps

Ports:

• LAN: WAN 2 × 2.5GE & LAN 8 × GE & LAN 2 × SFP+ & 1 × USB + 1 × Console

Power Supplies:

• Built-in dual power supply

Operating and Storage Temperature:

• Operating: 0℃ ~ 45℃
• Storage: -40℃ ~ 70℃

Operating and Storage Relative Humidity:

• 5% ~ 95%

Safety Compliance:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• AS/NZS 60950-1
• FDA 21 CFR Subchapter J
• GB 4943.1
• UL 62368-1
• CAN/CSA C22.2 No 62368-1
• IEC 62368-1
• EN 62368-1
• AS/NZS 62368-1

EMC:

• EN 55032:2012 Class A
• EN 55032:2012/AC:2013 Class A
• EN 55032:2015 Class A
• AS/NZS CISPR 32:2015 Class A
• EN 55024:2010
• EN 55024:2010+A1:2015
• EN 55035:2017
• EN 300 386 V2.1.1 (2016-07)
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• VCCI-CISPR 32:2016 Class A
• FCC Part 15 Subpart B Class A
• ICES-003 Issue 7 Class A
• ANSI C63.4-2014
• ANSI C63.4a-2017
• GB/T9254-2008

MTBF:

• ≥ 145 years

Software Specifications

Basic Functions:

• Number of managed APs by default: 0
• Size of license: 1/4/8/16/32/64/128
• Maximum number of managed APs: 288
• Maximum number of configured APs: 576
• Maximum users of authentication: 16384
• ARP table: 16384
• ND table: 8192

802.11 MAC:

• 802.11 Protocols: Supported
• Maximum SSID number of the whole machine: 128
• SSID hiding: Supported
• 11G protection: Supported
• 11n only: Supported
• Use number limit: SSID based, per RF based
• Keepalive: Supported
• Idle: Supported
• Multi-country code assignment: Supported
• Wireless user isolation: VLAN based and SSID based 2-layer isolation
• 20MHz/40MHz auto-switch in 40MHz mode: Supported
• Local forwarding: Based on SSID + VLAN

CAPWAP:

• Auto AP serial number entry: Supported
• AC discovery (DHCP option43, DNS): Supported
• IPv6 tunnel: Supported
• Clock synchronization: Supported
• Jumbo frame forwarding: Supported
• Assign basic AP network parameter through AC: Static IP, VLAN, connected AC address
• L2/L3 connection between AP and AC: Supported
• NAT traversal between AP and AC: Supported

Roaming:

• Intra-AC, Inter-AP L2 and L3 roaming: Supported
• Inter-AC, Inter-AP L2 and L3 roaming: Supported

GW Features:

• NAT: Supported
• PPPoE: Supported
• DDNS: Supported
• SSL VPN: Supported
• IPSEC VPN: Supported
• RIP: Supported
• GRE: Supported

Access Control:

• Open system, Shared-Key: Supported
• WEP-64/128, dynamic WEP: Supported
• WPA, WPA2, WPA3: Supported
• TKIP, CCMP: Supported
• SSH v1.5/v2.0: Supported
• Wireless EAD: Supported
• Portal authentication: Remote Authentication, external server
• Portal page redirection: SSID based, AP Portal page push
• Portal by-pass Proxy: Supported
• 802.1x authentication: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)
• Local authentication: 802.1X, Portal, MAC authentication
• LDAP authentication: 802.1X and Portal
• EAP-GTC and EAP-TLS: Supported by 802.1X login
• AP location-based user access control: Supported
• Guest Access control: Supported
• VIP channel: Supported
• ARP attack detection: Wireless SAVI
• SSID anti-spoofing: SSID + user name binding
• AAA server selection based on SSID and domain: Supported
• AAA server back up: Supported
• Local AAA server for wireless user: Supported
• TACACS+: Supported

QoS:

• Priority mapping: Supported
• L2-L4 packet filtering and traffic classification: Supported
• Rate limit: Granularity of 8Kbps
• 802.11e/WMM: Supported
• Access control based on user profile: Supported
• Intelligent bandwidth limit: Equal bandwidth share algorithm, user specific
• Intelligent bandwidth guarantee: Free flow for packets from every SSID when traffic is not congested, minimum bandwidth guarantee when traffic is congested
• QoS Optimization for SVP phone: Supported
• CAC (Call Admission Control): Based on user number/bandwidth
• End-to-end QoS: Supported
• AP upload speed limit: Supported

RF Management:

• Country code lock: Supported
• Static and auto channel/power configuration: Supported
• Auto transmission rate adjustment: Supported
• Coverage hole detection and correction: Supported
• Load balancing: Based on traffic, user & frequency
• Intelligent load balancing: Supported
• AP load balancing group: Auto-discovery and flexible setting

Security:

• Static and dynamic blacklist, White list: Supported
• Rogue AP detection: SSID based, BSSID, device OUI
• Rogue AP countermeasure: Supported
• Flooding attack detection, Spoof attack detection, Weak IV attack detection: Supported
• WIPS/WIDS: 7-layer mobile security

Layer 2 Protocol:

• ARP, 802.1p, 802.1q, 802.1x: Supported

IP Protocol:

• IPv4, Native IPv6: Supported
• IPv6 SAVI, IPv6 Portal: Supported

Multicast:

• MLD Snooping, IGMP Snooping: Supported
• Multicast group: 256
• Multicast to Unicast (IPv4, IPv6): Set unicast limit based on environment

Redundancy:

• 1+1 failover between ACs, Intelligent AP sharing among ACs, Remote AP: Supported

Management and Deployment:

• Network management: WEB, SNMP v1/v2/v3, RMON
• Network deployment: WEB, CLI, Telnet, FTP
• WiFi location: CUPID location

Green Features:

• Scheduled shutdown of AP RF interface and wireless service: Supported
• Per-packet power adjustment (PPC): Supported

WLAN Application:

• RF Ping, Remote probe analysis, RealTime Spectrum Guard (RTSG), Wireless Intelligent Application Aware (wIAA): Supported
• Packet forwarding fairness adjustment, 802.11n packet forwarding suppression, Access based traffic shaping: Supported
• Co-AP channel sharing, Co-AP channel reuse: Supported
• RF interface transmission rate adjustment algorithm, Drop wireless packet with weak signal, Disable user access with weak signal, Disable multicast packet caching, Status blink (limited to some AP): Supported

New Added Features:

• Policy forwarding, VLAN pool, Bonjour gateway: Supported
• 802.11w, 802.11k, 802.11v, 802.11r: Supported
• Hotspot 2.0 (802.11u): Supported
• NAT, VPN:
