H3C Access Point Controller รุ่น WX3840X

WX3840X

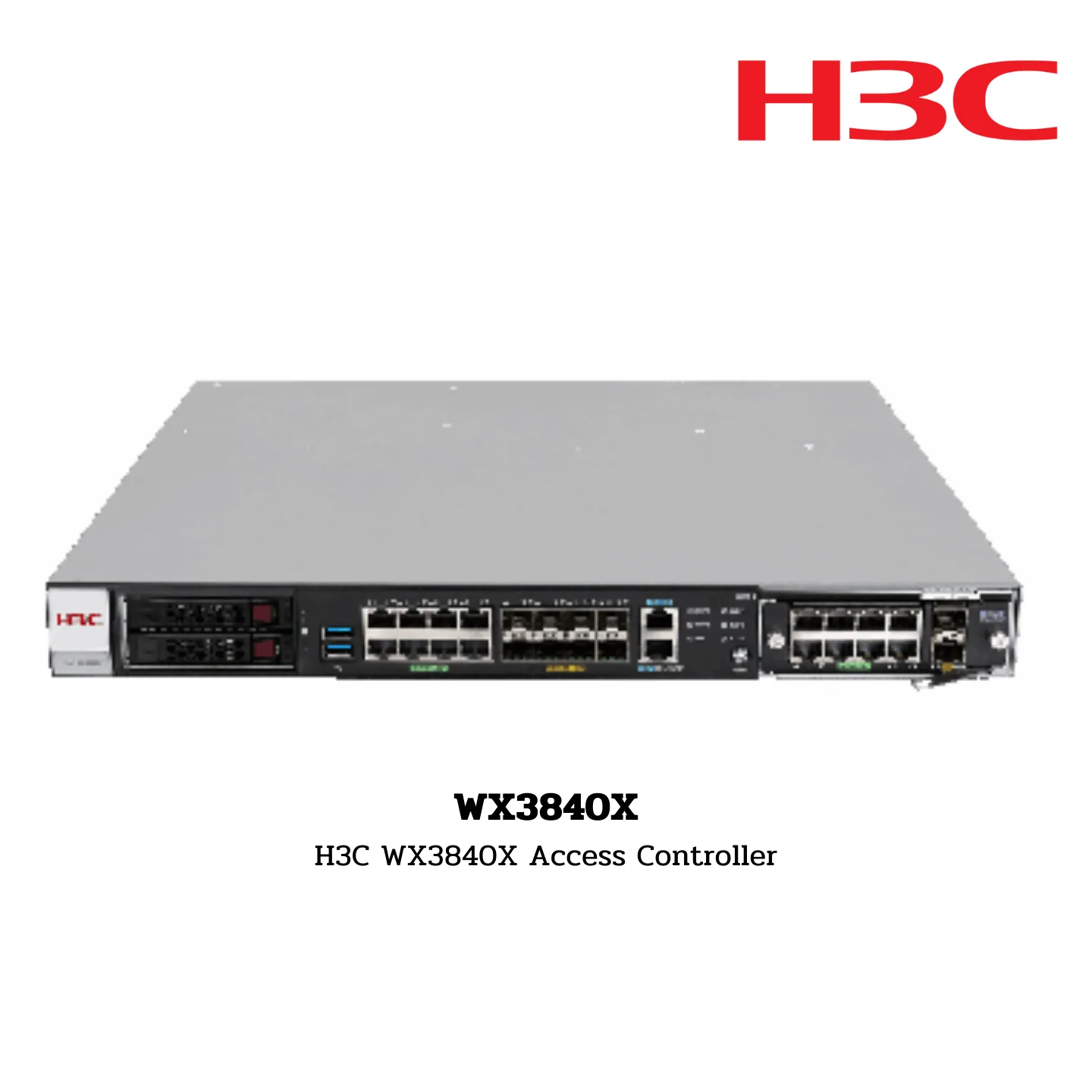

H3C WX3840X Access Controller

Hardware Specifications

Dimensions (W × D × H):

• 440 mm × 435 mm × 44 mm

Weight:

• 9 kg (installed with dual power supplies)

Wireless Throughput:

• 40 Gbps

Ports:

• Fixed:
  • 8 × GE ports
  • 8 × SFP ports
  • 1 × OOBM (out-of-band management) port
  • 2 × USB ports
• Expandable to:
  • 8 × GE ports
  • 4 × SFP+ ports

Power Supplies:

• Pluggable power supply, 1 + 1 redundant backup, supporting AC or DC (power supply needs to be configured separately)

Storage:

• H3C WCG300 1.92TB 6G SATA 2.5in SSD

Max Power Consumption:

• 36 to 107 W

Operating and Storage Temperature:

• Operating: 0℃ ~ 45℃
• Storage: -40℃ ~ 70℃

Operating and Storage Relative Humidity:

• 5% ~ 95%

Safety Compliance:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• EN 60950-1/A11
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• EN 60601-1-2
• FDA 21 CFR Subchapter J

EMC:

• ETSI EN 300 386 V1.3.3:2005
• EN 55024: 1998 + A1: 2001 + A2: 2003
• EN 55022: 2006
• VCCI V-3: 2007
• ICES-003: 2004
• EN 61000-3-2: 2000 + A1: 2001 + A2: 2005
• EN 61000-3-3: 1995 + A1: 2001 + A2: 2005
• AS/NZS CISPR 22: 2004
• FCC PART 15: 2005
• GB 9254: 1998
• GB/T 17618: 1998

MTBF (Mean Time Between Failures):

• ≥ 83 years

Software Specifications

Basic Functions

• Number of managed APs by default: 0
• Size of license: 1/4/8/16/32/64/128/512/1024
• Maximum number of managed APs: 1536 Expandable to 2048
• Maximum number of STA: 30720

802.11 MAC

• 802.11 Protocols: Supported
• Max number of SSIDs: 2048
• SSID hiding: Supported
• 11G protection: Supported
• 11n only: Supported
• Use number limit: SSID based, per RF based
• Keep-alive: Supported
• Idle: Supported
• Multi-country code assignment: Supported
• Wireless user isolation: VLAN based and SSID based 2-layer isolation
• 20MHz/40MHz auto-switch in 40MHz mode: Supported
• LACP: Supported
• Local forwarding: Based on SSID + VLAN

CAPWAP

• Auto AP serial number entry: Supported
• AC discovery (DHCP option43, DNS): Supported
• IPv6 tunnel: Supported
• DTLS encryption: Supported
• Clock synchronization: Supported
• Jumbo frame forwarding: Supported
• Assign basic AP network parameter through AC: Static IP, VLAN, connected AC address
• L2/L3 connection between AP and AC: Supported
• NAT traversal between AP and AC: Supported

Roaming

• Intra-AC, Inter-AP L2 and L3 roaming: Supported
• Inter-AC, Inter-AP L2 and L3 roaming: Supported

GW Features

• NAT: Supported
• PPPoE: Supported
• DDNS: Supported
• IPSEC VPN: Supported
• SSL VPN: Supported
• GRE: Supported

Access Control

• Open system, Shared-Key: Supported
• WEP-64/128, dynamic WEP: Supported
• WPA/WPA2 authentication and encryption:
  • WPA/WPA2-PSK + TKIP
  • WPA/WPA2-PSK + CCMP
  • WPA/WPA2-802.1X + TKIP
  • WPA/WPA2-802.1X + CCMP
  • WPA/WPA2-PSK + TKIP-CCMP
  • WPA/WPA2-802.1X + TKIP-CCMP
• Encryption: TKIP, CCMP, AES
  • WPA2-Personal (802.11i)
  • WPA2-Enterprise with 802.1X
  • WPA3-Personal, WPA3-Enterprise
  • WPA3-Enhanced Open (OWE)
  • Advanced Encryption Standard (AES)
• SSH v1.5/v2.0: Supported
• Wireless EAD: Supported
• PSK: Supported
  • Multiple SSIDs and multiple PSKs
  • Each SSID use a unique PSK password
  • Private Pre-Shared Key (PPSK)
• Portal authentication: Remote Authentication, external server
• Portal page redirection: SSID based, AP Portal page push
• Portal by-pass Proxy: Supported
• 802.1x authentication: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)
• Local authentication: 802.1X, Portal, MAC authentication
• LDAP authentication: 802.1X and Portal
• EAP-GTC and EAP-TLS: Supported by 802.1X login
• AP location-based user access control: Supported
• Guest/Captive portal control: Supported
• VIP channel: Supported
• ARP attack detection: Wireless SAVI
• SSID anti-spoofing: SSID + user name binding
• AAA server selection based on SSID and domain: Supported
• Radius: Radius authentication and accounting packets
• AAA server back up: Supported
• Local AAA server for wireless user: Supported
• Third-party server: ISE/ClearPass/FreeRADIUS/Active Directory
• TACACS+: Supported

QoS

• Priority mapping: Supported
• L2-L4 packet filtering and traffic classification: Supported
• Rate limit: Granularity of 8Kbps
• 802.11e/WMM: Supported
• Access control based on user profile: Supported
• Intelligent bandwidth limit: Equal bandwidth share algorithm, user specific
• Intelligent bandwidth guarantee: Free flow for packets from every SSID when traffic is not congested, minimum bandwidth guarantee when traffic is congested
• QoS Optimization for SVP phone: Supported
• CAC (Call Admission Control): Based on user number/bandwidth
• End-to-end QoS: Supported
• AP upload speed limit: Supported

RF Management

• Country code lock: Supported
• Static channel and power configuration: Supported
• Auto channel and power configuration: Supported
• Auto transmission rate adjustment: Supported
• Coverage hole detection and correction: Supported
• Load balancing: Based on traffic, user & frequency (dual-frequency supported)
• Intelligent load balancing: Supported
• Band steering: Improve service quality by prioritizing access to 5G frequency bands for wireless clients
• AP load balancing group: Auto-discovery and flexible setting

Security

• Static and dynamic blacklist, White list: Supported
• Rogue AP detection: SSID based, BSSID, device OUI
• Rogue AP countermeasure: Supported
• Flooding attack detection, Spoof attack detection, Weak IV attack detection: Supported
• WIPS: 7-layer mobile security

Layer 2 Protocol

• ARP (gratuitous ARP), 802.1p, 802.1q, 802.1x: Supported

IP Protocol

• IPv4, Native IPv6: Supported
• IPv6 SAVI, IPv6 Portal: Supported
• NTP, DHCP Server (IPv4, IPv6): Supported

Multicast

• MLD Snooping, IGMP Snooping: Supported
• Multicast group: 256
• Multicast enhancement: Convert multicast data into unicast data for transmission, reducing network congestion
• Multicast to Unicast (IPv4, IPv6): Set unicast limit based on operating environment

Redundancy

• 1+1 hot backup: Supported Cloud Cluster
• N+1 backup, Dual-link backup: Supported
• Intelligent AP sharing among ACs: Supported
• Remote AP: Supported

Management and Deployment

• Network management: WEB, SNMP v1/v2c/v3, RMON
• Network deployment: WEB, CLI, Telnet, FTP
• WiFi location: BLE location, RSSI location

Green Features

• Scheduled shutdown of AP RF interface and wireless service: Supported
• Per-packet power adjustment (PPC): Supported

WLAN Application

• RF Ping, Remote probe analysis, RealTime Spectrum Guard (RTSG), Wireless Intelligent Application Aware (WIAA): Supported
• Packet forwarding fairness adjustment, 802.11n packet forwarding suppression, Access based traffic shaping: Supported
• Co-AP channel sharing, Co-AP channel reuse: Supported
• RF interface transmission rate adjustment algorithm, Drop wireless packet with weak signal, Disable user access with weak signal, Disable multicast packet caching, Status blink (limited to some AP): Supported

Smart O&M Feature

• Smart O&M Card (Expansion Module)
  • Network Information Visualization
  • Hierarchical Account Management
  • Realtime Monitoring of Running Status of Devices on Whole Network
  • Built-in Authentication Server and Multiple Local Authentication Mode
  • Operation and Maintenance Data Localization, Effectively Protect User Data Security
  • Long Term Storage of O&M Information and Logging
  • One-Click Diagnosis to Automatically Discover Configuration and Network Faults and Provide Troubleshooting Suggestions
  • Self-healing, for Common Wireless Problems, and Auto Optimization

New Added Features

• Policy forwarding, VLAN pool, Bonjour gateway: Supported
• BYOD: Identifies device types according to the OUI in the MAC address, the user agent (UA) field in an HTTP packet, and DHCP Option information
• 802.11w, 802.11k, 802.11v, 802.11r, Hotspot 2.0 (802.11u): Supported
• NAT, VPN: Supported
