Cisco Wireless LAN Assesssories รุ่น MA-INJ-6

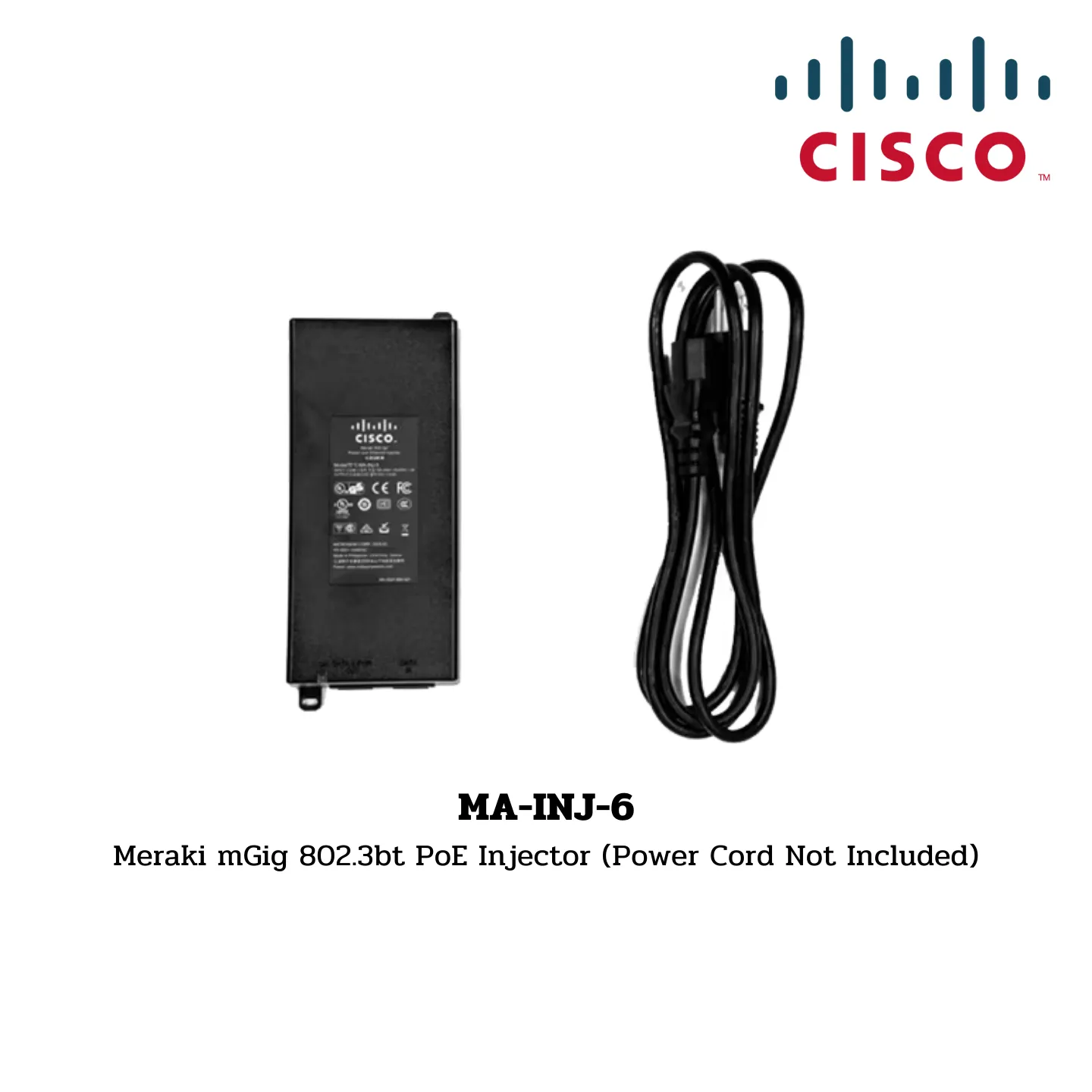

MA-INJ-6
Meraki mGig 802.3bt PoE Injector (Power Cord Not Included)

Specifications

Product Highlights:

• Reduces cost and simplifies installations by eliminating the need to provide separate power lines
• Increases installation flexibility by powering devices from up to 100 meters away
• Fully IEEE 802.3bt standard compliant
• Supports 10/100/1000BASE-T and 10 Gbps Multigigabit Ethernet
• Power, load detection, and fault diagnostics LEDs

Power Specifications:

• Input Voltage: 100 to 240 VAC
• Maximal Input Current:
  • 2.0A (RMS) @ 90VAC Max Load
  • 1.2A (RMS) @ 240VAC Max Load
• AC Input Frequency: 50-60 Hz
• Output Voltage: 55 VDC
• Maximum Output Power: 60W
• Powered device can be up to 100m away from the power injector (depending on the quality of the cable and external factors)

Data Compatibility:

• Compatible with Ethernet 10/100/1000/2500/5000/10000 Multigigabit Ethernet (10Gb)

Environmental Conditions:

• Operating Temperature: -10 to 60 °C (14 to 140°F)
• Storage Temperature: -20 to 65 °C (-4 to 149°F)
• Operating Humidity: Maximum 90%

Additional Features:

• Short-circuit protection

Physical Dimensions:

• Dimensions: 163.25 mm (6.4″) * x 65 mm (2.5″) x 40 mm (1.5″)
  • 163.25 mm (6.4″) includes the mounting ears on opposite corners of the injector
• Weight: 312 g (11 oz)

Mounting:

• Mounts to walls (anchors and screws not included)

Compatibility:

• Complies with IEEE 802.3bt standard
• Backward compatibility with 802.3af and 802.3at devices

LED Indicators:

• Input Power
• Detected/Connected to Valid 802.3bt Load
• Power and Load Detection Diagnostic LEDs
  • Solid Green: Detection/Connection Valid & Output “ON”
  • Blink Amber (short, slow): Waiting for a Valid Connection/Detection
  • Blink Amber (long, fast): Fault Condition
  • Blink Amber & Green: Detection Invalid

Regulatory Compliance:

• FCC Part 15 Class B
• EN55022 Class B
• EN55024, EN55032
• CE, VCCI
• UL 60950-1, UL 62368

Ordering Information:

• MA-INJ-6: Meraki Multigigabit 802.3bt Power over Ethernet Injector world-wide unit

SKUs for the power cords (1.8m (6 feet) long):

• MA-PWR-CORD-US (USA plug)
• MA-PWR-CORD-UK (United Kingdom plug)
• MA-PWR-CORD-CN (China plug)
• MA-PWR-CORD-IN (India plug)
• MA-PWR-CORD-EU (EU plug)
• MA-PWR-CORD-BR (Brazil plug)
• MA-PWR-CORD-AR (Argentina plug)
• MA-PWR-CORD-AU (Australia plug)
• MA-PWR-CORD-JP (Japan plug, SKU no longer active, same as US cord)
• MA-PWR-CORD-TW (Taiwan plug)
