JL685A

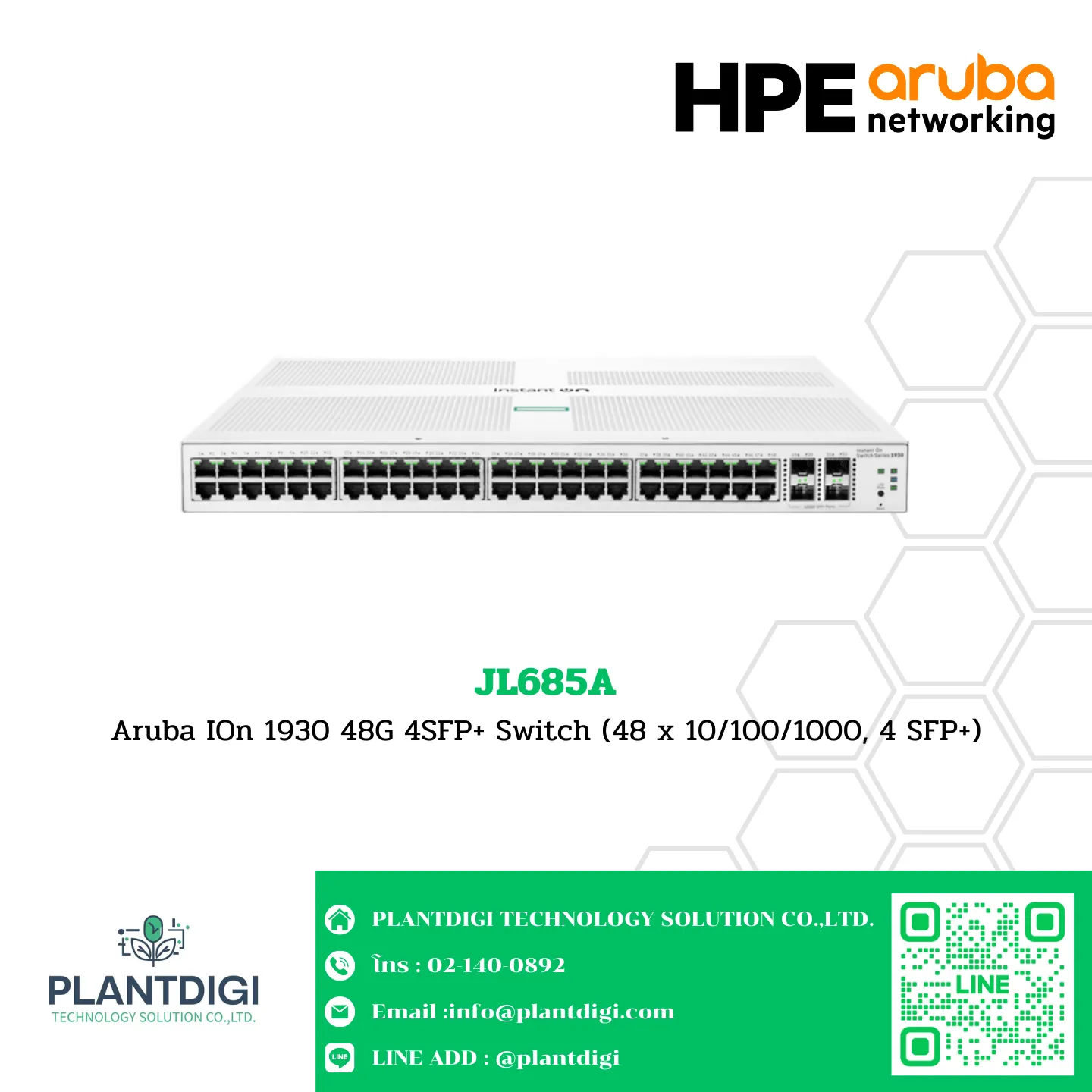

Aruba IOn 1930 48G 4SFP+ Switch (48 x 10/100/1000, 4 SFP+)
Overview
The HPE Networking Instant On Switch 48p Gigabit 4p SFP+ 1930 is an advanced, smart-managed, fixed-configuration Gigabit switch designed for small businesses. It is easy to deploy, secure, and affordable, offering “anywhere, anytime” configuration and management through the Instant On mobile app or cloud-based web portal. The device can also be managed locally through the web GUI.
Specifications
Model:
- JL685A
Ports:
- 48 RJ-45 10/100/1000 ports
- 4 SFP 1/10GbE ports
Switching Capacity:
- 176 Gbps
Throughput:
- 130.95 Mpps (maximum)
Memory and Processor:
- ARM Cortex-A9 @ 800 MHz
- 512 MB SDRAM, 256 MB flash
- 1.5 MB packet buffer
Power Consumption:
- Maximum: 36.9 W
- Idle: 16.8 W
Input Voltage:
- 100 – 127 / 200 – 240 VAC
Management Features:
- Aruba Instant On Portal
- Web browser
- SNMP Manager
Warranty:
- Limited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration
Weight:
- 3.13 kg (6.91 lb)
Dimensions:
- 4.39 x 44.25 x 28.24 cm (1.73 x 17.42 x 11.12 in)
Key Features
- Advanced and Smart-Managed: Designed for small businesses with evolving networking demands.
- Easy Deployment: Secure and affordable, with simple setup using the Instant On mobile app or cloud-based web portal.
- Flexible Management: Manage the device through the Instant On Portal, web browser, or SNMP Manager.
- Energy Efficient: Low power consumption with a maximum of 36.9 W and idle at 16.8 W.
- Robust Performance: Provides high switching capacity and throughput for reliable network performance.
- Enhanced Connectivity: Includes 48 RJ-45 10/100/1000 ports and 4 SFP 1/10GbE ports for versatile connectivity options.
